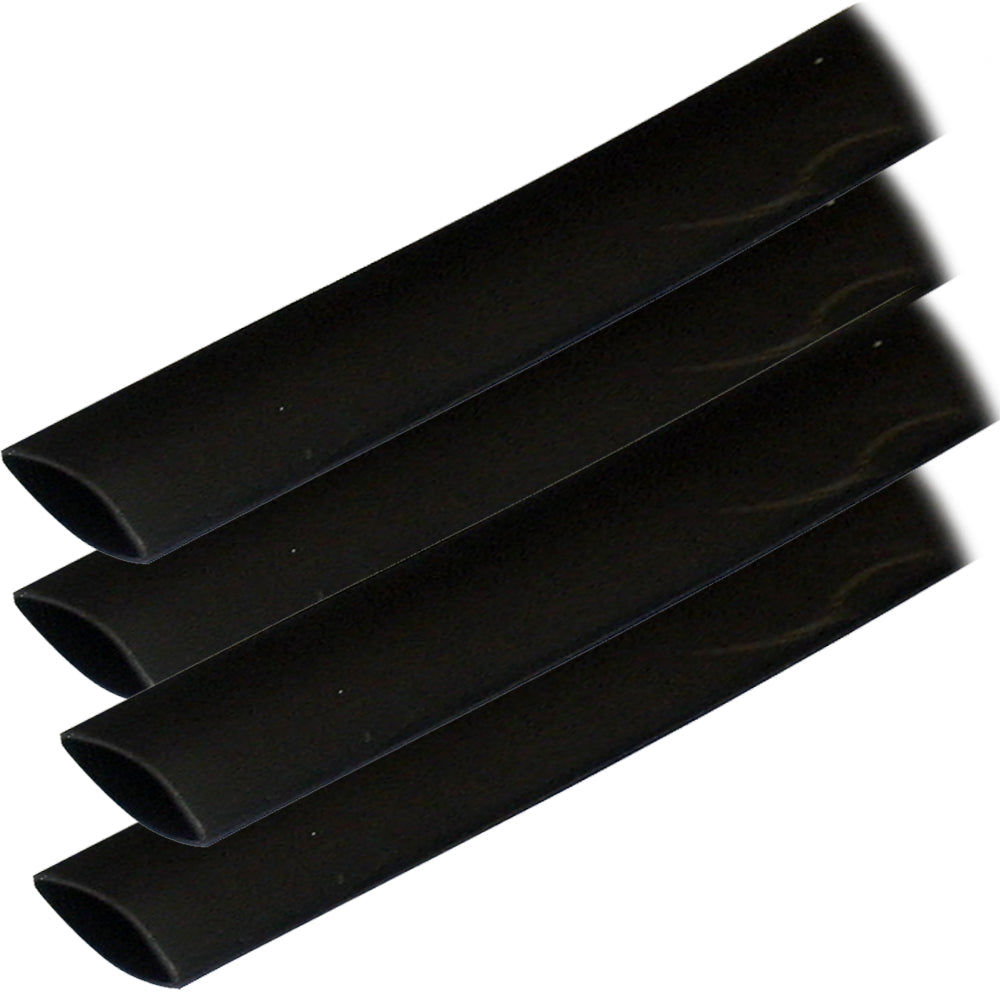

Ancor 306106 Adhesive Lined Heat Shrink Tubing, 3/4 inch x 6 inch, 4-Pack, Black

Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 6" - 4-Pack - Black

Package of 4 Black 6"(15.2cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)

Wire Range: 8-2/0 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 306106 adhesive lined heat shrink tubing offers a reliable solution for wire insulation and protection in demanding environments. Each package includes four sections of black tubing, measuring 6 inches in length with a 3/4 inch diameter that shrinks to approximately 1/4 inch. Designed for wire ranges from 8 to 2/0 AWG, this tubing is ideal for marine, automotive, and industrial applications requiring durable insulation and strain relief. The cross-linked polyolefin construction provides superior strength compared to PVC, ensuring longevity and safety. Its heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, making it suitable for harsh conditions. The tubing shrinks at 257°F (125°C) with the highest shrink ratio—reducing to one-third of its original size—ensuring tight and secure insulation. Operating within a temperature range of -40°C to 110°C, it maintains performance across a wide spectrum of environmental conditions. UL 224 certification confirms its compliance with safety standards. This heat shrink tubing is a dependable choice for protecting electrical connections and wiring harnesses, providing both insulation and strain relief in challenging environments. Its easy installation and robust sealing capabilities help prevent corrosion, water intrusion, and mechanical damage, ensuring the longevity and reliability of your electrical systems.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining ensures an impervious seal against salt water, oil, acids, and sunlight, while providing strain relief

• Highest shrink ratio—shrinks to approximately one-third of its original size

• Shrinks at 257°F (125°C) for secure application

• Operates effectively within a temperature range of -40°C to 110°C

• UL 224 certified for safety and reliability
