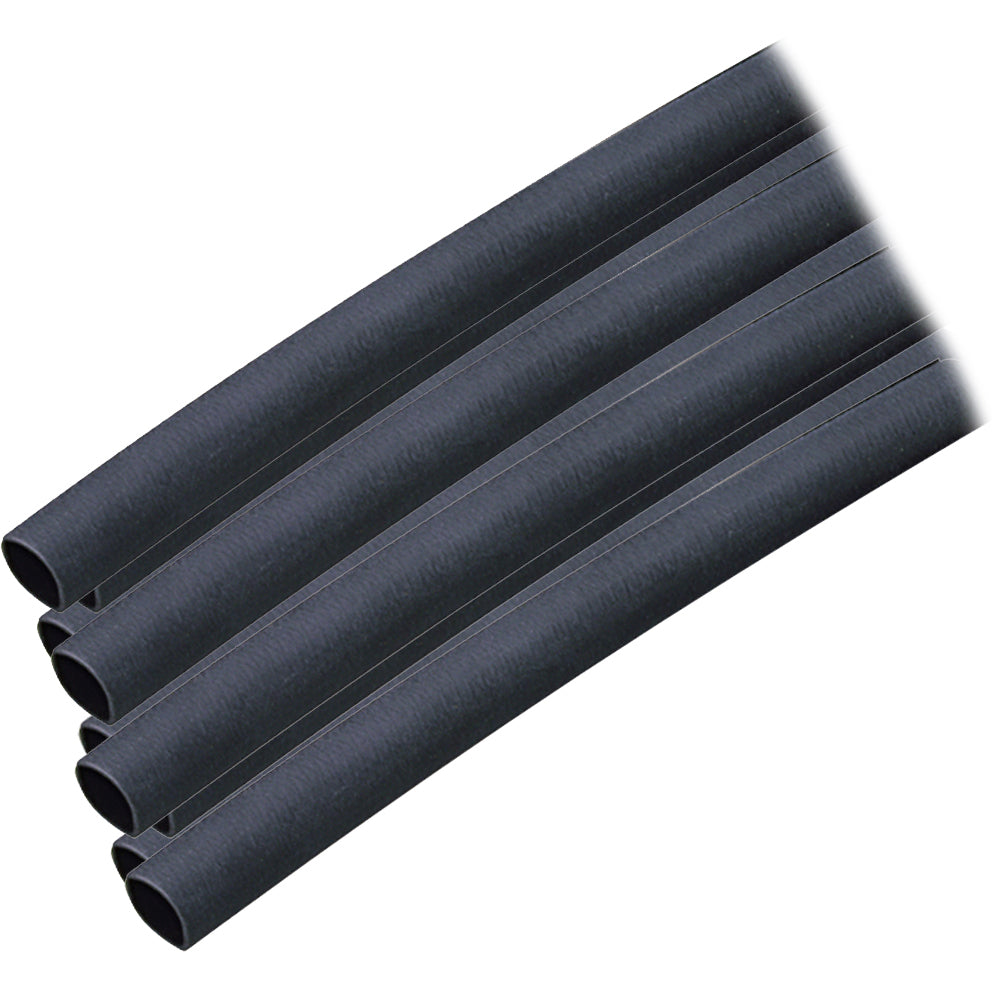

Ancor 60049 Adhesive Lined Heat Shrink Tubing, 1/4 inch x 12 inches, Black, 10-Pack

Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 12" - 10-Pack - Black

Package of 10 Black 12"(30.5cm) long sections with a 1/4"(6.4mm) diameter
that shrinks to 5/64"(2mm)

Wire Range: 16-10 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 60049 Adhesive Lined Heat Shrink Tubing offers a reliable solution for protecting and insulating electrical connections. Each package includes 10 sections of black heat shrink tubing, measuring 12 inches in length with a 1/4 inch diameter that shrinks down to 5/64 inch. Designed for use with wire ranges from 16 to 10 AWG, this tubing provides a secure, sealed insulation for various wiring applications. Its cross-linked polyolefin construction is much stronger than standard PVC tubing and does not burn like PVC, ensuring enhanced durability and safety in demanding environments. The heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and sunlight, while also providing strain relief to prevent mechanical damage to the wire connections. The tubing exhibits a high shrink ratio, reducing to one-third of its original size when heated to 257°F (125°C), making it suitable for tight-fitting applications. With an operational temperature range from -40°C to 110°C, it performs reliably in extreme conditions. UL 224 certified, this heat shrink tubing meets rigorous safety standards, ensuring peace of mind during installation and use. The combination of robust material properties and adhesive lining makes this product ideal for marine, automotive, and industrial electrical projects where protection and longevity are crucial. Properly applied, it enhances the integrity of electrical systems by providing excellent insulation, strain relief, and environmental resistance. The Ancor heat shrink tubing is a dependable choice for professional installers and DIY enthusiasts seeking high-quality cable protection solutions.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resists burning

• Heat-activated adhesive lining creates an impervious seal against water, oil, acids, and sunlight

• High shrink ratio reduces tubing to one-third of original size for tight fit

• Shrinks at 257°F (125°C) for quick and effective application

• Operational temperature range from -40°C to 110°C ensures performance in extreme conditions

• UL 224 certified for safety and quality
