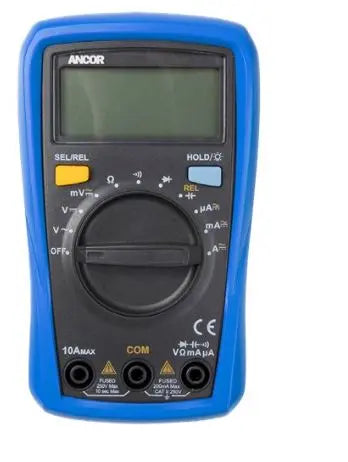

Ancor 8 Function Digital Multimeter

Ancor 8 Function Digital Multimeter

Ancor 8 Function Digital

Multimeter

• Auto ranging capability allows the meter to automatically determine the resolution based on the application


• Clear LCD display


• Lighweight, ergonomic design


• Comfortable protective cover, with test lead hanging groove


• Loud buzzer sound


• Batteries: two AAA Batteries (not included)


• Continuity


• Diode Test

DC Voltage (V)
200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V

AC Voltage (V)
200.0mV, 2000mV/2.000V, 20.00V, 200.0V, 250V

DC Current (A)
200.0uA, 2000uA, 20.00mA, 200.0mA. 2.000A, 10.00A

AC Current (A)
200.0uA, 2000uA, 20.00mA, 200.0mA, 2.000A, 10.00A

Resistance
200.0 2000/2.00k, 20.00k, 200.0k, 20.00M, 200.0M

Capacitance (F)
2.000nF, 20.00nF, 2000.0nF, 2.000uF, 20.00uF, 200.0uF, 2.000mF

Overload Protection
250V rms

CAT Rating
CA II 250V
