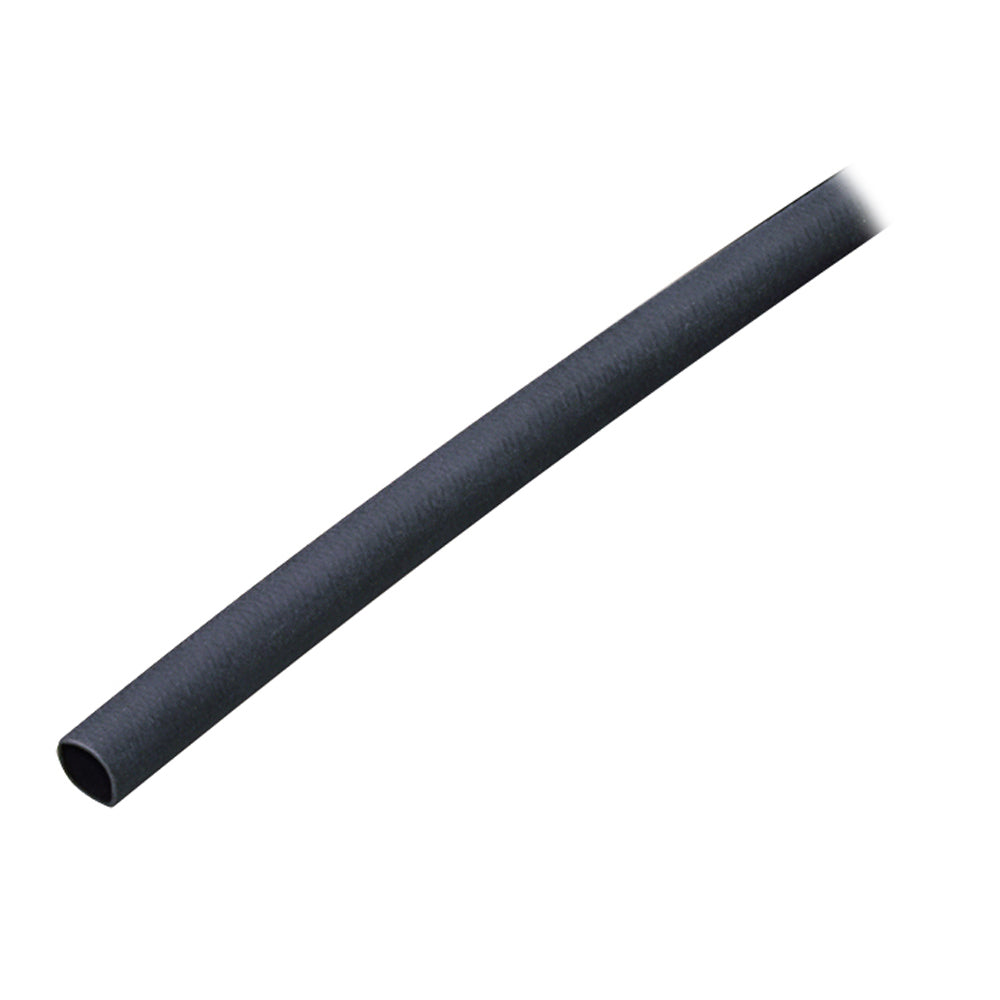

Ancor Adhesive Lined Heat Shrink Tubing 3/16 inch x 48 inch Black, Part 302148

Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 48" - 1-Pack - Black

Package of 1 Black 48"(122cm) long sections with a 3/16"(4.8mm) diameter that shrinks to 1/16"(1.6mm)

Wire Range: 20-12 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Adhesive Lined Heat Shrink Tubing (ALT) provides a reliable solution for wire insulation and protection, featuring a 3/16 inch diameter that shrinks to 1/16 inch. This high-quality tubing comes in a 48-inch length, ideal for a variety of electrical and marine applications. Made from cross-linked polyolefin, it offers superior strength compared to traditional PVC tubing and is resistant to burning, ensuring safety during installation and use. The heat-activated adhesive lining creates an impervious seal against salt water, oils, acids, and sunlight, while also providing strain relief to prevent wire damage. This makes it suitable for demanding environments where durability and protection are critical.

Designed to shrink at 257°F (125°C), the tubing achieves a high shrink ratio of up to 3:1, allowing it to tightly secure around wires and components. Its operating temperature range extends from -40°C to 110°C, making it versatile for various conditions without sacrificing performance. The tubing is UL 224 listed, ensuring compliance with safety standards for electrical insulation and protection. Whether for marine, automotive, or industrial wiring projects, this heat shrink tubing offers a dependable solution for insulation, sealing, and strain relief needs.

Note: This product contains chemicals including di(2-ethylhexyl)phthalate (DEHP), which may pose health risks. For detailed safety information, visit P65Warnings.ca.gov.

Features:

• Cross-linked polyolefin tubing provides greater strength and durability than PVC, with enhanced resistance to heat and flames.

• Heat-activated adhesive lining forms an impervious seal against salt water, oil, acids, and sunlight, while also offering strain relief.

• High shrink ratio of up to 3:1 enables the tubing to shrink from 3/16 inch to 1/16 inch diameter for a secure fit.

• Shrinks at 257°F (125°C), suitable for rapid installation and reliable insulation.

• Operating temperature range from -40°C to 110°C ensures performance in extreme environments.

• UL 224 listed for electrical safety and insulation standards.
