SKU:60058

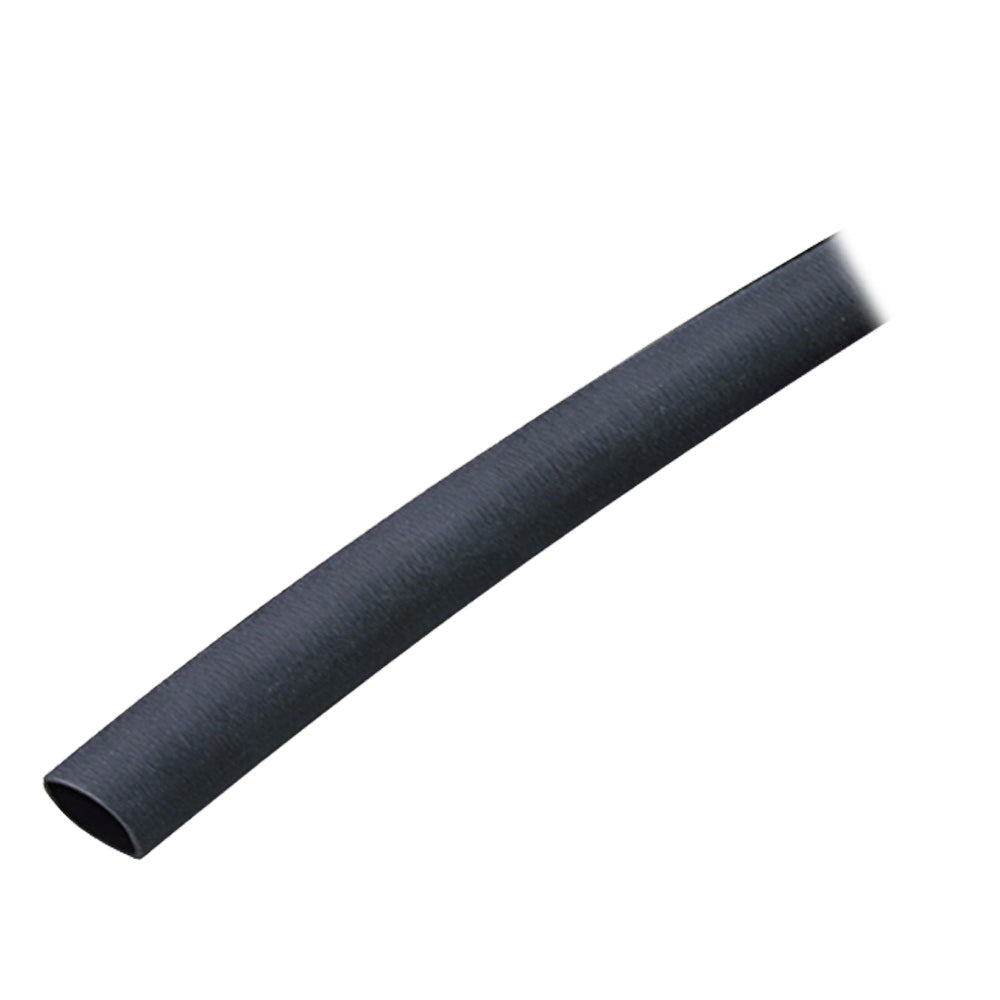

Ancor Adhesive Lined Heat Shrink Tubing 3/8 inch x 48 inches Black - Strong, Reliable Insulation for Marine and Automotive Applications

Ancor Adhesive Lined Heat Shrink Tubing 3/8 inch x 48 inches Black - Strong, Reliable Insulation for Marine and Automotive Applications

Regular price $9.99 USD
Sale price $9.99 USD Regular price
Sale Sold out
Shipping calculated at checkout.
Adhesive Lined Heat Shrink Tubing (ALT) - 3/8" x 48" - 1-Pack - Black

Package of 1 Black 48"(122cm) long sections with a 3/8"(9.5mm) diameter that shrinks to 1/8"(3.2mm)

Wire Range: 12-8 AWG

Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257F / 125C
  • Operating temperature range of -40C to 110C
  • UL 224

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Adhesive Lined Heat Shrink Tubing (ALT) offers a durable and secure solution for insulating and protecting electrical connections. Measuring 3/8 inch in diameter and 48 inches long, this black tubing is designed to shrink to approximately 1/8 inch when heated, providing a tight seal around wires and cables. Its optimal wire range of 12-8 AWG makes it suitable for a variety of marine, automotive, and industrial applications. The cross-linked polyolefin construction ensures greater strength and heat resistance compared to standard PVC tubing, making it less prone to tearing or melting under demanding conditions. The heat-activated adhesive lining bonds firmly to the wire surface, creating an impervious seal that resists saltwater, oil, acids, and sunlight, thereby enhancing the longevity and reliability of electrical systems. This tubing's high shrink ratio—shrinking to one-third of its original size—ensures a snug fit that provides strain relief and environmental protection. It shrinks efficiently at 257°F (125°C) and operates within a temperature range from -40°C to 110°C, making it suitable for both high and low-temperature environments. UL 224 certification confirms compliance with safety standards, ensuring dependable performance across various applications. Whether used in marine, automotive, or industrial wiring projects, this heat shrink tubing provides a professional-grade solution for insulation, sealing, and strain relief needs. Its robust design and reliable adhesive lining make it an essential component for maintaining secure and protected electrical connections in harsh conditions.

Features:

  • Cross-linked polyolefin tubing provides superior strength and heat resistance over PVC alternatives
  • Heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and sunlight, while offering strain relief
  • High shrink ratio of 3:1 ensures a tight fit around wires and cables
  • Shrinks at 257°F (125°C) for quick and effective application
  • Operates within a temperature range of -40°C to 110°C for versatile use
  • UL 224 certified for safety and reliability
