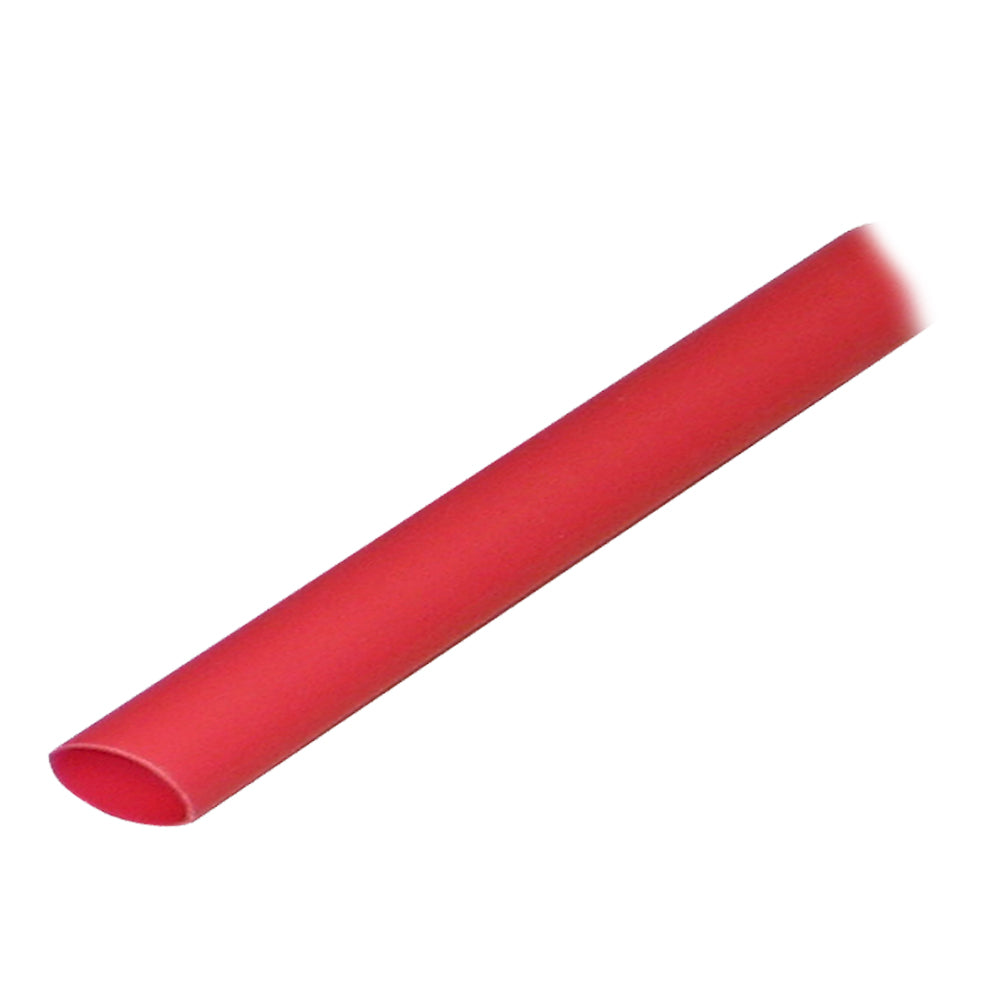

Ancor Adhesive Lined Heat Shrink Tubing 3/8 inch x 48 inches, Red, Part 304648

Adhesive Lined Heat Shrink Tubing (ALT) - 3/8" x 48" - 1-Pack - Red

Package of 1 Red 48"(122cm) long sections with a 3/8"(9.5mm) diameter that shrinks to 1/8"(3.2mm)

Wire Range: 12-8 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC

• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief

• Highest shrink ratio - shrinks to 1/3 original size

• Shrinks at 257F / 125C

• Operating temperature range of -40C to 110C

• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Adhesive Lined Heat Shrink Tubing (ALT) offers a reliable solution for insulating and protecting electrical connections in demanding environments. Each pack includes a 48-inch section of red heat shrink tubing with a diameter of 3/8 inch that shrinks down to 1/8 inch, making it suitable for wire ranges from 12 to 8 AWG. Designed with cross-linked polyolefin, this tubing surpasses traditional PVC in strength and durability, providing resistance to burning and melting under high temperatures. The heat-activated adhesive lining ensures an impervious seal against elements such as salt water, oil, acids, and sunlight, while also offering strain relief to prevent wire damage over time. This tubing exhibits a high shrink ratio, reducing to approximately one-third of its original diameter when heated to 257°F (125°C), ensuring a snug fit for various applications. With an operational temperature range from -40°C to 110°C, it maintains performance under extreme conditions. Compliant with UL 224 standards, the Ancor heat shrink tubing is a dependable choice for marine, automotive, and industrial wiring projects, providing both insulation and protection in harsh environments. Note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks; please refer to the provided safety warnings and information links for proper handling and disposal guidelines.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against moisture, oils, and chemicals

• Highest shrink ratio, shrinking to approximately one-third of original size

• Shrinks at 257°F (125°C) for secure application

• Operates effectively within a temperature range of -40°C to 110°C

• UL 224 compliant for safety and quality standards
