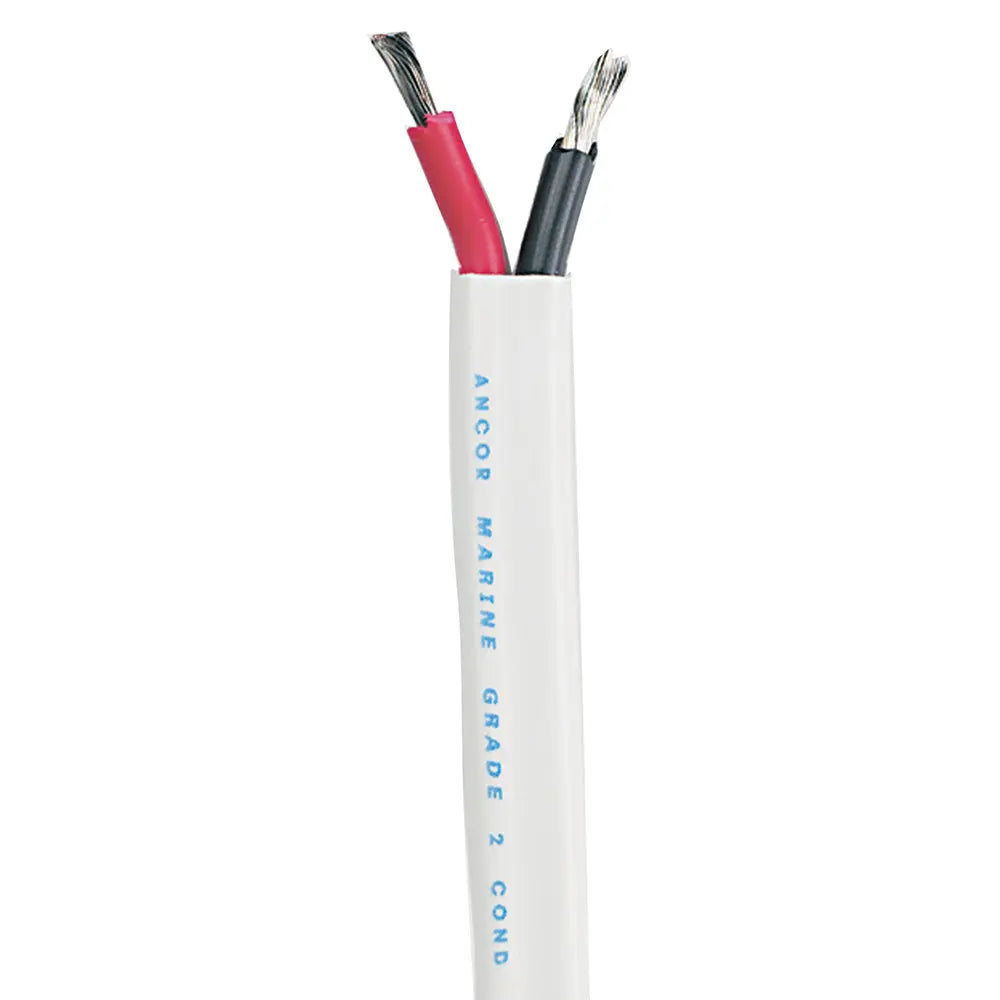

Ancor Standard Duplex Flat 16/2 AWG Marine Grade Cable - Red and Black, Sold by the Foot

Standard Duplex Cable - Flat 16/2 AWG - 2 x 1mm Red/Black -Sold by the Foot

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 Volts, 105C dry and 75C wet, stays flexible even in extreme cold (-40F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

The Ancor Standard Duplex Cable, part number 1217-FT, offers durable and reliable wiring suited for marine environments. Crafted with premium vinyl insulation rated at 600 volts, this flat 16/2 AWG cable features two conductors—red and black—each approximately 1mm in diameter, ideal for power and control applications. Its construction adheres to stringent standards such as UL 1426, ABYC, and US Coast Guard CFR Title 46, ensuring it meets the high demands of marine use. The cable’s ultra-flexible (Type 3) tinned copper conductors provide superior protection against corrosion, electrolysis, and fatigue caused by vibration and frequent flexing. The vinyl insulation remains flexible even in extreme cold temperatures as low as -40°F/C, and offers excellent resistance to salt water, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation, making it suitable for harsh marine conditions. This cable is sold by the foot, allowing precise length customization for your installation needs. Whether for wiring boats, RVs, or other outdoor equipment, the Ancor duplex cable provides a robust, long-lasting connection with easy handling and installation. Its rugged design ensures dependable performance in demanding environments, helping to maintain electrical integrity and safety over time.

Features:

• Premium vinyl insulation rated at 600 volts, 105°C dry and 75°C wet

• Ultra-flexible (Type 3) tinned copper conductors for maximum corrosion resistance

• Resists salt water, battery acid, oil, gasoline, heat, abrasion, and UV radiation

• Flexible in extreme cold temperatures down to -40°F/C

• Sold by the foot for customizable length needs
