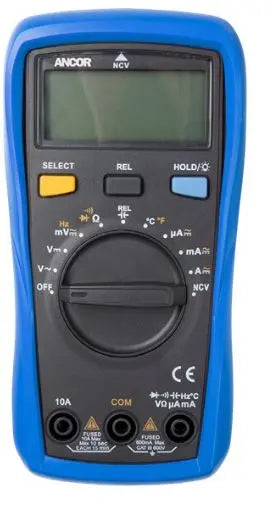

Ancor True RMS 12 Function Digital Multimeter

Ancor True RMS 12 Function Digital Multimeter

Ancor True RMS 12 Function

Digital Multimeter

• Auto ranging capability allows the meter to automatically determine the resolution based on the application


• Clear LCD display


• Comfortable protective cover, with test lead hanging groove


• High voltage warning


• Auto power off functionality to save battere life


• Batteries: two AAA Batteries (not included)


• Continuity


• Diode Test


• NCV

DC Voltage (V)
600.0mV, 6000mV/6.000V, 60.00V, 600.0V

AC Voltage (V)
600.0mV, 6000mV/6.000V, 60.00V, 600.0V

DC Current (A)
600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A

AC Current (A)
600.0uA, 6000uA, 60.00mA, 600.0mA, 6.000A, 10.00A

Resistance
600.0, 6000/6.000k, 60.00k, 600.0k, 60.00M

Capacitance (F)
9.999nF, 99.99nF, 999.9nF, 9.999uF, 99.99uF, 999.9uF, 9.999mF

Frequency (Hz)
10.00Hz-1.000MHz

Temperature (°F)
-40°F to 1832°F

Temperature (°C)
-40°C to 1000°C

Overload Protection
600V rms

CAT Rating
CAT 111 600V
