SKU:76496

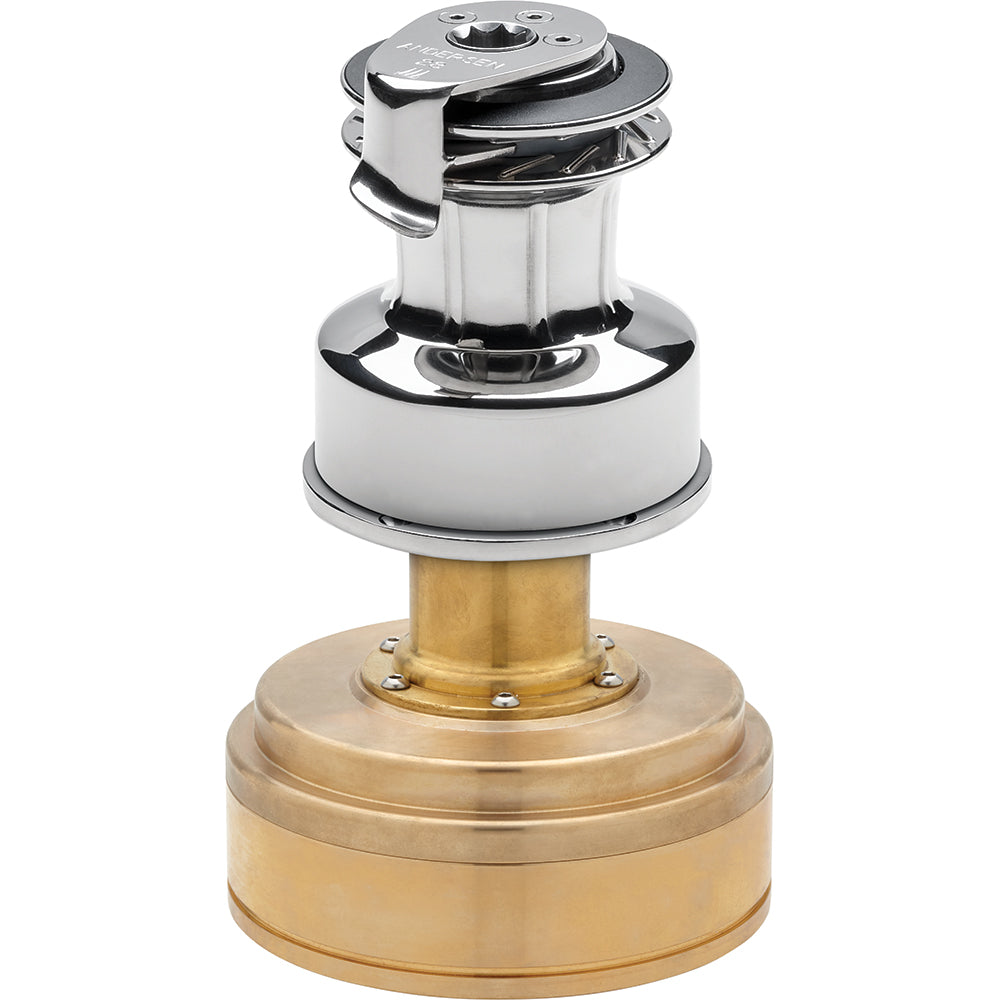

40ST Compact Below Deck Electric Full Stainless Winch Variable Speed - 12V
Andersen Compact Motor electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines.
Ease of installation
The Andersen Compact Motor electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.
Efficient, variable speed
The Andersen Compact Motor is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.
Illuminated "intelligent" push button
Compact Motor winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.
Built-in protection
- Integrated overload protection - The controller is pre-set to stop the winch if the maximum pull load is exceeded. Operation can resume within a few seconds when the load returns below the limit.
- Thermal overload protection - The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.
As with all ANDERSEN Winches, our Compact Motor Electric Winch features the exclusive stainless steel Power Rib drum for maximum power and extended line life. This model also uses our exclusive self-tailing device that automatically accommodates a wide range of different line sizes.
Specifications
The Andersen 40ST Compact Below Deck Electric Winch offers reliable power and ease of operation for sailing enthusiasts and marine professionals. Equipped with a full stainless steel Power Rib drum, this winch ensures maximum durability, enhanced line grip, and extended line life, making it ideal for demanding marine environments. Its compact design allows for straightforward installation below deck, with an integrated motor gearbox and controller that eliminate the need for extra control boxes, simplifying electrical wiring to just positive and negative power connections and a push button control.
Designed for efficiency, this brushless DC motor is carefully matched to a low profile planetary gearbox, providing smooth, quiet, and variable speed operation in response to push button pressure. Available in 12V and 24V models, it consumes less current than traditional configurations, making it energy-efficient and suitable for various vessel sizes. The winch's intelligent push button features an integrated LED indicator that lights up when powered and includes a hinged safety cover for secure operation. The push button also communicates system status through flashing codes, aiding in troubleshooting overloads or system protections.
Safety features include built-in overload protection, which automatically stops the winch if the maximum pull load is exceeded, and thermal overload protection that disables the motor if overheating occurs, with automatic reset once cooled. The self-tailing device accommodates a wide range of line sizes, simplifying line handling and reducing crew effort. Its robust construction, combined with easy installation and maintenance, makes the Andersen 40ST a dependable choice for marine applications, delivering precise sail trimming and line control with minimal effort and maximum safety.Specifications such as drum size, line capacity, and weight are optimized for versatile marine use, with a line entry suitable for lines ranging from 5/16 to 9/16 inches in diameter. The winch's compact dimensions ensure compatibility with various vessel configurations, while its corrosion-resistant materials guarantee longevity in harsh marine environments.Whether upgrading an existing system or installing a new one, the Andersen 40ST Compact Below Deck Electric Winch provides a high-performance, low-maintenance solution that enhances sailing efficiency and safety. Its combination of advanced features and rugged construction makes it an excellent addition to any vessel looking for reliable sail handling and line management.
Features:
