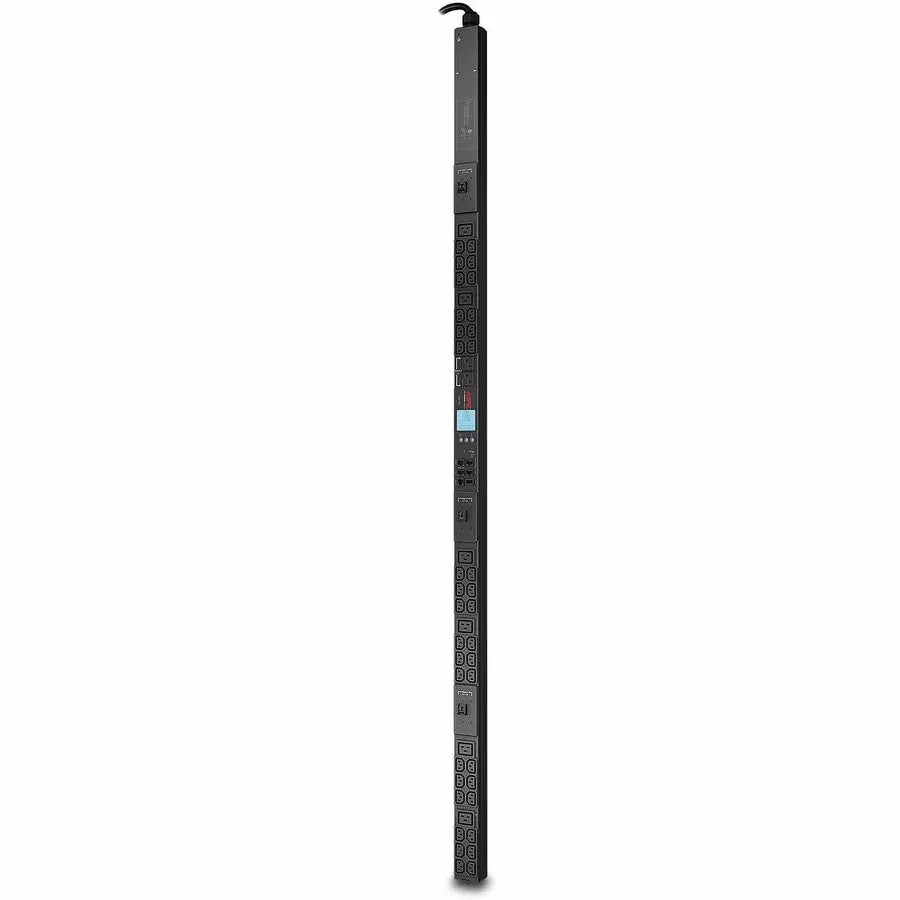

APC AP8865 Metered Rack PDU with 44 Outlets and Real-Time Monitoring

APC NetShelter Metered Rack PDU, 0U, 8.6kW, 208V, 3 phase, 30A, 36 C13, 6 C19 and 2 NEMA 5-20R outlets

The APC AP8865 Metered Rack PDU provides reliable power distribution for data centers, colocation facilities, and distributed IT environments. This 0U rack-mountable device features a NEMA L21-30P input plug with a 6-foot cord, enabling easy integration into existing power setups. Equipped with 44 outlets—including NEMA 5-20R, IEC 60320 C13, and C19 receptacles—it supports high-density equipment while maintaining efficient power management. The PDU's design allows for daisy-chaining up to four units on a single IP address, simplifying large-scale deployments.
Real-time remote monitoring is facilitated through the integrated EcoStruxure™ IT platform, providing insights into load, voltage, and energy consumption. The interactive LCD display allows local users to access current, real power, voltage, and energy measurements, aiding in capacity planning and preventing overloads. The device also includes embedded log memory that stores historical data, enabling detailed analysis and optimized energy usage. User-defined alarm thresholds help prevent circuit overloads, ensuring continuous operation and safeguarding critical equipment.
The APC AP8865 features secure network management with a dedicated card, supporting access via Web, SNMP, and CLI. Its environmental monitoring port, compatible with external temperature/humidity sensors, offers additional environmental control. The device's lockable IEC outlets reduce accidental disconnections, enhancing operational safety. Designed for ease of installation, it boasts a zero U toolless setup, reducing deployment time. The PDU operates efficiently in environments with ambient temperatures up to 140°F, making it suitable for demanding data center conditions. Backed by a two-year warranty, the APC AP8865 ensures long-term reliability and performance, making it an ideal solution for large-scale IT infrastructure needs.
Included with the unit are installation and safety guides, rack mounting brackets, and a serial configuration cable, providing everything necessary for quick deployment. Its environmentally friendly design complies with RoHS standards, reflecting a commitment to sustainable practices.

Features:

• Embedded log memory for detailed historical data analysis

• 5.9-foot power cord with a 2-year APC warranty

• Zero U toolless installation for quick setup

• Active power measurements including volts, amps, kW, and kWh

• One-year secure network management card subscription included

• Interactive LCD display for local measurement access

• Alarm threshold settings to prevent overloads

• Real-time remote load monitoring via EcoStruxure™ IT platform

• Capacity planning with +/- 3% metering accuracy for load balancing

• Supports daisy-chaining of up to 4 PDUs on a single IP address

• External environmental monitoring port for temperature/humidity sensors

• Lockable IEC outlets to prevent accidental disconnections

• Suitable for high-density data centers and distributed IT sites

• RoHS compliant and environmentally friendly design
