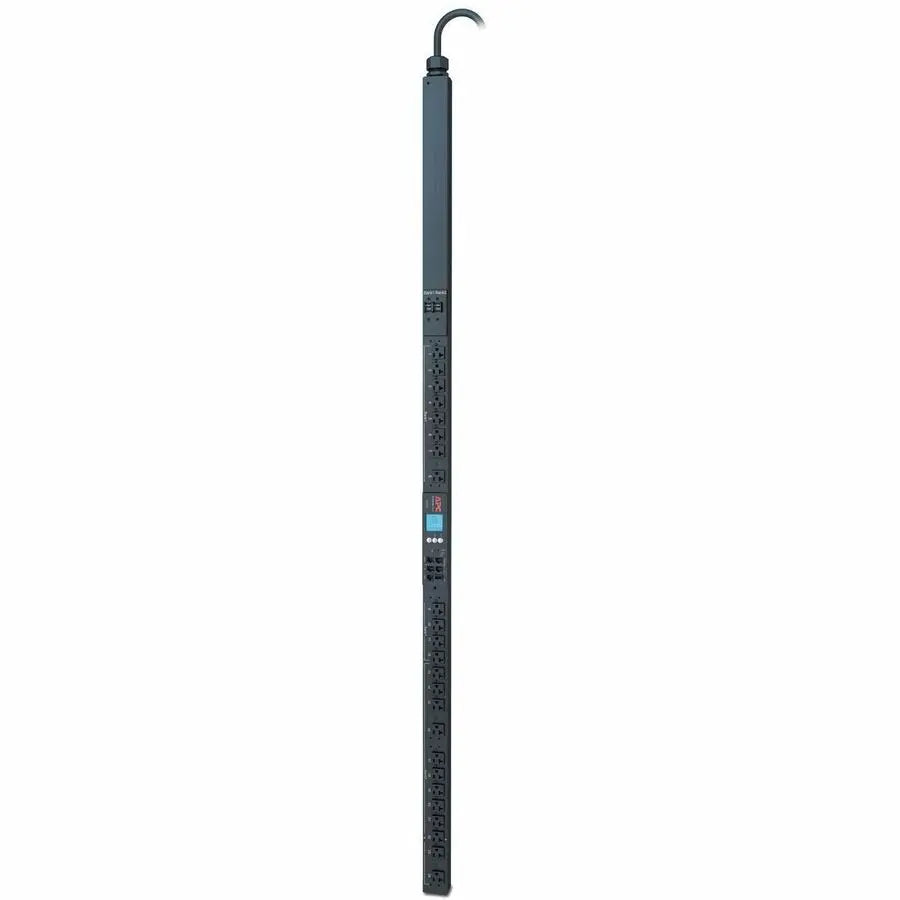

APC by Schneider Electric AP8932US NetShelter Switched Rack PDU with 24 Outlets

APC NetShelter Rack PDU, Switched, 0U, 2.9kW 100V-120V 30A, (24) NEMA 5-20R outlets

The APC by Schneider Electric AP8932US NetShelter Switched Rack PDU provides reliable power distribution and advanced management features ideal for data centers, colocation facilities, and distributed IT environments. This 0U rack-mountable PDU features a NEMA L5-30P input plug with a 9.51-foot cord, delivering power to 24 NEMA 5-20R outlets, supporting a maximum load suitable for demanding applications. The PDU's design enables remote control of individual outlets, facilitating power cycling, delayed power sequencing, and outlet use management to enhance operational efficiency and equipment uptime. Its robust environment tolerance allows operation in ambient temperatures up to 140°F, ensuring reliable performance even in high-temperature settings.

The integrated network management capabilities include a color user-interactive LCD interface that displays real-time measurements such as current, voltage, power, and energy consumption. The remote management features support access through Web interfaces, SNMP, and command line, enabling administrators to monitor and control power loads remotely and efficiently. The included Network Management Card enhances cybersecurity through secured interfaces and enforces modified password policies, providing a secure remote management environment. The PDU supports daisy-chaining up to four units on a single IP address, simplifying large-scale deployments.

Additional features include a temperature/humidity sensor port, locking IEC outlets compatible with locking power cords, low-profile circuit breakers, and a USB port for local firmware updates. The zero U, tool-less installation design allows for quick and easy setup, saving time during deployment. Perfectly suited for large data centers, colocation, or distributed IT sites, this PDU helps plan capacity, balance loads with high metering accuracy (+/- 3%), and monitor connected loads in real-time through EcoStruxure IT and other platforms. User-defined alarms alert administrators to potential circuit overloads, ensuring continuous operation and safety. Backed by a two-year limited warranty, the APC AP8932US NetShelter PDU combines advanced power management with ease of use and reliable performance.

Features:

• Ideal for colocation, large data centers, or distributed IT sites

• Remote management of rack PDUs for efficient time-saving

• Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)

• Real-time remote monitoring of connected load through EcoStruxure IT and other platforms

• Power sequencing delays determine the order in which power is turned on or off

• Stay on top of potential circuit overloads with user-defined alarms

• Zero U toolless installation
