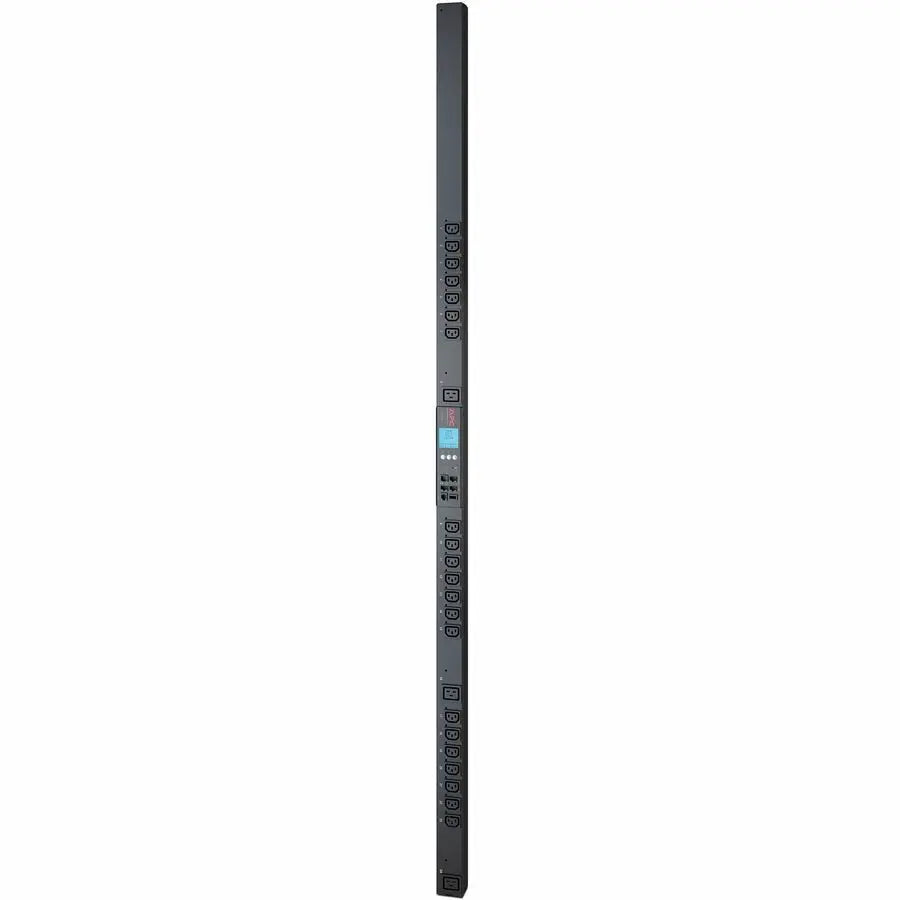

APC Schneider Electric AP8659NA3 Metered-by-Outlet Rack PDU with Switching and Remote Monitoring

APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 20A, 208V, 21 C13 and 3 C19 outlet

The APC Schneider Electric AP8659NA3 Metered-by-Outlet Rack PDU offers advanced power management features designed for data centers, colocation facilities, and large distributed IT environments. This rack-mountable, zero U device enables precise control and monitoring of individual outlets, ensuring optimized power distribution and system uptime. Its user-configurable alarms help prevent circuit overloads by warning operators before critical IT failures occur, facilitating proactive maintenance and reducing downtime.

Equipped with real-time power metering capabilities, the PDU provides detailed insights into connected loads, including amps, volts, kilowatts, and kilowatt-hours, with a high degree of accuracy. Its temperature and humidity sensor port allows for environmental monitoring, helping maintain optimal operating conditions. The locking IEC receptacles and lockable input power cord enhance security, preventing unauthorized access and accidental disconnections. Its plug-and-play design features a tool-less installation process, simplifying deployment within standard rack setups.

Remote management is streamlined through secure web interfaces, SNMP, and Telnet protocols, enabling remote configuration, control, and monitoring via EcoStruxure IT and other integrated platforms. The device allows users to define alarm thresholds and power sequencing delays, which help manage load distribution during startup or shutdown procedures. The device's environmentally friendly design adheres to RoHS standards and is free from single-use plastics, supporting sustainable practices. Overall, the APC Metered-by-Outlet Rack PDU combines flexibility, precision, and security to meet the demands of modern data centers and distributed IT infrastructure.

Features:

• User-defined alarms warn of potential circuit overloads before critical IT failures occur

• Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles

• Zero U toolless installation

• Stay on top by defining alarm thresholds in order to avoid overloaded circuits

• Real-time remote monitoring of connected load through EcoStruxure IT and other platforms

• Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
