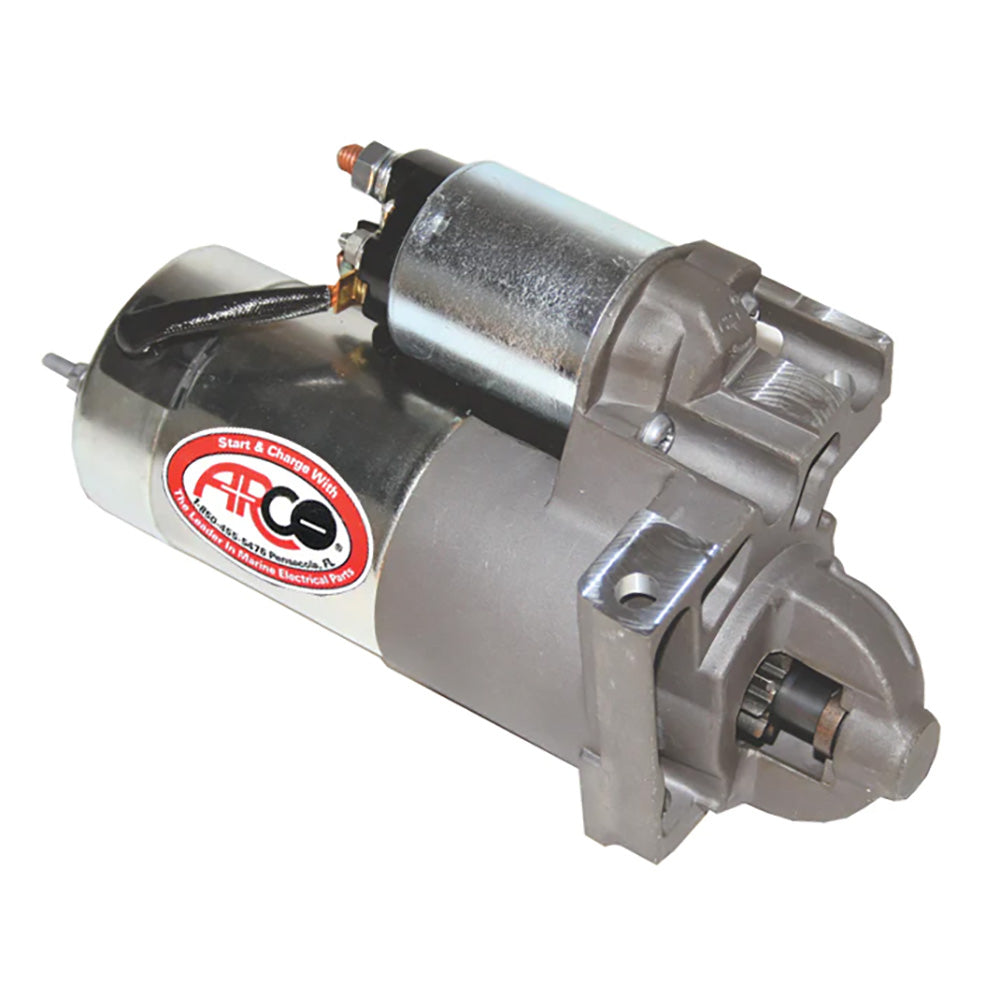

ARCO Marine Inboard Starter with 12-3/4 Inch Flywheel and Gear Reduction for Marine Engines

Inboard Starter with 12-3/4" Flywheel Gear Reduction

The inboard starter that will fit Mercruiser, Volvo Penta, OMC, Yamaha, and others. 12-3/4" flywheel. Clockwise Rotation. Will replace all CW rotating 10MT starters with one long and one short bolt straight across the pattern. Includes mounting bolts and gasket. Anodized casting, nickel-plated brush holder.

ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.

Features:

• Dynamically tested and packaged for out-of-the-box performance
• Nickel-coated and/or epoxy-painted to reduce corrosion
• Sealed to minimize water intrusion
• Designed for long life and optimum performance
• Armatures are tested to withstand 50 times operating voltages (12 volts)

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

BRP/ OMC Inboard Starter 381781
BRP/ OMC Inboard Starter 384198
BRP/ OMC Inboard Starter 981074
BRP/ OMC Inboard Starter 981078
BRP/ OMC Inboard Starter 982107
BRP/ OMC Inboard Starter 982121
BRP/ OMC Inboard Starter 982200
BRP/ OMC Inboard Starter 983248
BRP/ OMC Inboard Starter 983444
BRP/ OMC Inboard Starter 983790
BRP/ OMC Inboard Starter 985966
BRP/ OMC Inboard Starter 988217
BRP/ OMC Inboard Starter 3850526
BRP/ OMC Inboard Starter 3854750
BRP/ OMC Inboard Starter 3855882
BRP/ OMC Inboard Starter 3858463
DELCO Inboard Starter 9000763
DELCO Inboard Starter 9000820
DELCO Inboard Starter 9000822
MARINE POWER Inboard Starter 0172-000
MERCURY Inboard Starter 50-32703
MERCURY Inboard Starter 50-45120
MERCURY Inboard Starter 50-46282
MERCURY Inboard Starter 50-59799
MERCURY Inboard Starter 50-69863A1
MERCURY Inboard Starter 50-69864A1
MERCURY Inboard Starter 50-77328A1
MERCURY Inboard Starter 50-77328A3
MERCURY Inboard Starter 50-79821A2
MERCURY Inboard Starter 50-79822A1
MERCURY Inboard Starter 50-79822A2
MERCURY Inboard Starter 50-79823A1
MERCURY Inboard Starter 50-806963A2
MERCURY Inboard Starter 50-806963A4
MERCURY Inboard Starter 50-806965A2
MERCURY Inboard Starter 50-806965A4
MERCURY Inboard Starter 50-812429A2
MERCURY Inboard Starter 50-99417A2
PLEASURECRAFT Inboard Starter RA122016
VOLVOInboard Starter 3862308
VOLVO Inboard Starter 3854750-1
VOLVO Inboard Starter 3856003-3
VOLVO Inboard Starter 855326-5
SIERRA Inboard Starter 18-5900
SIERRA Inboard Starter 18-5911
SIERRA Inboard Starter 18-5919

The ARCO Marine Inboard Starter (Part Number: 30460) is engineered to deliver reliable starting power for a variety of marine engines, including Mercruiser, Volvo Penta, OMC, Yamaha, and others. Designed with a 12-3/4 inch flywheel, this starter features clockwise rotation and is compatible with all CW rotating 10MT starters, making installation straightforward with a long and short bolt pattern aligned across the mounting points. The starter includes mounting bolts and a gasket for ease of installation. Its anodized castings and nickel-plated brush holder provide increased durability and resistance to corrosion, ensuring long-term performance in marine environments.

ARCO advises maintaining a fully charged battery to prevent damage to the starter and solenoid, as well as cleaning all electrical connections to reduce resistance, which is essential for efficient starting. This starter is dynamically tested and packaged to ensure out-of-the-box performance, with features such as sealed construction to minimize water intrusion and tested armatures designed to withstand 50 times the operating voltage for added longevity.

This product is built for long life and optimal performance, making it suitable for recreational and commercial applications. It replaces numerous OEM part numbers from brands like BRP/OMC, Mercury, Volvo, Sierra, and others, providing a versatile solution for marine engine starters. When properly installed, ARCO Marine products are backed by a 12-month warranty for leisure use, with options to extend the warranty when registered within 30 days of purchase.

Trust ARCO Marine for durable, reliable, and corrosion-resistant starters that meet the demands of marine environments and provide dependable engine starts, whether on the water or in commercial settings. Overall, this starter offers a cost-effective and easy-to-install option for maintaining your boat’s engine performance and ensuring smooth starts every time.

Features:

• Dynamically tested and packaged for out-of-the-box performance

• Nickel-coated and epoxy-painted to reduce corrosion

• Sealed construction to minimize water intrusion

• Designed for long life and optimum performance

• Armatures tested to withstand 50 times operating voltage
