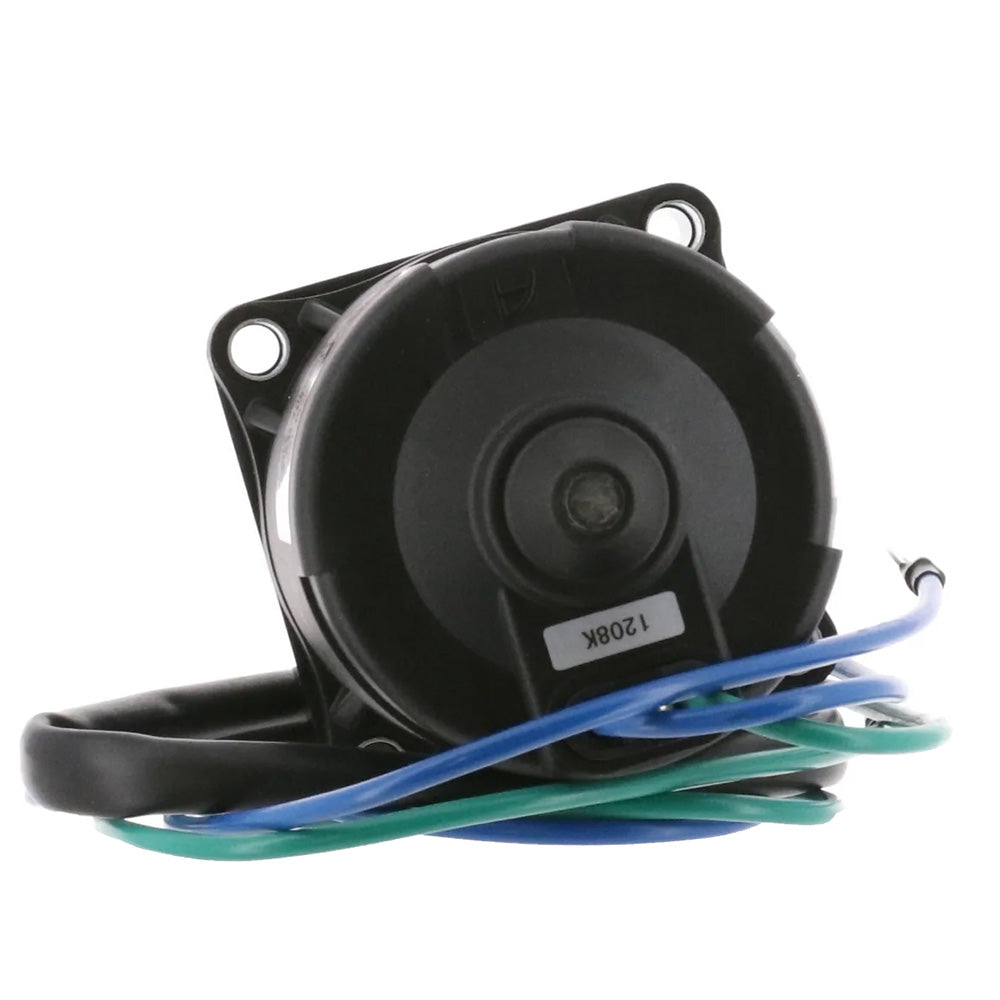

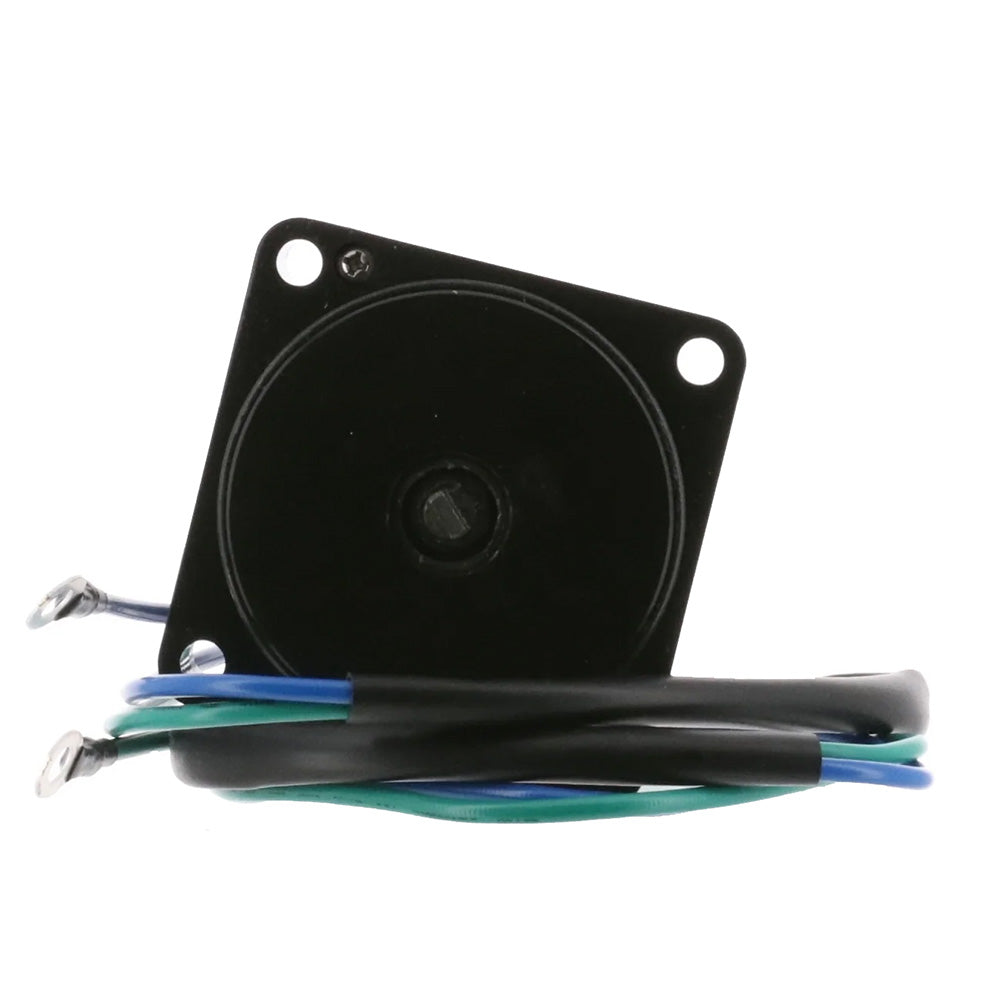

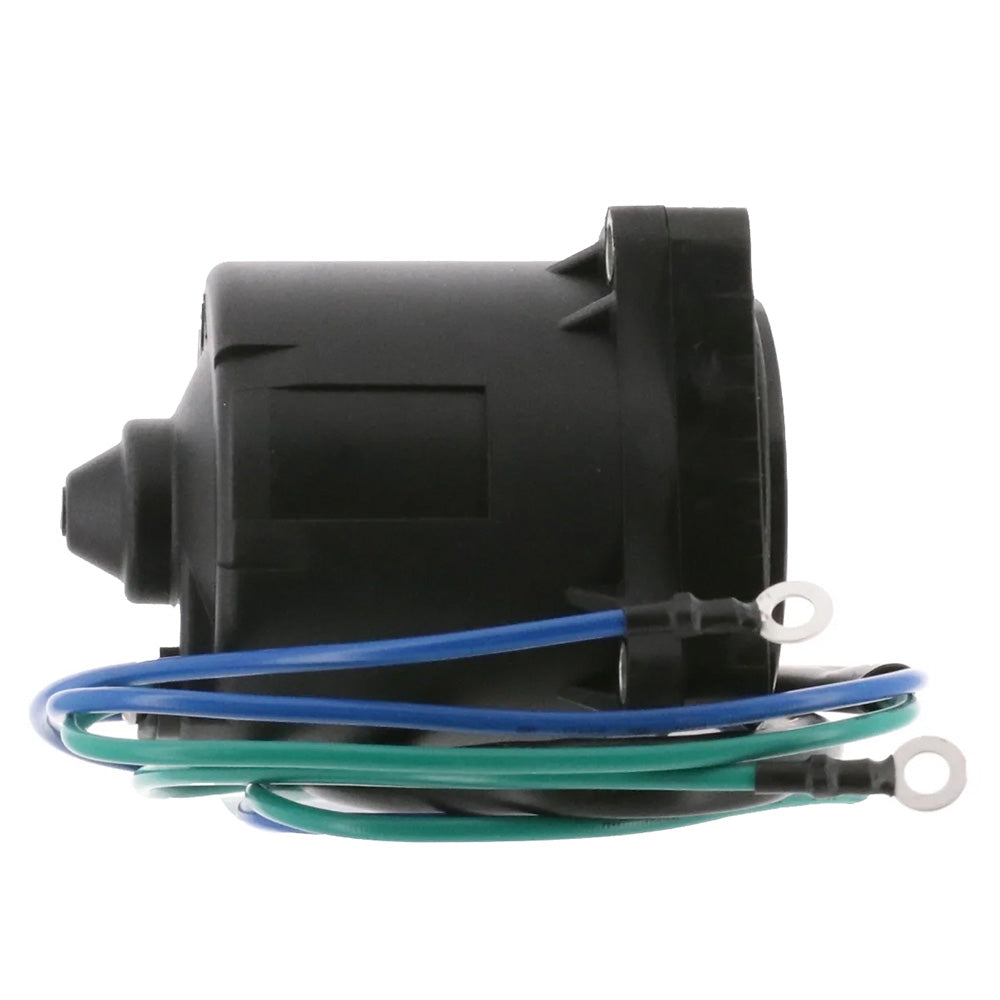

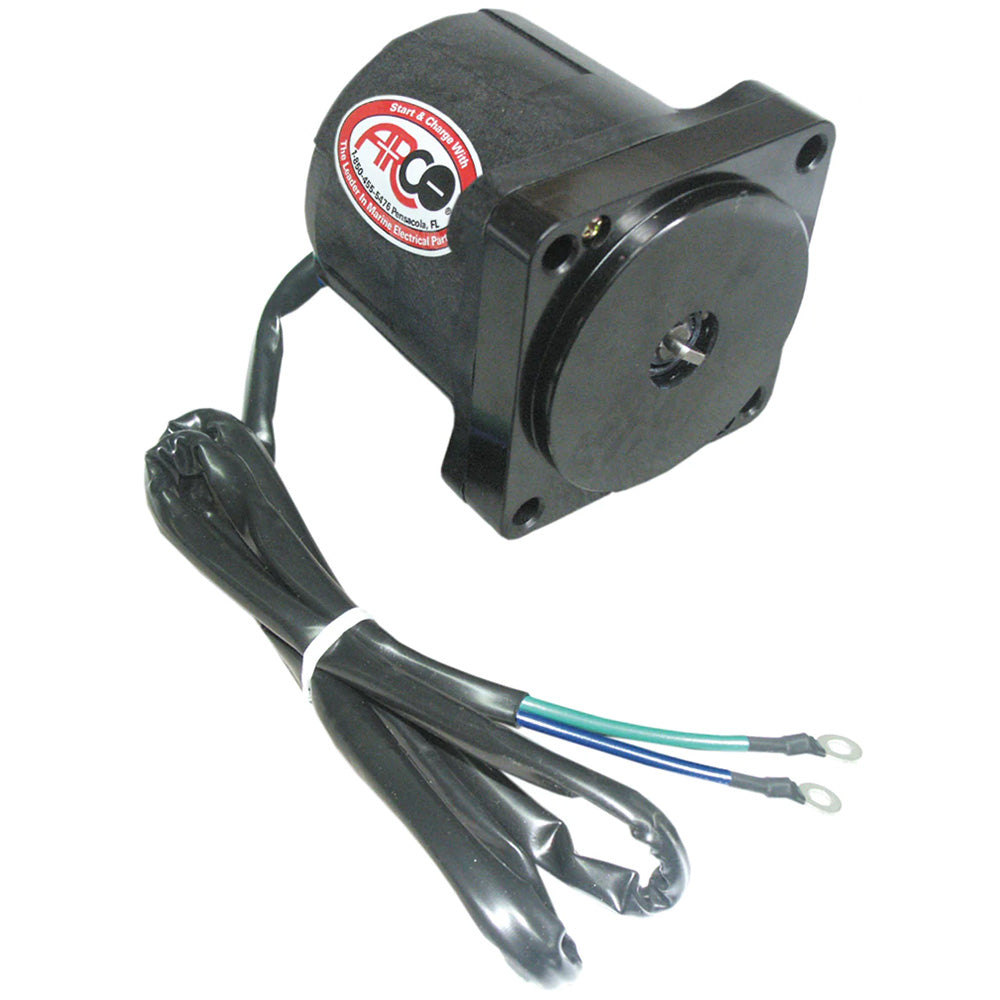

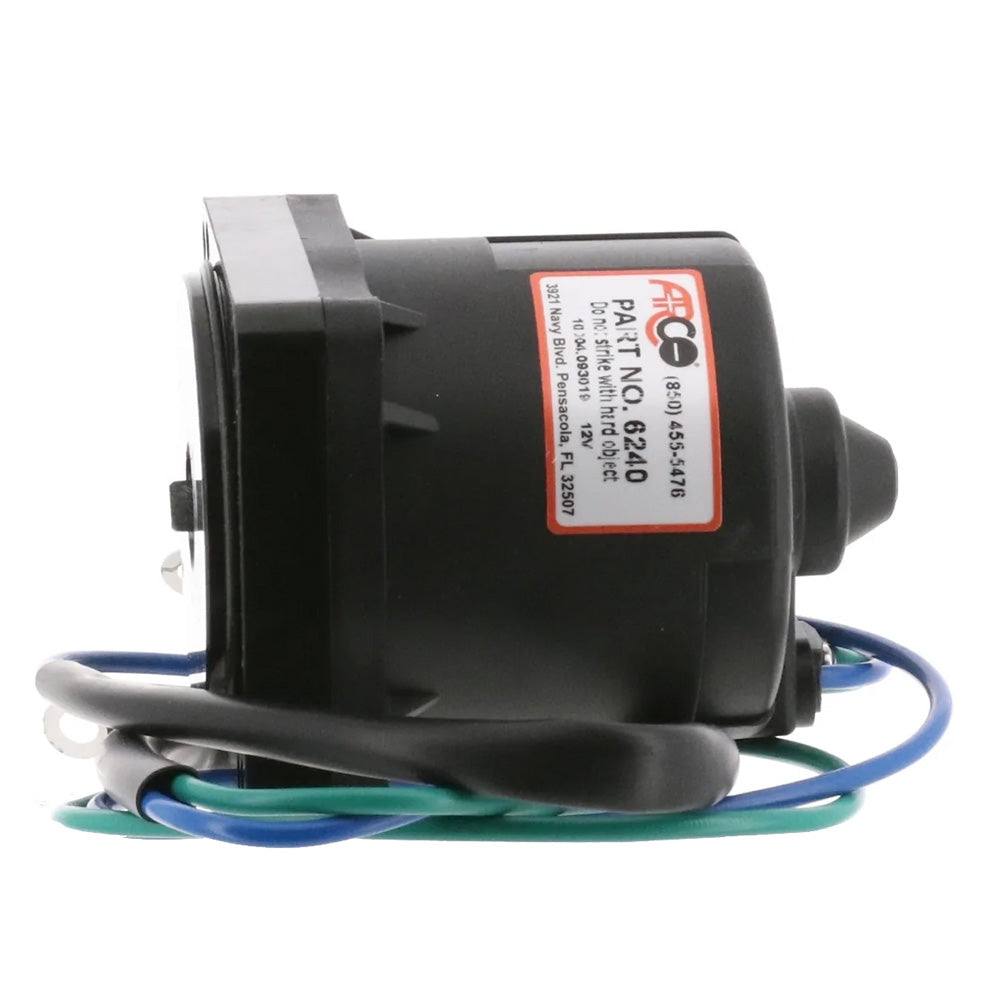

ARCO Marine Replacement Outboard Tilt Trim Motor for Yamaha 4-Bolt - 115HP, 130HP, 150HP, 200HP, 225HP

Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt

Replacement outboard tilt trim motor that will fit Yamaha 1997-UP 115 HP. 2000-UP 115 HP 4-Stroke. 1997-2000 130 HP, 1997-UP 150-200 HP, 1998-UP 225 HP. 2-wire connection, bolt mount, ring Terminal Ends, includes O-ring.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 64E-43880-00
YAMAHA Tilt Trim Motor 64E-43880-01
YAMAHA Tilt Trim Motor 64E-43880-03
YAMAHA Tilt Trim Motor 64E-43880-04
YAMAHA Tilt Trim Motor 67H-43880-00
YAMAHA Tilt Trim Motor 67H-43880-01
YAMAHA Tilt Trim Motor 67H-43880-02
YAMAHA Tilt Trim Motor 67H-43880-03
YAMAHA Tilt Trim Motor 67H-43880-04
YAMAHA Tilt Trim Motor 67H-43880-10
YAMAHA Tilt Trim Motor 68V-43880-00
YAMAHA Tilt Trim Motor 68V-43880-01
YAMAHA Tilt Trim Motor 68V-43880-02
YAMAHA Tilt Trim Motor 68V-43880-03
YAMAHA Tilt Trim Motor 68V-43880-04
BRP - OMC Tilt Trim Motor 5036732
SIERRA Tilt Trim Motor 18-6783

The ARCO Marine Replacement Outboard Tilt Trim Motor is designed to provide reliable performance for Yamaha outboards from 1997 and newer, including models with 115 HP, 130 HP, 150 HP, 200 HP, and 225 HP engines. This durable motor features a bolt mount and a 2-wire connection with ring terminal ends, ensuring a secure fit and straightforward installation. Included with the motor is an O-ring to facilitate proper sealing and prevent water ingress, promoting longevity and consistent operation. Proper connection maintenance is critical; ARCO recommends cleaning all electrical contacts to prevent corrosion, which can cause resistance and impede motor function. The motor is dynamically tested to guarantee out-of-the-box performance, with induction-hardened shafts at bearing surfaces for superior wear resistance. Its epoxy powder coating provides maximum insulation protection, safeguarding against harsh marine environments. When correctly installed, this tilt trim motor offers dependable operation, backed by a 12-month warranty for leisure applications and a 90-day warranty for commercial or racing use. Register your purchase within 30 days to extend your warranty by an additional year. This replacement motor is compatible with several Yamaha models, replacing part numbers such as 64E-43880-00, 67H-43880-01, and 68V-43880-04, among others. It is also suitable as a replacement for BRP OMC and Sierra tilt trim motors. Please note that this product may not be returned to the original point of purchase; contact ARCO Marine directly with any issues or concerns to ensure prompt assistance and support.

Features:

• Dynamically tested to ensure reliable out-of-the-box performance

• Induction-hardened shafts at bearing surfaces for enhanced wear resistance

• Epoxy powder coating for maximum insulation and environmental protection

• Includes O-ring for sealing and corrosion prevention

• Compatible with multiple Yamaha outboard models and other brands
