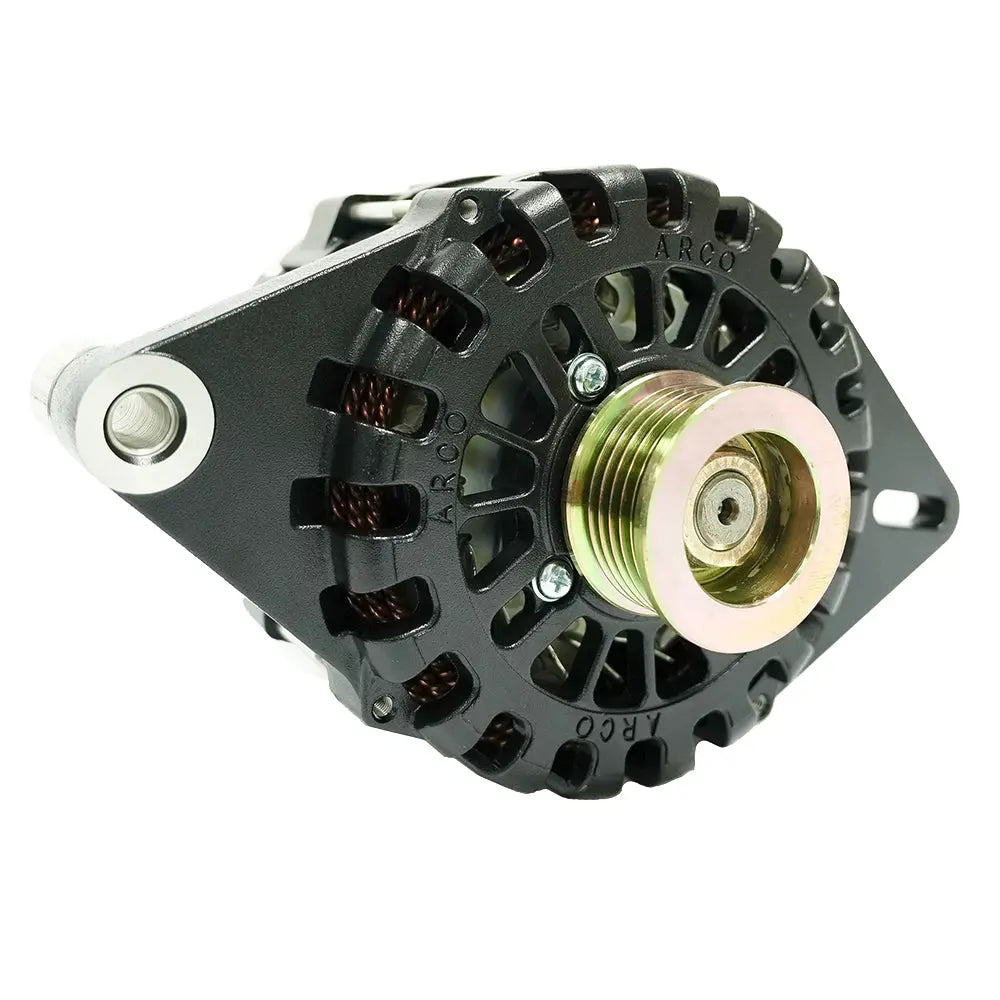

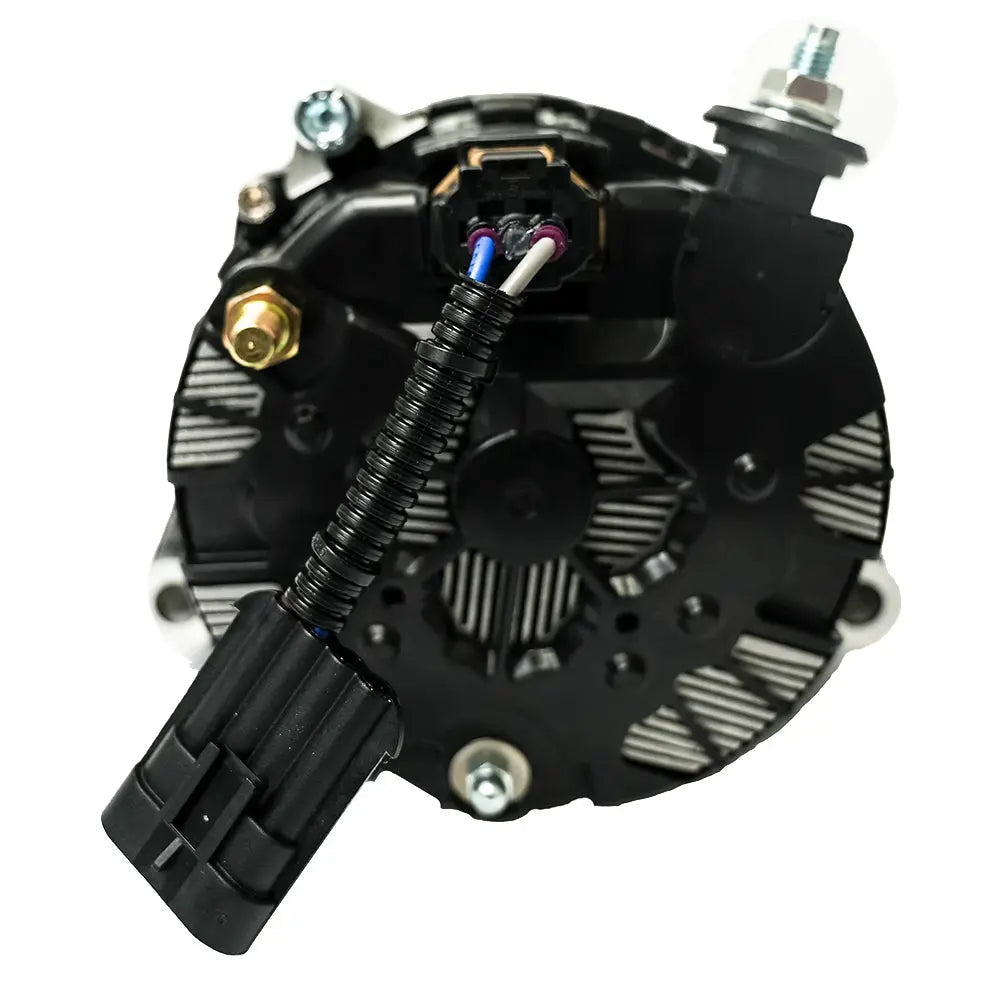

ARCO Marine Zeus 24V 4kW Low Turn-On Alternator with Isolated Ground and Single Foot Mount

Zeus 24V 4kW Low Turn On (LTO) 1-2 Single Foot Alternator with Isolated Ground

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact onthe alternator lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at cruising speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,072 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most domestic styles using a single 1 or 2 mounting foot (e.g., Motorola, Prestolite).

The ARCO Marine Zeus 24V 4kW Low Turn-On (LTO) alternator is engineered to deliver high performance at lower RPMs, making it ideal for marine, RV, military, and commercial applications. Featuring a native 24V rotor and field current, this alternator operates cooler and more efficiently than competitors that rely on 12V rotors, which enhances longevity and reliability. Its robust design enables it to generate over 1.4kW (51 Amps) at just under 1,500 RPM and nearly 2.4kW (87 Amps) at 2,000 RPM, providing substantial power for large battery banks and demanding environments. This means that even idling engines, such as a marine diesel at 750 RPM with a 2:1 pulley ratio or a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio, can produce significant charging power, reducing engine load and enhancing efficiency. The Zeus alternator's advanced cooling system, including dual fans and heat shedding coatings, ensures optimal operating temperatures, extending its service life and maintaining peak performance under continuous use. The external rectifier and exterior-mounted diodes facilitate easier maintenance and improved heat dissipation. Built with OEM components and finished with durable E-coating, the ARCO Zeus is designed for demanding environments and long-term reliability. Its compatibility with Bluetooth regulators allows for customizable performance tuning and lithium battery charging, making it a versatile choice for various power systems. The alternator features a large frame size, side-mount M8 post, and a standard 49mm multi-groove pulley, ensuring straightforward installation onto most engine configurations. Certified to SAE J1171 standards and proudly made in the USA, the ARCO Marine Zeus 24V 4kW alternator offers a reliable, efficient, and high-output solution for applications requiring consistent power generation and durability.

Features:

• Engineered for high energy production and optimal efficiency.

• Suitable for marine, RV, military, and commercial applications.

• Rapidly charges large battery banks, reducing downtime.

• Operates cooler with heat shedding coatings and dual cooling fans.

• Rectifier located on housing exterior for easier maintenance.

• Utilizes OEM components for durability and long service life.

• Optimized for performance at cruising speeds.

• Reduces engine load by generating additional power.

• Unleashes peak performance with E-Coat/Cerakote coating for cooler operation.

• Compatible with ARCO Zeus Bluetooth Alternator Regulator for enhanced control.

• SAE J1171 Certified for safety and reliability.

• Made in the USA with high-quality materials and craftsmanship.
