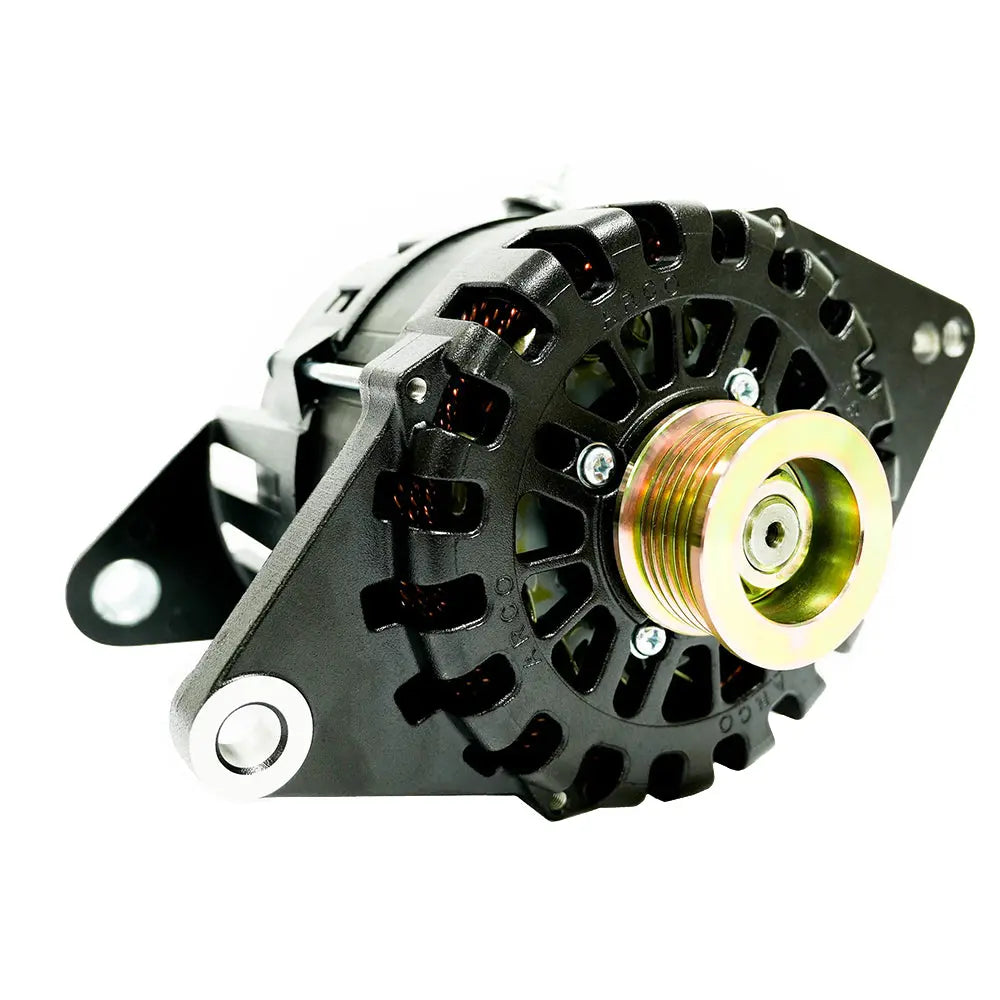

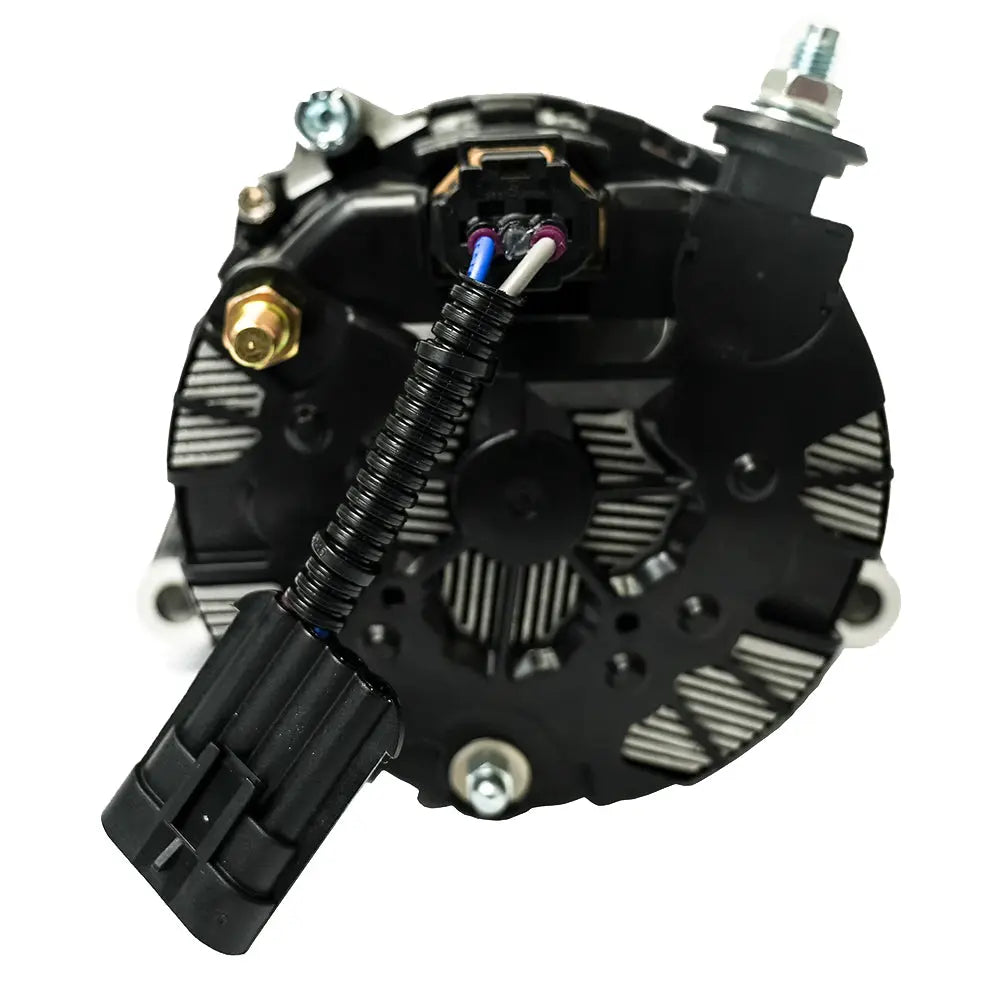

ARCO Marine Zeus 24V 4kW Low Turn On (LTO) J180 Alternator with Isolated Ground

Zeus 24V 4kW Low Turn On (LTO) J180 4 Alternator with Isolated Ground

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at cruising speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,072 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount.

The ARCO Marine Zeus 24V 4kW Low Turn On (LTO) J180 Alternator is designed to deliver superior power output at lower RPMs, making it ideal for a variety of marine, RV, military, and commercial applications. Featuring a native 24V rotor and field current, this alternator operates cooler and more efficiently than traditional models that utilize a 12V rotor, significantly extending its lifespan. It can continuously generate over 1.4kW (51 Amps) at just under 1,500 RPM and nearly 2.4kW (87 Amps) at 2,000 RPM, providing reliable power even during idling conditions. For example, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio can produce over 1.5kW, while a Mercedes Sprinter at the same RPM with a 3.21:1 ratio can generate more than 2.5kW, demonstrating its robust performance in real-world scenarios. The design emphasizes durability and high energy production, making it suitable for charging large battery banks and supporting demanding power needs. The alternator features heat shedding coatings, dual cooling fans, and an external rectifier located on the housing exterior, ensuring optimal operating temperatures and enhanced performance. Its black E-coating finish provides additional protection against harsh environments. The unit is engineered with OEM components and includes a 49K6 pulley, M8 side mount post, and avalanche-rated diodes, ensuring high quality and reliability. Certified to SAE J1171 standards and proudly made in the USA, the ARCO Zeus 24V 4kW alternator is a high-performance solution for demanding power applications. It is compatible with most Volvo Penta alternators using a 4 J180 saddle-style mount, simplifying installation and integration into existing systems. With advanced cooling features and efficient operation, this alternator is engineered to maximize performance and longevity, making it a valuable asset for any power generation setup. Use with the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging, ensuring your power system operates at peak efficiency.

Features:

• Engineered for high energy production and efficiency

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks and supports demanding power needs

• Runs cooler due to heat shedding coatings and dual cooling fans

• External rectifier located on housing exterior for improved heat dissipation

• OEM components for durability and reliability

• Optimized for cruising speeds and maximum performance

• Reduces engine load by generating additional power

• High amperage output at low RPMs, ideal for idling engines

• Unleashes peak performance with E-Coat/Cerakote coating for sustained amperage output

• Compatible with ARCO Zeus Bluetooth Alternator Regulator for enhanced control

• SAE J1171 Certified for quality assurance

• Proudly manufactured in the USA
