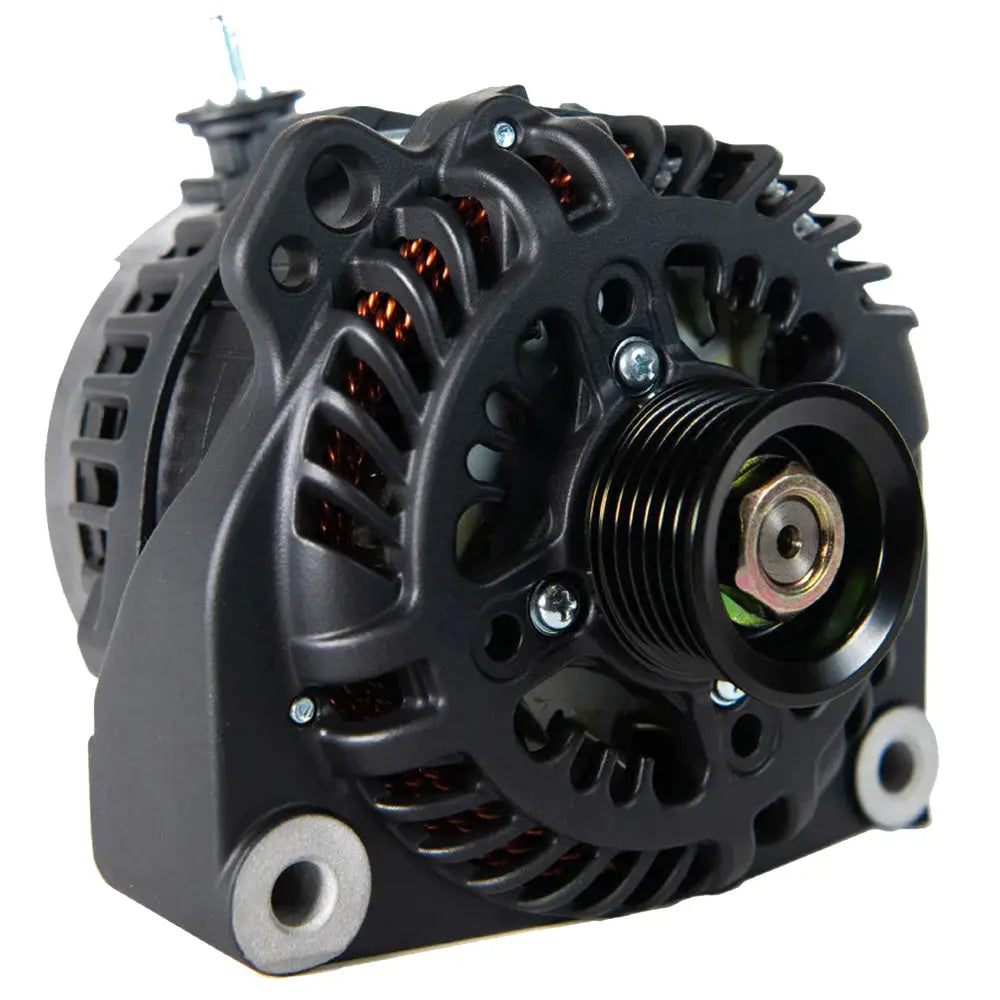

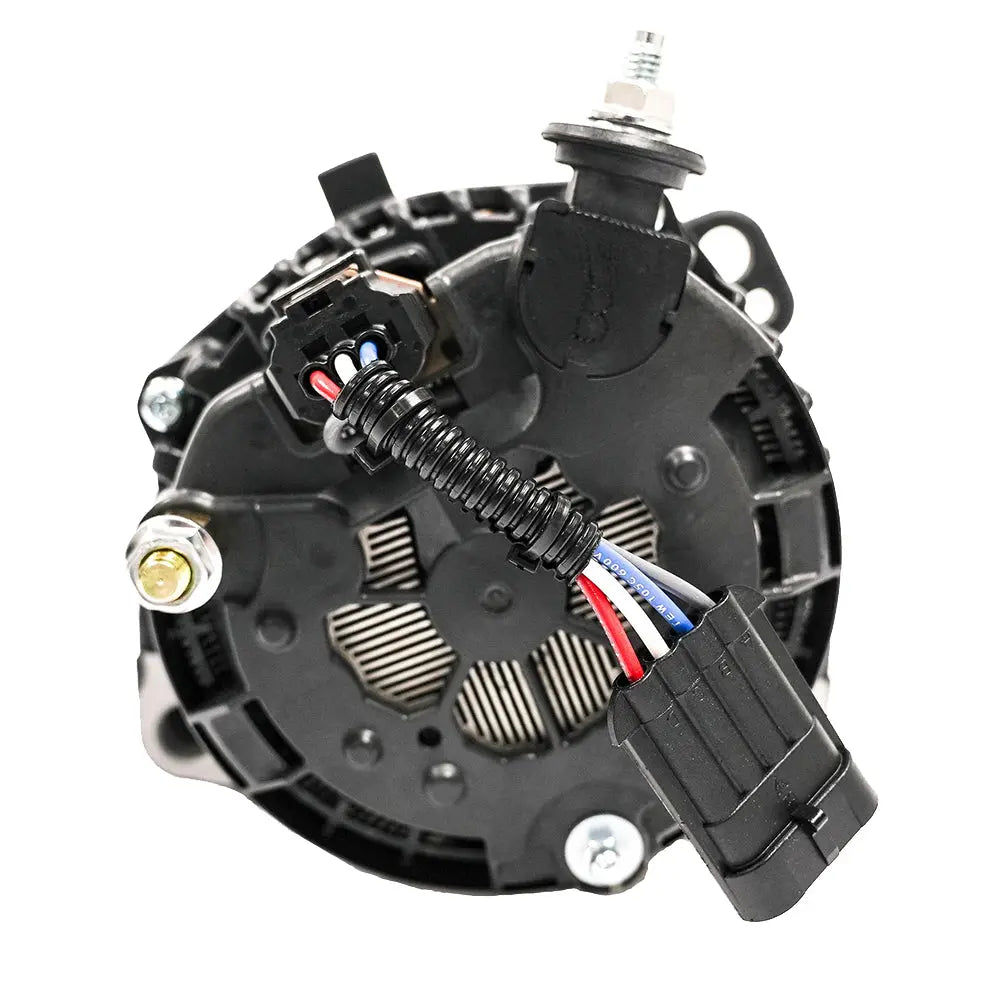

ARCO Marine Zeus 24V 4kW Low Turn On Vortec Alternator with Isolated Ground - Model 4406

Zeus 24V 4kW Low Turn On (LTO) Vortec Alternator with Isolated Ground

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at cruising speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,072 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces Mando-type alternators using Vortec/GM pad mounting feet. (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines).

The ARCO Marine Zeus 24V 4kW Low Turn On (LTO) Vortec Alternator is engineered for high-performance applications, offering efficient power generation at low RPMs. Its design enables the alternator to turn on at just under 1,100 RPM, providing over 1.4kW (51 Amps) and nearly 2.4kW (87 Amps) at 2,000 RPM, making it suitable for marine, RV, military, and commercial use. This capability ensures rapid battery charging and consistent power output in demanding environments. The alternator's compact and lightweight construction, weighing approximately 16 pounds, allows for easy integration while maintaining durability and performance.

A key feature of the ARCO Zeus 24V 4kW is its use of a native 24V rotor and field current system, contrasting with competitors that rely on 12V field systems. This results in improved efficiency, lower operating temperatures, and an extended lifespan due to heat shedding coatings and dual cooling fans. The exterior rectifier housing and heat management technology contribute to cooler operation, especially during sustained high-output cycles. Built with OEM components and finished with an E-coat/Cerakote black coating, this alternator is designed for longevity and reliability.

The unit is optimized for cruising speeds and optimized to create additional power from your engine, reducing reliance on separate generators. Compatibility with the ARCO Bluetooth Alternator Regulator allows for maximum performance tuning and lithium battery charging. Certified SAE J1171 and proudly manufactured in the USA, this alternator offers a robust solution for demanding power needs. Its technical specifications include a maximum cold RPM output of 144 amps and a regulated operation up to 19,000 RPM, ensuring a wide range of performance in various applications. Mounting replaces Mando-type alternators using Vortec/GM pad feet, common on many marine engines, making installation straightforward and reliable.

Features:

• Engineered for high energy production and efficient power output

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks for dependable power storage

• Operates cooler with heat shedding coatings and dual cooling fans

• Rectifier located on exterior for enhanced cooling and durability

• OEM components ensure quality and longevity

• Optimized for performance at cruising speeds

• Reduces engine load by generating additional power

• High amperage output at low RPMs for versatile power needs

• Unleashes peak performance with E-Coat/Cerakote finish for heat dissipation

• Compatible with ARCO Bluetooth Alternator Regulator for advanced control

• SAE J1171 certified for safety and reliability

• Made in the U.S.A. with quality standards
