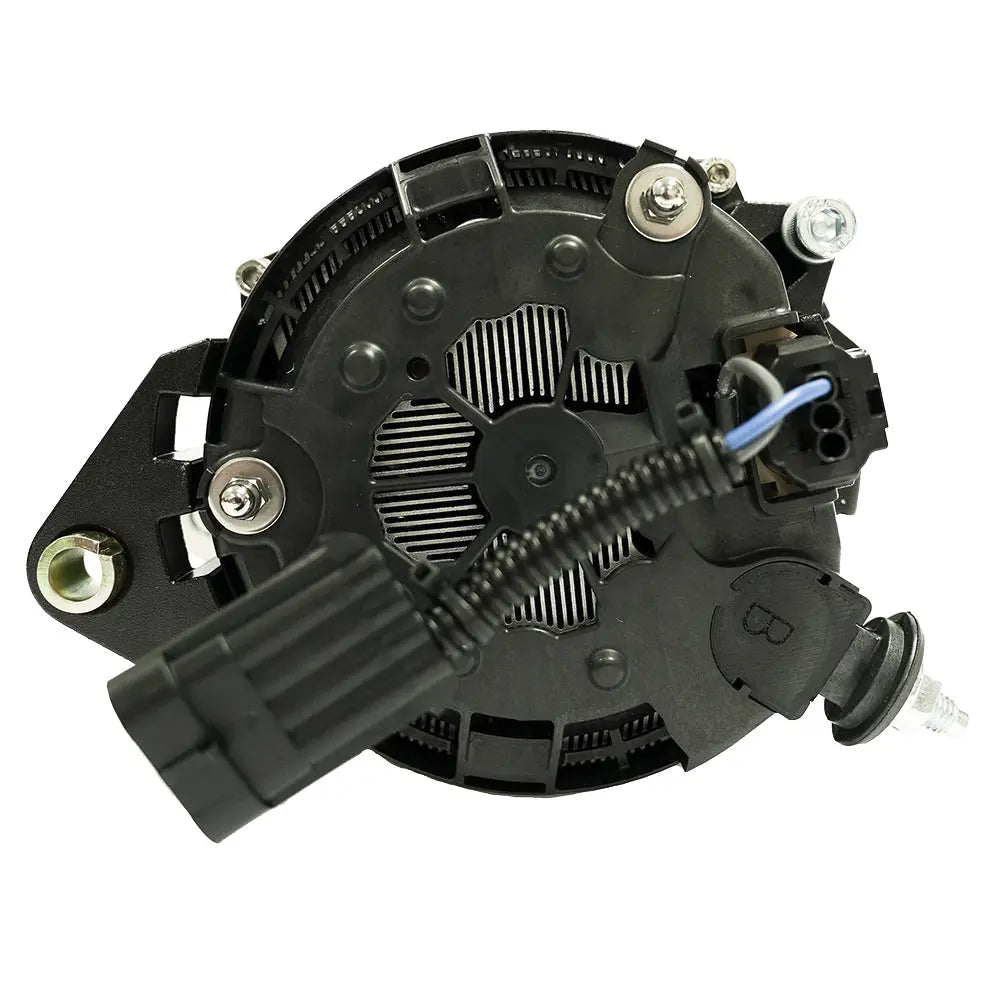

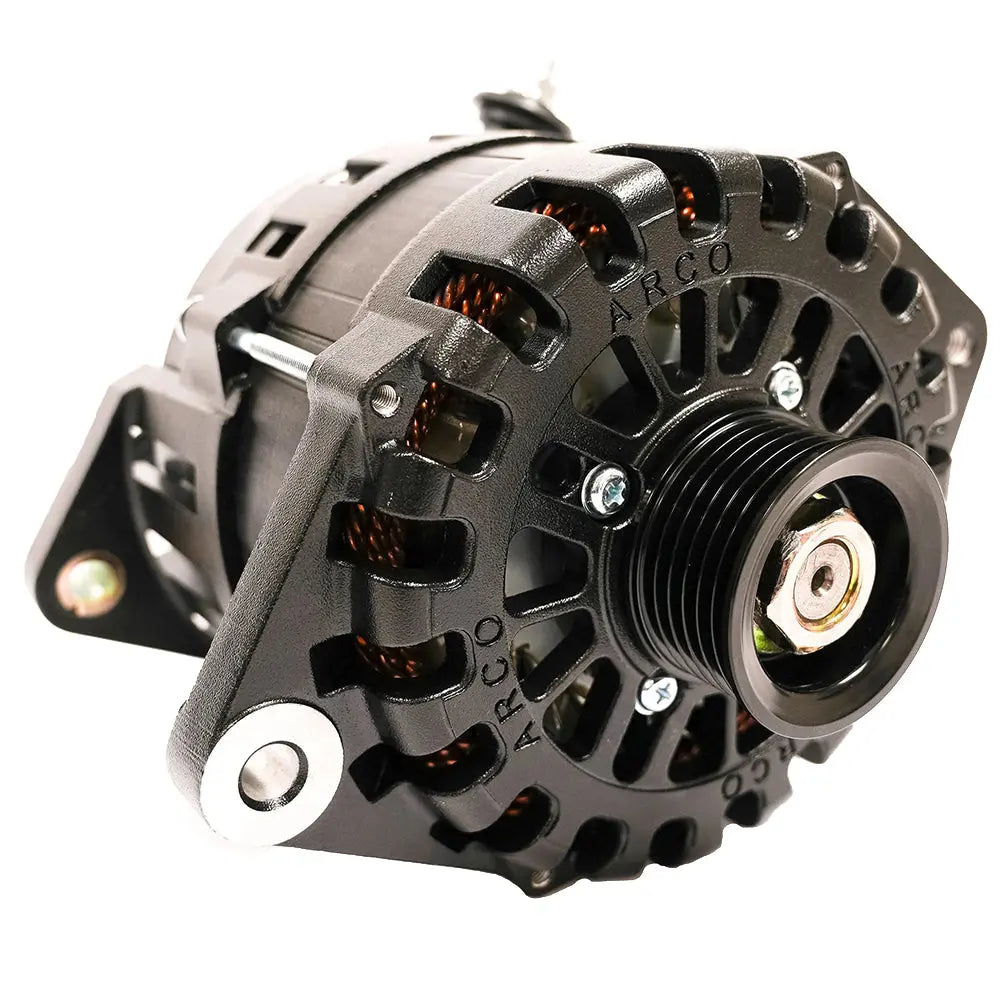

ARCO Marine Zeus 24V 7kW Alternator with Isolated Ground - High-Performance Marine and Commercial Power Generation

Zeus 24V 7kW 3.15 Alternator with Isolated Ground

The ARCO Zeus 24v 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!

The ARCO Zeus 24v 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,962 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts 11.2 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts 8.6kW PTO
• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts 2kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most small case styles using a 3.15 J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars.

The ARCO Marine Zeus 24V 7kW alternator is engineered for demanding marine, RV, military, and commercial applications that require reliable high amperage output. Designed with a native 24V rotor and field current, this alternator delivers superior efficiency and cooler operation compared to competitors using 12V rotors. It consistently generates over 3,000 watts at around 3,000 alternator RPM and nearly 6,000 watts at just under 6,000 RPM, making it ideal for large battery banks and high-power systems. Its ability to operate efficiently at idle speeds reduces the need for auxiliary generators, providing significant energy savings and increased system independence. The Zeus 7kW alternator's robust construction features heat shedding coatings and external rectifiers, ensuring optimal performance and longevity even under prolonged high-load conditions. Dual cooling fans and E-Coat/Cerakote high-temperature coatings keep the alternator cooler during operation, which directly extends its lifespan and maintains peak output. This alternator is compatible with Bluetooth regulators for advanced performance tuning and lithium battery charging, making it a versatile choice for various power systems. Certified SAE J1171 and proudly manufactured in the USA, the Zeus 24V 7kW alternator combines high efficiency, durability, and advanced cooling technology to meet the demands of modern power generation needs. Its compatibility with most small case styles using a 3.15 J180 saddle mount, including most Yanmar models, makes installation straightforward for a wide range of marine and industrial setups. Whether replacing aging units or upgrading to a more powerful, cooler-running alternator, the ARCO Zeus 7kW model is designed to unleash peak performance in your power system.

Features:

• Engineered for high energy production and efficiency

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks

• Heat shedding coatings and external rectifier for optimal cooling

• Dual cooling fans for enhanced temperature management

• OEM components ensure reliability and durability

• Optimized for performance at idle speeds

• Reduces need for additional generators by generating extra power with your engine

• E-Coat/Cerakote finish maintains cooler operation for sustained amperage output

• Compatible with Bluetooth Alternator Regulator for advanced performance control

• SAE J1171 certified for quality assurance

• Made in the USA with high-quality materials
