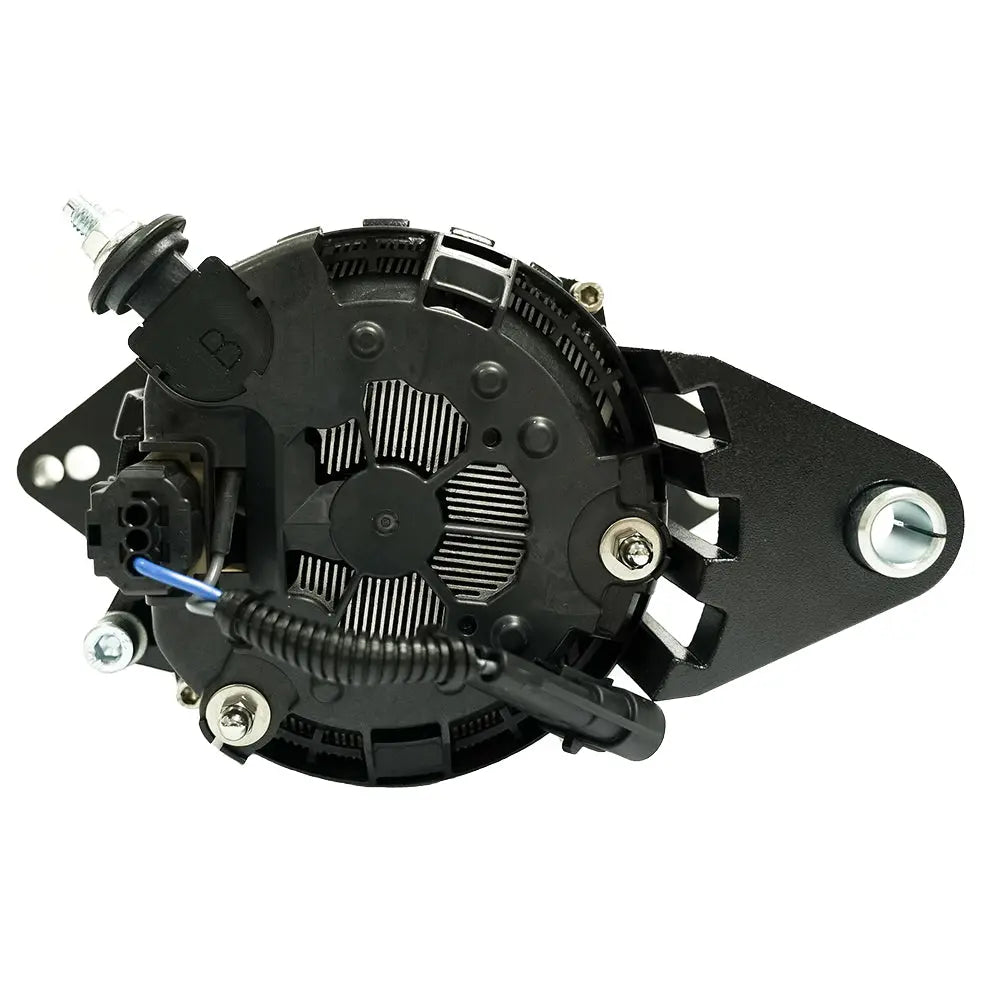

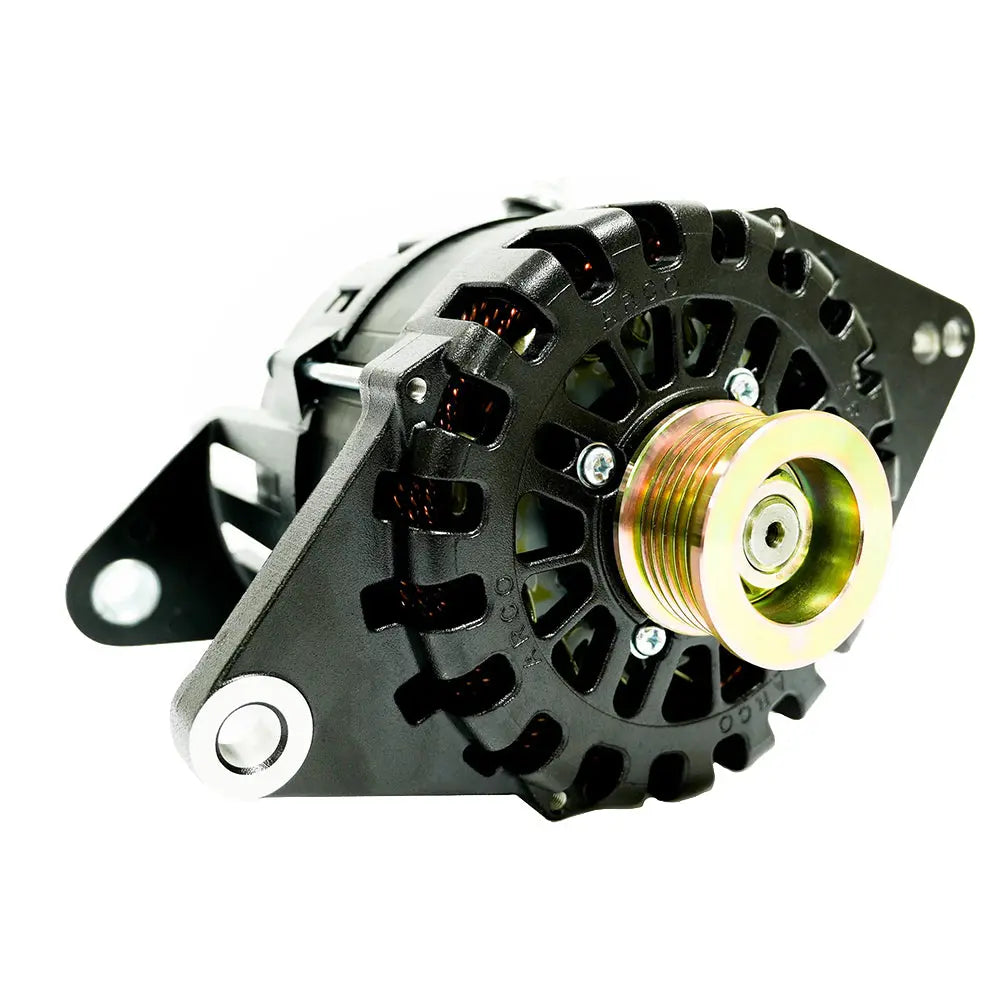

Zeus 24V 7kW J180 4 Alternator with Isolated Ground
The ARCO Zeus 24v 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!
The ARCO Zeus 24v 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.
Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact onthe alternator lifespan.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 24v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 15.89lbs/7.2kg
- Regulation - External Only
- Finish - (Black) E-coating
- Cut-In RPM - 1,962 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts 11.2 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts 8.6kW PTO
- Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts 2kW PTO
- Max Continuous Operating Temperature - 100C / 212F
Mounting Application:
- Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount. Also, used on many larger industrial-based engines.
The ARCO Marine Zeus 24V 7kW J180 Alternator is engineered for demanding marine, RV, military, and commercial applications requiring reliable high amperage output. This advanced alternator delivers over 3kW (109 Amps) at just under 3,000 RPM and nearly 6kW (218 Amps) at under 6,000 RPM, making it ideal for rapid battery charging and high-power demands. Its design ensures continuous operation at high energy production levels, supported by innovative cooling and heat dissipation technologies. The alternator’s efficient performance at cruising speeds reduces strain on engines, operates cooler, and extends component lifespan compared to traditional models. Its robust construction and optimized circuitry make it suitable for environments where durability and consistent power are essential, including marine vessels, large RVs, and industrial machinery.
Features:
- Engineered for high energy production and reliable power output
- Suitable for marine, RV, military, and commercial applications
- Rapidly charges large battery banks to ensure continuous operation
- Operates cooler with heat shedding coatings and dual cooling fans for enhanced performance
- Rectifier located on housing exterior for efficient heat management
- OEM components used for durability and reliability
- Optimized for high performance at idle speeds, reducing engine load
- Reduces dependence on external generators by creating additional power from engine RPM
- Unleashes peak performance with E-Coat/Cerakote coating to keep cooler for sustained amperage
- Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance and lithium battery charging
- SAE J1171 Certified for safety and quality assurance
- Made in the U.S.A., ensuring quality craftsmanship
