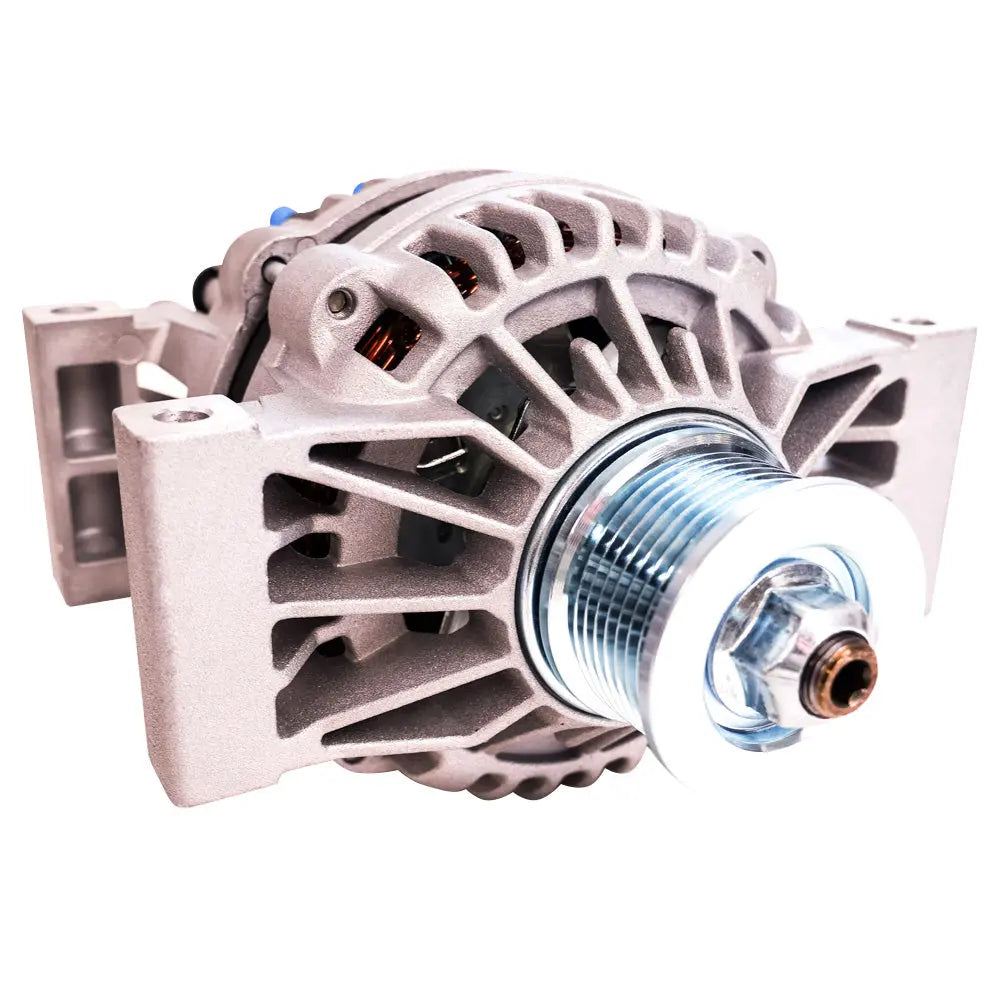

ARCO Marine Zeus A115/3500W 24V HD High Output Alternator - Pad Mount

Zeus A115/3500W 24V HD High Output Alternator - Pad Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator!
• Suitable for most diesel applications
• Designed for extended duty operation
• Engineered for high energy production
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine.
• External Regulation Required

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 24V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 132 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 89 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A115/3500W 24V HD High Output Alternator is engineered for demanding marine and diesel applications, providing exceptional power to support large battery banks and high electrical loads. Designed with high energy production in mind, this alternator delivers the highest output in its class, reducing reliance on onboard generators and ensuring your vessel or machinery maintains optimal power levels. Its robust construction and advanced cooling system enable prolonged operation at cool temperatures, thanks to dual internal cooling fans that dissipate heat efficiently for sustained performance and extended service life. This design not only enhances reliability but also allows for consistent power generation during long operation periods. Whether replacing noisy generators or supplementing existing power sources, the Zeus A115/3500W offers a dependable solution for high-demand environments, ensuring your electrical system remains stable and efficient.

Features:

• Replace your noisy generator! Designed to provide reliable, high-output power directly from your engine.

• Suitable for most diesel applications, ensuring versatility across marine and industrial uses.

• Engineered for extended duty operation, capable of sustained high-performance over long periods.

• High-energy output reduces the need for additional power sources, supporting large battery banks.

• Dual internal cooling fans maintain cool operating temperatures, boosting performance and longevity.

• External regulation required, compatible with external regulators like ARCO Zeus Bluetooth alternator regulator.

• Voltage: 24V for efficient power delivery in heavy-duty applications.

• Field Type: P, designed for external regulation connections.

• Rotor Poles: 12, optimized for high energy production and electrical efficiency.

• Maximum Cold Output: 132 amps, ensuring rapid charging and power support.

• Sustained Cruising Output (Hot, 6,000 RPM): 104 amps for consistent performance.

• Maximum RPM: 10,000, suitable for high-speed engine operation.

• Rear Battery Post: M8 Thread, for secure and reliable electrical connections.

• Standard Pulley: 2.33 inches (K8 59 mm) for compatibility with various engine setups.

• Shaft Diameter: 7/8 inch (22.22 mm) for robust mounting and operation.

• Avalanche Diodes: 50 amps, providing protection against voltage spikes.

• Max Output (Cold): 132 amps for quick energy surges during startup.

• Sustained Idle Output (Hot, 3,000 RPM): 89 amps, maintaining power at low engine speeds.

• Maximum Operating Temperature: 125°C, ensuring durability in high-temperature environments.
