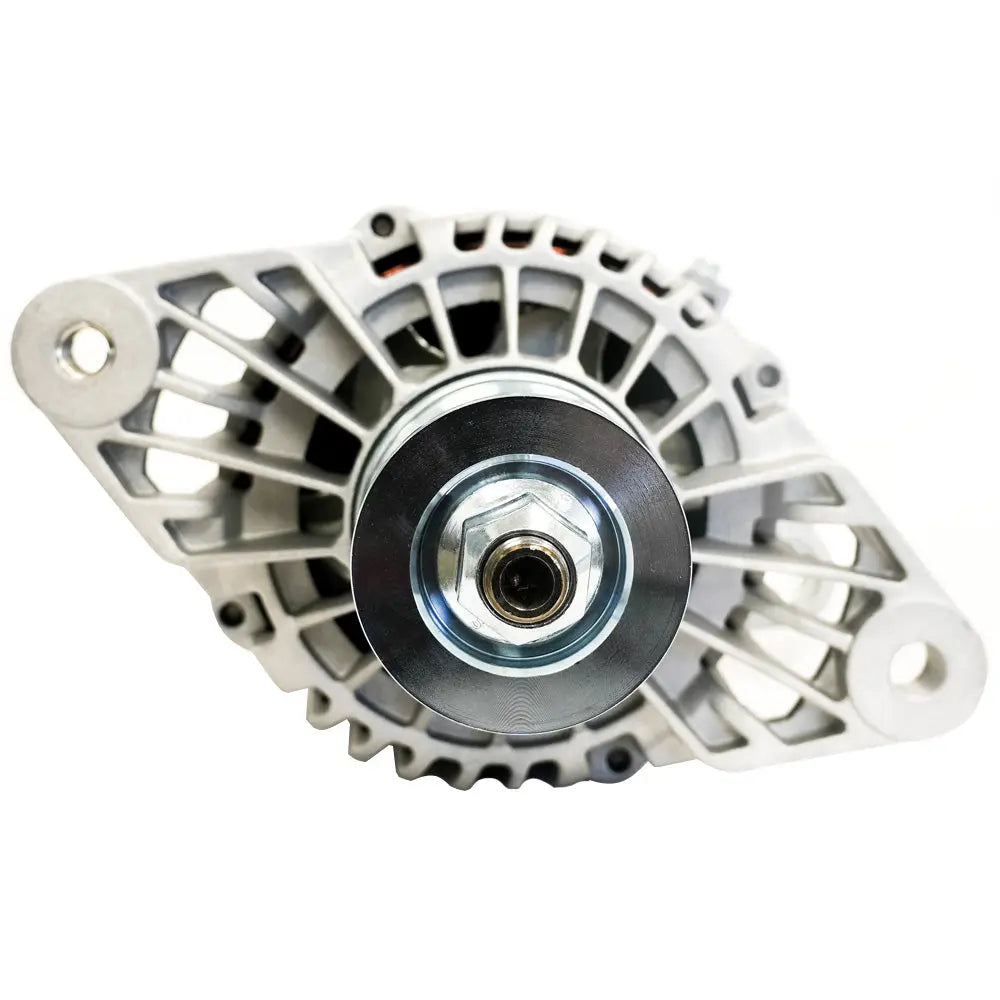

ARCO Marine Zeus A115/3500W 24V Heavy Duty Alternator with J180 Mount

Zeus A115/3500W 24V HD Hight Output Alternator - J180 Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator!
• Suitable for most diesel applications
• Designed for extended duty operation
• Engineered for high energy production
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine.
• External Regulation Required

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 24V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 132 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 89 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A115/3500W 24V heavy-duty alternator is designed for demanding marine and diesel applications where high power output and reliability are essential. Engineered to deliver rapid charging capabilities, this alternator effectively supports large battery banks and high electrical loads, reducing dependence on onboard generators and enhancing overall power management. Its robust construction and efficient design ensure dependable performance in extended-duty operations, making it an ideal choice for marine vessels and heavy-duty diesel equipment.
Equipped with dual internal cooling fans, the Zeus A115/3500W maintains exceptionally cool operating temperatures, which helps prolong component lifespan and sustain high-performance levels during prolonged use. Its external regulation compatibility allows for precise control, ensuring optimal voltage regulation tailored to specific systems. The alternator features a P-type field, 12 rotor poles, and a standard K8 pulley, making installation straightforward and adaptable to various engine setups. Weighing approximately 18.7 pounds, this unit is built for durability and ease of handling, with a rear battery post threaded M8 for secure connections.
Designed to operate efficiently at engine speeds starting at around 1,288 RPM, the Zeus alternator can reach maximum output at high RPMs, with a cold maximum of 132 amps and sustained outputs of over 100 amps during normal operation. Its maximum continuous operating temperature is rated at 125°C, ensuring reliable performance under demanding conditions. The alternator's rugged construction and high energy production capabilities make it a vital component for applications requiring high amperage and consistent power delivery. External regulation is required for proper operation, and the unit includes a terminal block and P-type harness for seamless integration into existing electrical systems.
Whether replacing a noisy generator or enhancing electrical capacity, the ARCO Marine Zeus A115/3500W 24V alternator provides a reliable, high-output power source for marine and diesel engines. Its advanced cooling system, high amperage output, and durable build quality make it an excellent choice for professionals seeking a dependable and efficient alternative to traditional power generation methods.

Features:

• Replace your noisy generator and enjoy quieter operation

• Suitable for most diesel engine applications

• Engineered for extended duty operation with high energy output

• Rapidly charges large battery banks to ensure continuous power

• Dual internal fans keep operating temperatures cool for increased performance and longevity

• Reduces reliance on onboard generators by producing additional power directly from your engine

• External regulation required for precise voltage control

• High maximum output with sustained performance during prolonged use

• Designed for easy installation with standard pulley and threaded battery post

• Built to withstand demanding conditions with a maximum temperature rating of 125°C
