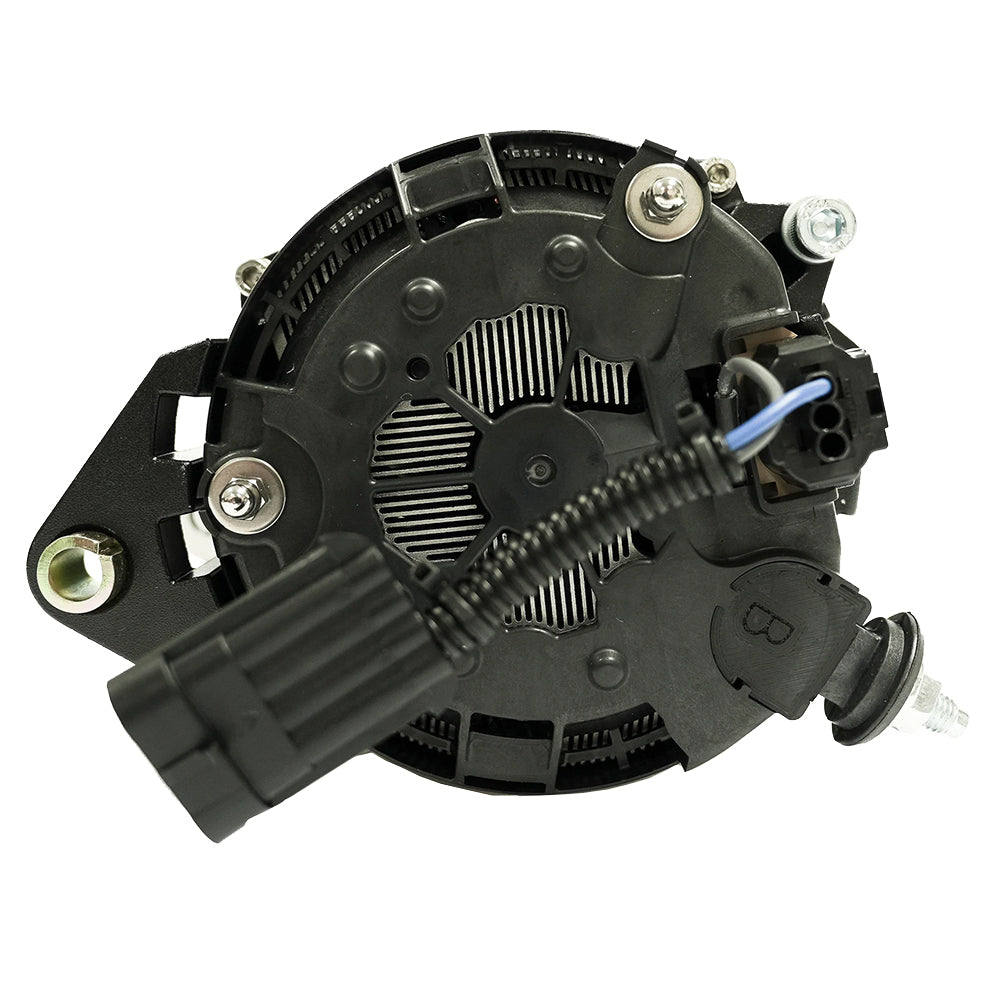

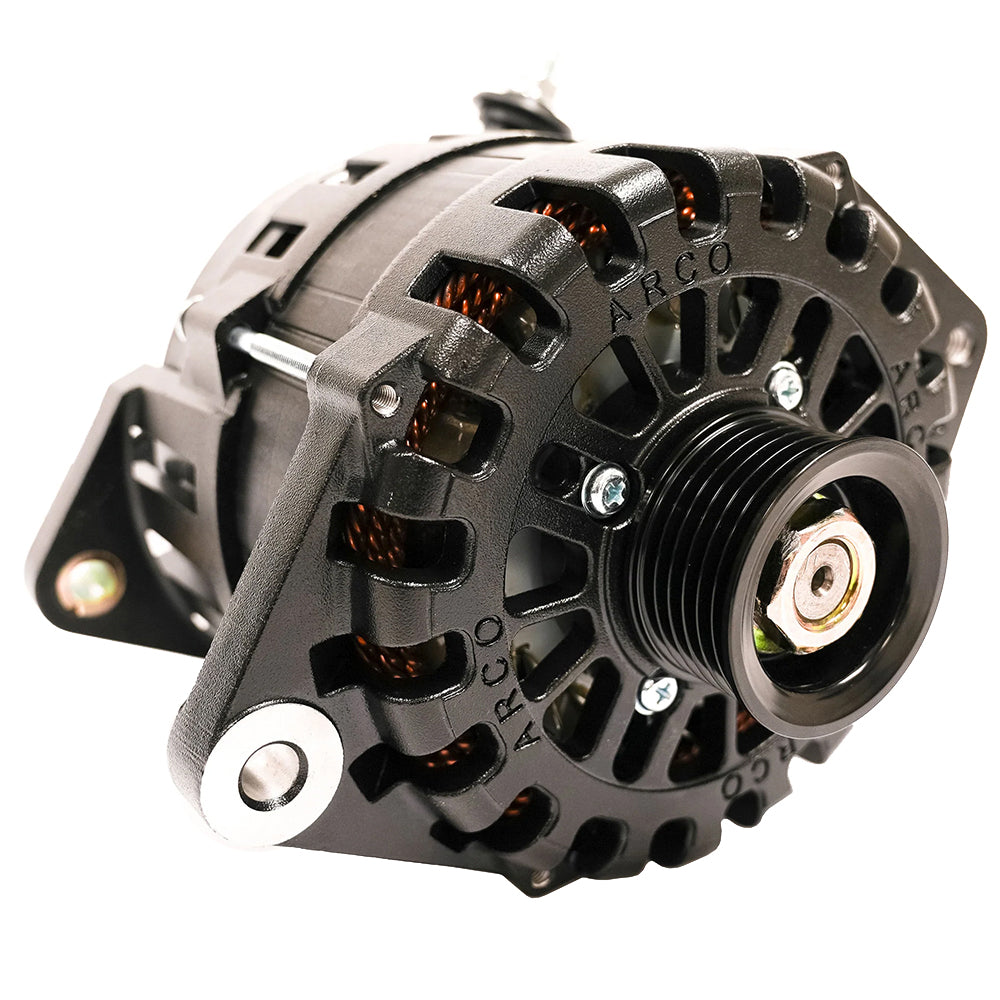

Zeus A225S 3.15 Alternator with Isolated Ground (Common Rail) Terminal Block
The highest power output alternator in its size/class.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Models are available with an internal/external voltage regulator.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 130mm
- Frame Size - Small
- Weight - 12 lbs/5.4 kg
- Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
- Output Voltage - 14.1v (Default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 254 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
- Max Continuous Operating Temperature - 110C / 230F
Mounting Application:
- Must be used on Yanmar Common Rail introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110)
ARCO Marine Zeus A225S 3.15 Alternator, Part Number 4013, is engineered to deliver exceptional charging performance in a compact frame. Designed with an isolated ground and common rail terminal block, this 12-volt alternator is specifically intended for Yanmar Common Rail engines introduced after 2013, including JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, and 4JH110 applications. Its high-output design rapidly charges large battery banks and provides additional electrical power directly from the engine, helping reduce reliance on a separate generator.
The Zeus A225S uses heat-shedding coatings, an externally mounted rectifier, dual cooling fans, and OEM components to support cooler operation and sustained output. The alternator operates 8–20% cooler than many conventional alternators, while E-Coat or black Cerakote finishes help manage heat for consistent amperage delivery. It is optimized for performance at idle speeds, delivering up to 157 amps of sustained hot output at idle, 187 amps during sustained hot cruising operation, and a maximum cold output of 254 amps. The alternator is SAE J1171 certified for marine use and is proudly made in the U.S.A.
Internal regulation is standard, with an adapter available for optional external regulation. Pairing the alternator with the ARCO Zeus Bluetooth Alternator Regulator can provide maximum performance and enhanced lithium battery charging control. The alternator includes a side-mount M8 battery post, six-groove 49-millimeter pulley, pulley hardware, and a common rail terminal block. Its small-frame construction and 12-pound weight support installation in marine, RV, military, and commercial charging systems where dependable high-output performance is required.
Features:
- High-output 12-volt alternator designed for efficient energy production
- Isolated ground and common rail terminal block for compatible Yanmar Common Rail applications
- Compatible with Yanmar Common Rail engines introduced after 2013, including JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, and 4JH110
- Up to 254 amps of maximum cold output
- 157 amps of sustained hot idle output and 187 amps of sustained hot cruising output
- Optimized for strong charging performance at idle speeds
- Heat-shedding coating, externally mounted rectifier, and dual cooling fans support cooler operation
- E-Coat or black Cerakote finish helps manage heat during sustained operation
- Internal regulation with adapter support for optional external regulation
- Compatible with the ARCO Zeus Bluetooth Alternator Regulator for enhanced performance and lithium battery charging
- SAE J1171 certified for marine applications
- Includes six-groove 49-millimeter pulley and pulley mounting hardware
- Suitable for marine, RV, military, and commercial applications
- Proudly made in the U.S.A.
