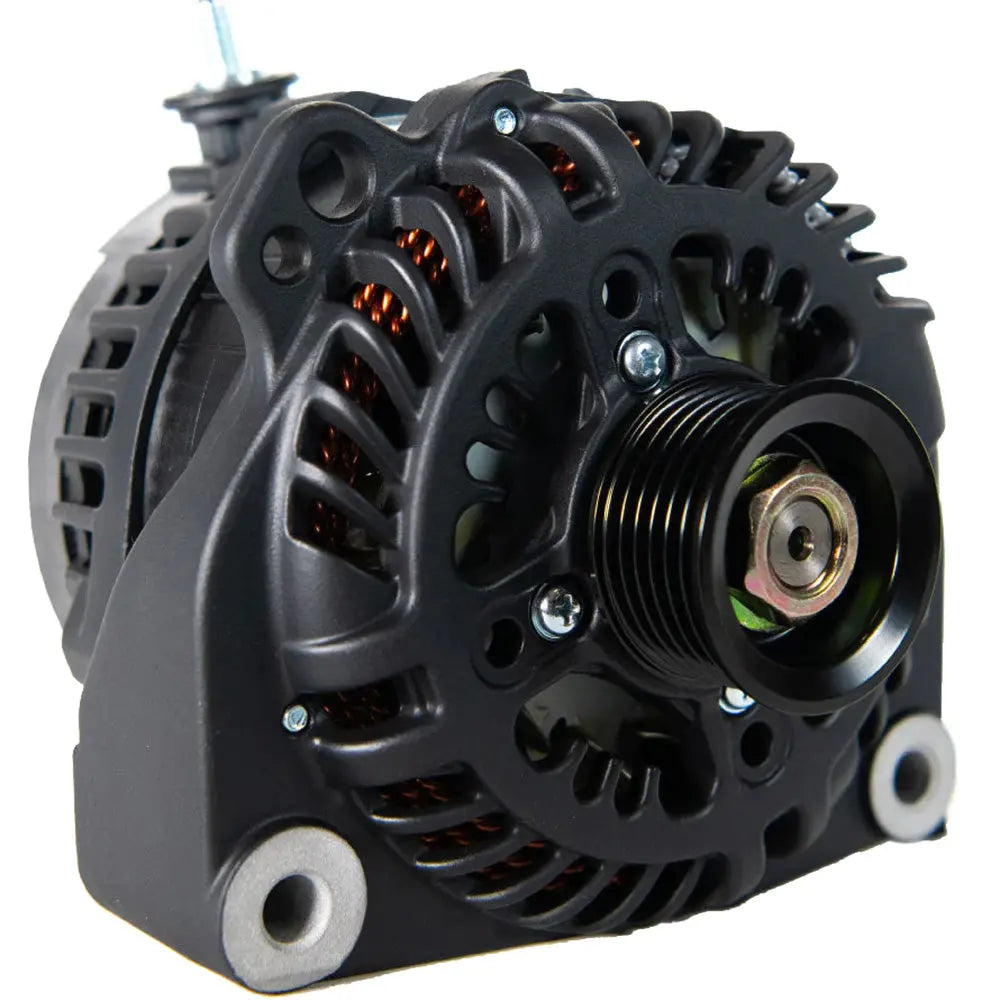

ARCO Marine Zeus A225S Vortec Alternator with Regulator for Marine and Commercial Applications

Zeus A225S Vortec Alternator with Regulator

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.
• Suitable for Marine, RV, Military, and Commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM Components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.
• For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12v
• Field Type - P
• Rotor Poles - 16
• Stator Size - 130mm
• Frame Size - Small
• Weight - 12lbs/6.7kg
• Regulation - Internal/External
• Output Voltage - 14.1v (default)
• Finish - (Black) Cerakote or E-coating
• Cut-In RPM - 1,061 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) - 254 Amps
• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps

Mounting Application:

• Replaces Mando type alternators using Vortec/ GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.) (GM Blocks)

The ARCO Marine Zeus A225S Vortec Alternator with Regulator is engineered to deliver the highest power output in its size and class, making it ideal for demanding marine, RV, military, and commercial applications. This alternator is designed to rapidly charge large battery banks, ensuring reliable power supply during extended operations. Its advanced cooling system, including heat shedding coatings, exterior-mounted rectifier, and dual cooling fans, maintains operating temperatures 8 to 20% cooler than traditional alternators, which enhances overall performance and longevity. This cooling efficiency allows the alternator to sustain higher amperage output over longer periods, especially when used with an ARCO Zeus Bluetooth regulator for maximum performance or lithium battery charging.

Features:

• Engineered for high energy production and peak performance.

• Suitable for marine, RV, military, and commercial applications.

• Rapidly charges large battery banks to ensure consistent power.

• Runs 8 - 20% cooler than incumbent alternators due to heat shedding coatings, exterior rectifier, and dual cooling fans.

• Constructed with OEM components for durability and reliability.

• Optimized for performance at idle speeds to reduce engine load.

• Reduces reliance on generators by creating additional power directly from your engine.

• Advanced coating (E-Coat/Cerakote) absorbs less heat, maintaining cooler operation and higher amperage output.

• Compatible with ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.

• SAE J1171 certified for safety and quality standards.

• Proudly manufactured in the USA to ensure high quality and craftsmanship.
