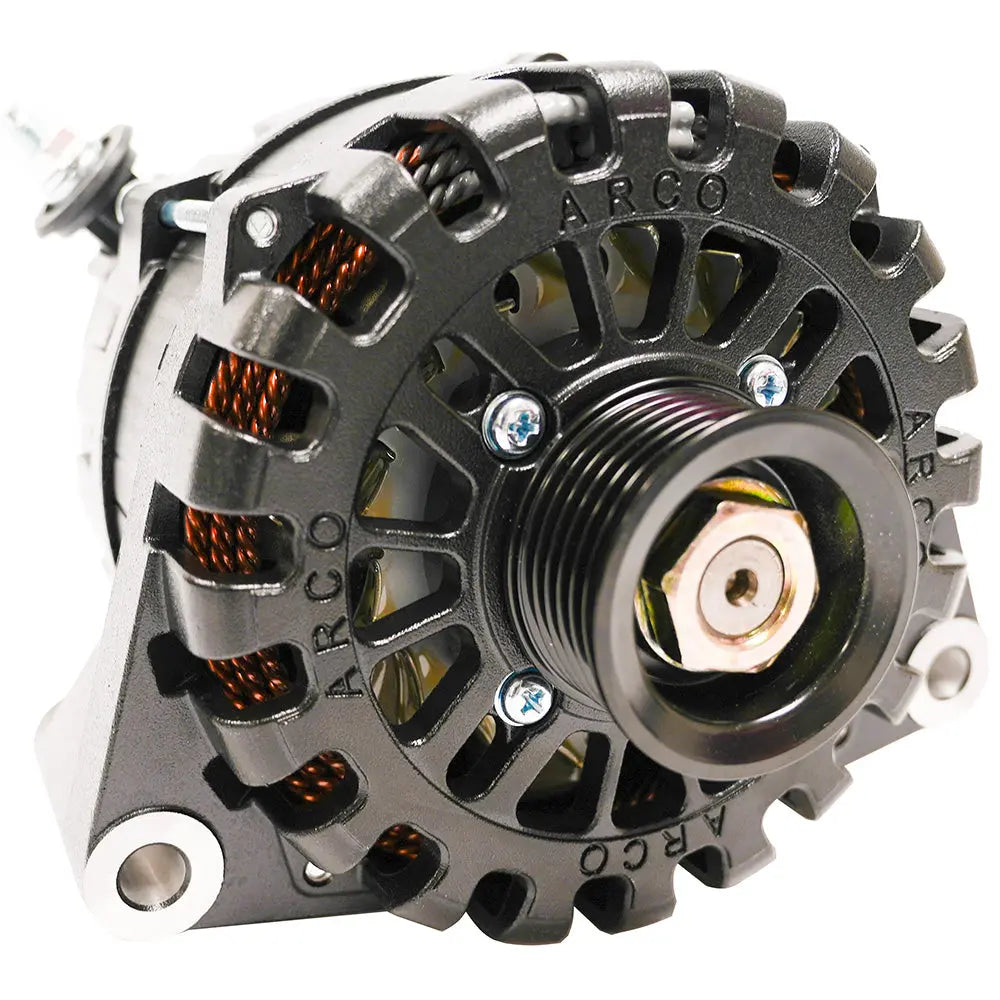

Zeus A275L N62 Alternator with Clutch Pulley Regulator
The highest power output alternator in its size/class.
Features:
- Engineered for High Energy Production.
- Suitable for Marine, RV, Military, and Commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM Components
- It is optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
- Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 14.9 lbs/6.7 kg
- Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
- Output Voltage - 14.1v (Default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 311 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
- Max Continuous Operating Temperature - 110C / 230F
Mounting Application:
- Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The ARCO Marine Zeus A275L N62 Alternator delivers the highest power output within its size class, making it an ideal choice for demanding marine, RV, military, and commercial applications. Engineered for high energy production, this alternator rapidly charges large battery banks and maintains peak performance even during extended operation. Its advanced design ensures cooler operation, running 8 to 20% cooler than traditional models thanks to heat shedding coatings, exterior-mounted rectifier, dual cooling fans, and OEM-grade components. These features contribute to increased durability and consistent output, especially useful when powering multiple systems or during prolonged use. The alternator is optimized for performance at idle speeds, reducing reliance on external generators and maximizing engine efficiency. With the addition of an E-Coat/Cerakote coating, it absorbs less heat, which helps sustain high amperage output over longer periods. For enhanced performance and lithium battery charging capabilities, an ARCO Zeus Bluetooth regulator can be used. Certified SAE J1171 and made in the USA, the A275L is built to meet rigorous standards for quality and reliability. Its robust construction includes a 12-volt system, 16 rotor poles, a 138mm stator, and a large frame size, with a weight of approximately 15 pounds. The alternator features an internal regulation system with an optional external regulation adaptor, and it provides a default voltage of 14.1 volts. It includes a 6-groove pulley, threaded shaft, and high-capacity diodes rated at 50A, capable of delivering up to 311 amps at cold start and maintaining over 200 amps during hot cruising conditions. Designed for Mercedes Sprinter models from 1999 onward, it also serves as a replacement for factory dual alternators in various applications. The unit's durable finish options include Cerakote or E-coating, ensuring long-lasting performance in harsh environments. With a maximum operating temperature of 110°C (230°F), this alternator is built for demanding operational conditions, providing reliable power for your vehicle or equipment needs.
Features:
- Engineered for high energy production and rapid battery charging
- Suitable for marine, RV, military, and commercial applications
- Runs 8-20% cooler than incumbent alternators due to heat shedding coatings and dual cooling fans
- Optimized for performance at idle speeds to reduce generator dependency
- Advanced coating absorbs less heat, allowing for sustained high amperage output
- Compatible with ARCO Zeus Bluetooth alternator regulator for enhanced performance
- SAE J1171 Certified for quality and reliability
- Made in the USA with OEM-grade components
- Robust construction with high-capacity diodes and high maximum current output
- Designed for Mercedes Sprinter models from 1999 and later, including factory dual alternator replacements
