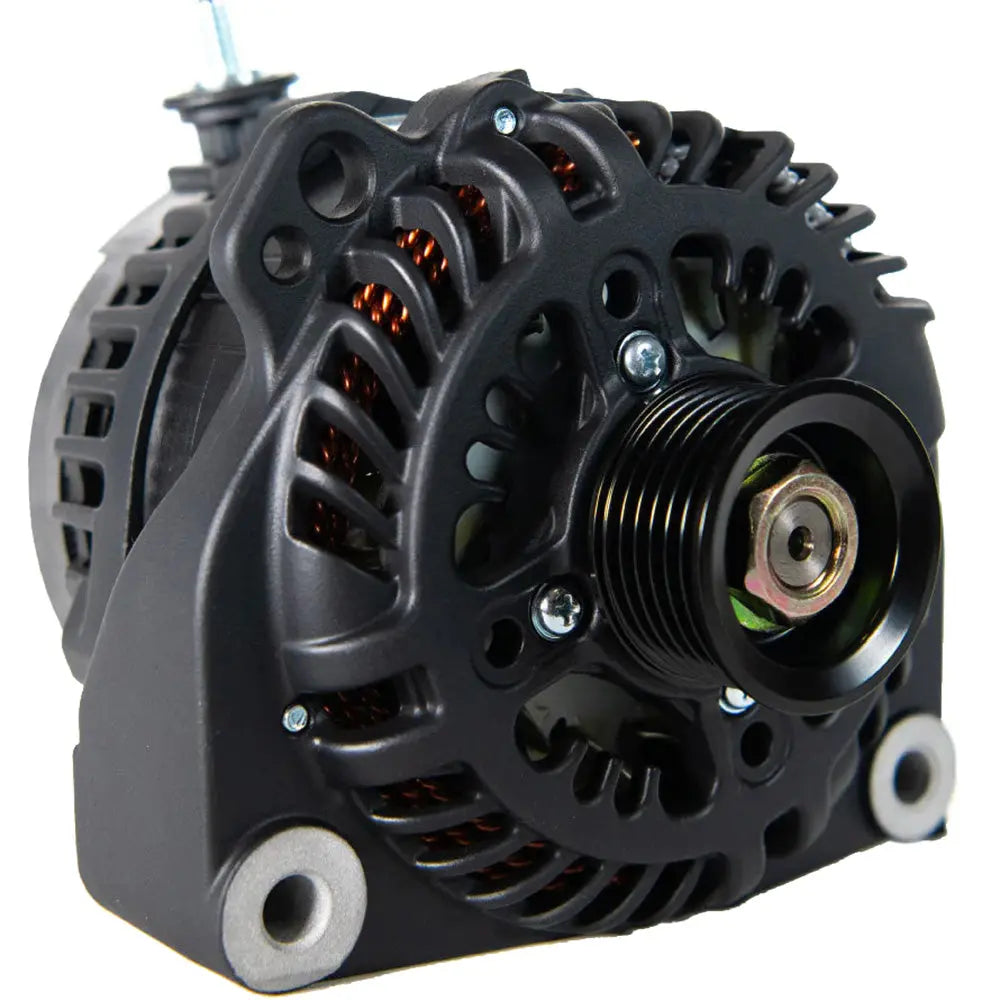

Zeus A275L Vortec Alternator with Terminal Block
The highest power output alternator in its size/class.
Features:
- Engineered for High Energy Production.
- Suitable for Marine, RV, Military, and Commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance.
- Runs 8 - 20% cooler than incumbent alternators due to: Heat shedding coatings, Rectifier located on housing exterior, Dual cooling fans, and OEM Components.
- It is optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
- Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.
- SAE J1171 Certified.
- Made in the U.S.A.
Technical Specifications:
- Voltage - 12v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 14.9 lbs/6.7 kg
- Regulation - External Only (These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.)
- Output Voltage - 14.1v (Default)
- Finish - (Black) Cerakote or E-coating
- Cut-In RPM - 1,061 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) - 311 Amps
- Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
- Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
- Max Continuous Operating Temperature - 110C / 230F
Mounting Application:
- Replaces Mando-type alternators using Vortec/GM pad mounting feet. (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines.) (GM Blocks)
The ARCO Marine Zeus A275L Vortec Alternator is engineered for maximum power output in a compact size, making it ideal for marine, RV, military, and commercial applications. Designed to rapidly charge large battery banks, this alternator ensures your systems stay energized even during demanding operations. Its advanced cooling features, including heat shedding coatings, exterior-mounted rectifiers, dual cooling fans, and OEM-grade components, enable it to run 8 to 20% cooler than traditional alternators, which translates into increased performance and longevity. The A275L is optimized for performance at idle speeds, reducing engine load while delivering high amperage, thus minimizing the need for auxiliary generators. The use of E-Coat/Cerakote coating enhances heat dissipation, allowing the alternator to sustain high output levels over extended periods. For maximum efficiency, pairing with an ARCO Zeus Bluetooth alternator regulator or lithium battery charger unlocks additional performance benefits, making it suitable for demanding power needs. Certified to SAE J1171 standards and proudly made in the USA, this alternator offers reliable, high-capacity power suitable for a variety of demanding environments.
Technical specifications include a 12V output, 16-pole rotor, and a large 138mm stator size. Weighing approximately 15 pounds, it features a black Cerakote or E-coating finish for durability. The alternator operates efficiently at a cut-in RPM of about 1,061 and can reach maximum RPMs of 19,000, with a maximum cold output of 311 amps. Its design includes a side-mounted M8 battery post, a 6-groove pulley, and provisions for external regulation with a terminal block and P-type harness. The unit's diodes are avalanche-rated, ensuring reliable operation under high current loads. Overall, the ARCO Marine Zeus A275L Vortec Alternator provides exceptional performance, durability, and versatility for demanding power applications in marine and industrial settings.
Features:
- Engineered for high energy production and maximum power output
- Suitable for marine, RV, military, and commercial applications
- Rapidly charges large battery banks for extended operation
- Runs 8 to 20% cooler than traditional alternators due to advanced heat shedding coatings and dual cooling fans
- Optimized for performance at idle speeds to reduce engine load
- Reduces reliance on auxiliary generators by creating additional power with your engine
- Advanced E-Coat/Cerakote coating absorbs less heat, maintaining cooler operation and sustained amperage
- Compatible with ARCO Zeus Bluetooth alternator regulators and lithium battery chargers for enhanced performance
- SAE J1171 certified for reliable heavy-duty use
- Made in the USA with high-quality OEM components
