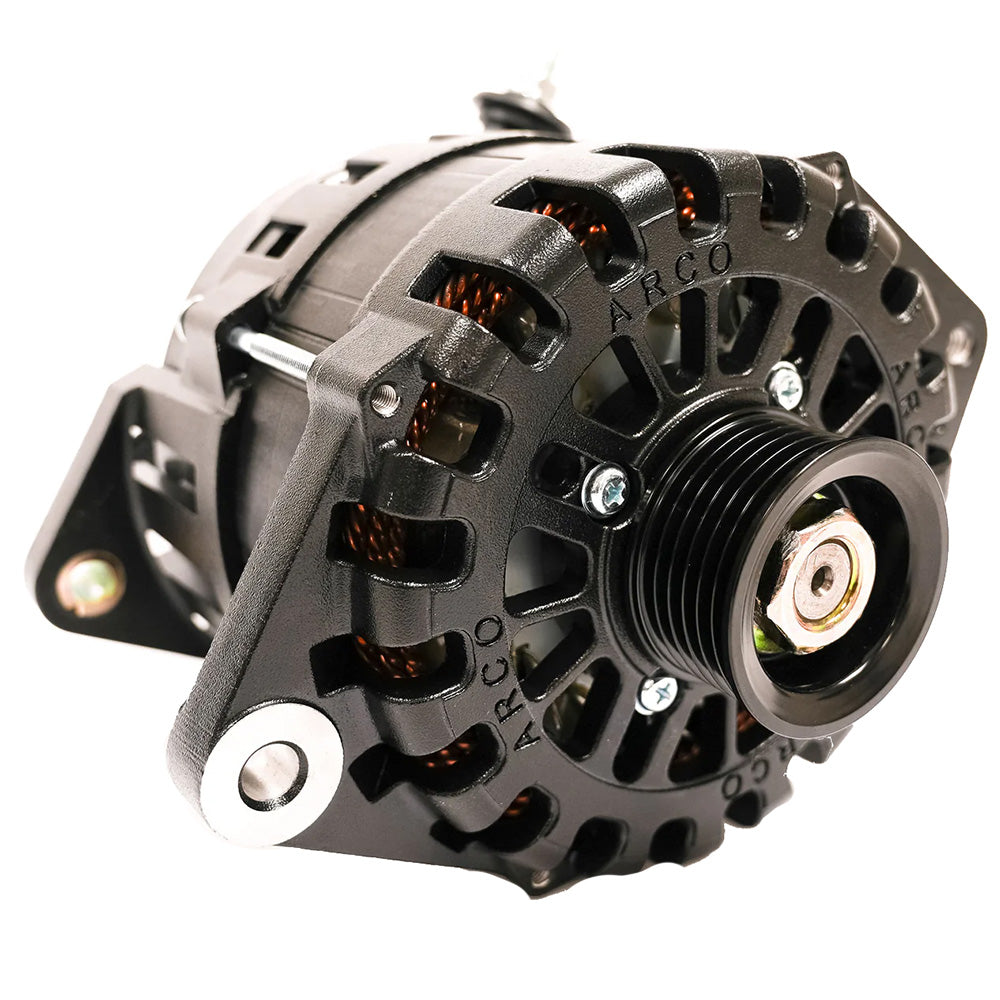

ARCO Marine Zeus A8000-48V 8kW Alternator with Isolated Ground for Common Rail Engines

Zeus A8000-48V 8kW 3.15 Alternator with Isolated Ground (Common Rail)

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

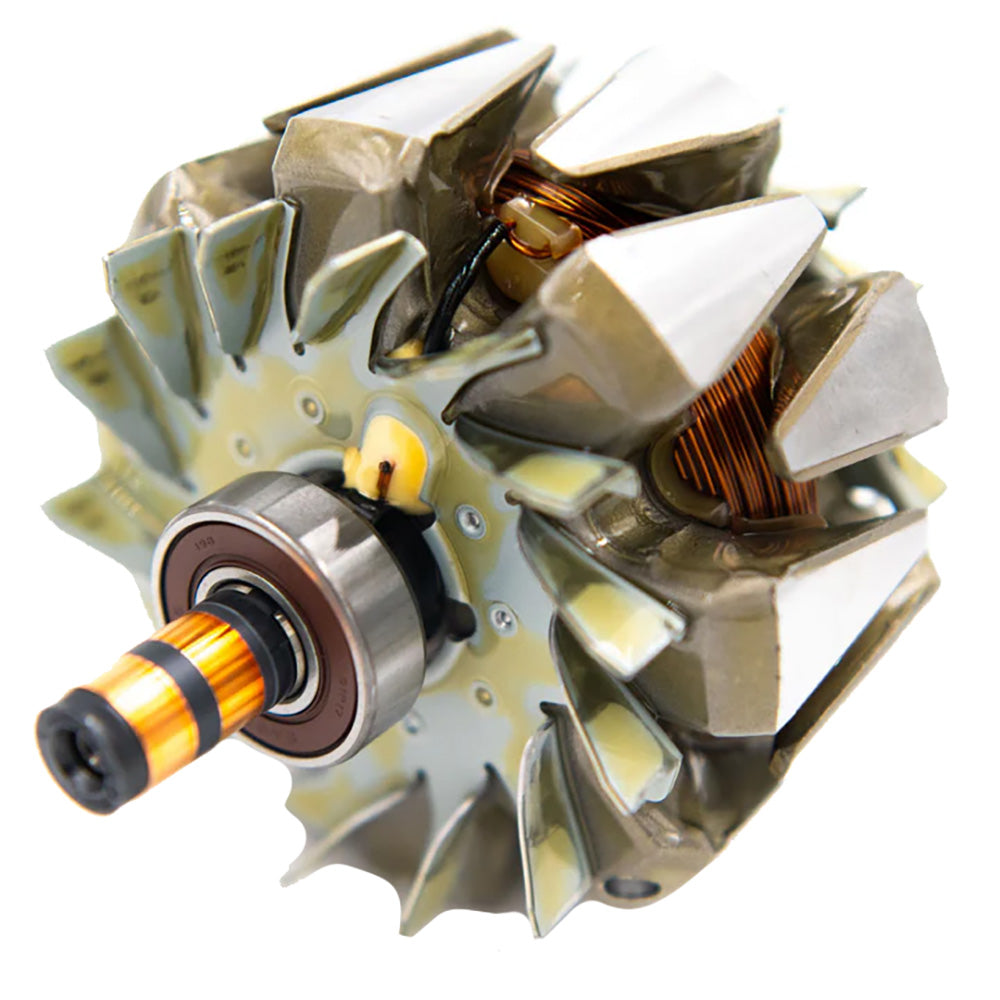

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings

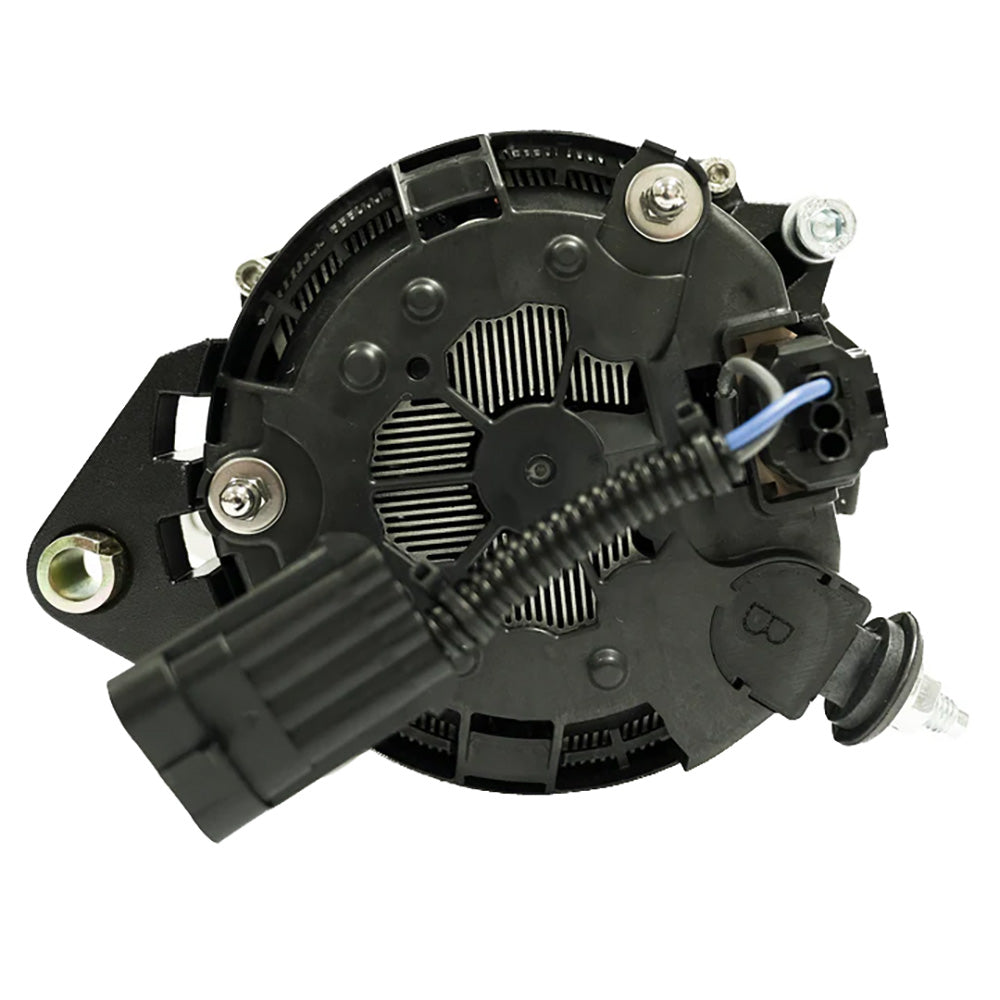

• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v
• Field Type - P
• Rotor Poles - 16

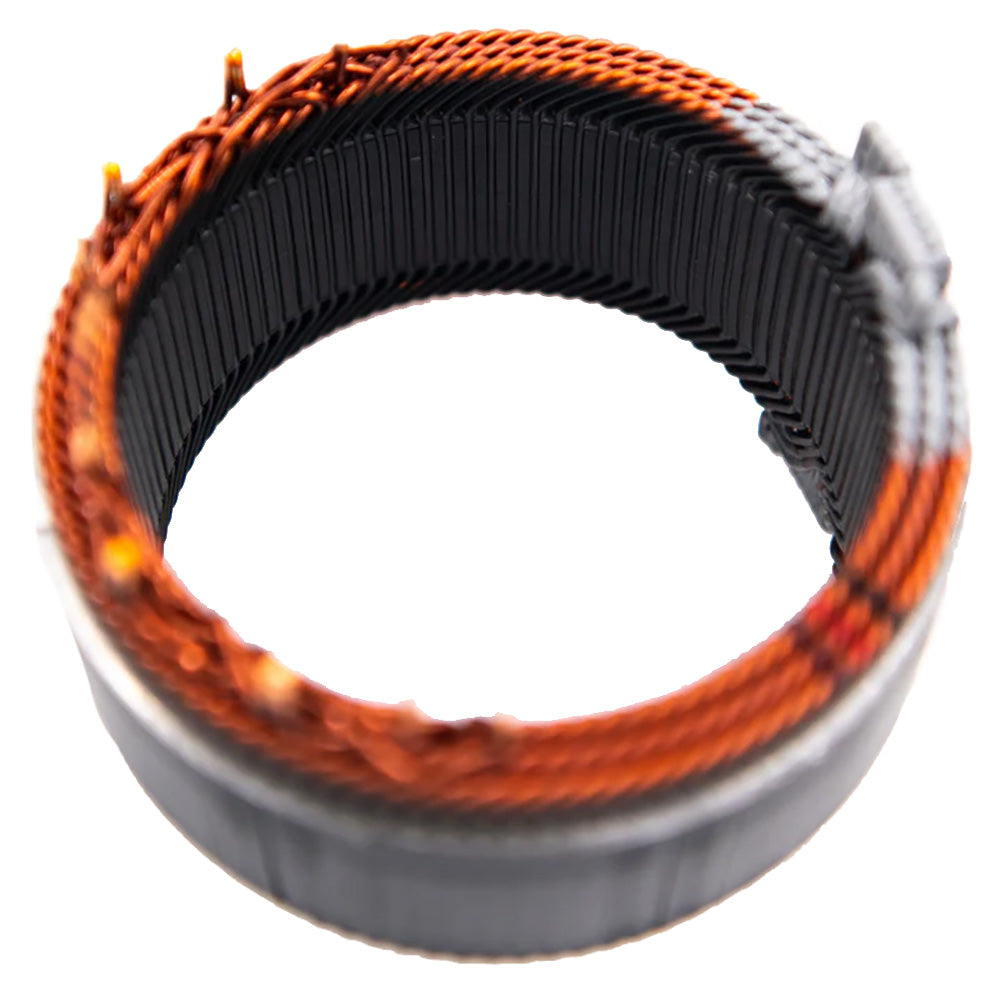

• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,920 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Must Be Used on Yanmar Common Rail Engines Introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110).

The ARCO Marine Zeus A8000-48V alternator is designed for high-performance energy generation in marine, RV, military, and commercial applications. It delivers over 3kW (55 Amps) at just 2,500 RPM and nearly 6kW (111 Amps) at 4,000 RPM, providing reliable power for large battery banks and reducing the need for a separate generator. Its advanced design ensures efficient operation at lower RPMs, resulting in cooler running temperatures and extended component lifespan. The alternator features a native 48V rotor and field current, optimizing performance without the inefficiencies common in competitors that use 12V rotors, which can lead to system damage if not properly regulated. The heat-shedding coatings, exterior rectifier placement, and dual cooling fans contribute to its superior thermal management, enabling sustained high amperage output even during extended operation. Designed for easy integration, the ARCO Zeus A8000-48V includes standard components such as a 49mm multi-groove pulley, M8 side mount battery post, and avalanche-rated diodes. It is SAE J1171 certified and proudly manufactured in the USA, ensuring quality and durability. This alternator is particularly suitable for use on Yanmar common rail engines introduced after 2013, including models like JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, and 4JH110, making it an ideal upgrade for demanding power systems. The optional Bluetooth regulator and compatibility with lithium batteries further enhance its versatility, allowing users to maximize performance and battery efficiency in various operational environments.

Features:

• Engineered for high energy production and reliable performance across marine, RV, military, and commercial applications

• Rapidly charges large battery banks with sustained high amperage output

• Operates cooler than competitors due to heat-shedding coatings, exterior rectifier, and dual cooling fans

• Native 48V rotor and field current for increased efficiency and longevity

• Includes OEM components such as multi-groove pulley, M8 side mount post, and avalanche-rated diodes

• Optimized for performance at idle speeds with advanced thermal management features

• Reduces reliance on external generators by generating additional power directly from engine RPM

• E-Coat/Cerakote finish keeps the alternator cooler for prolonged high-performance operation

• Compatible with ARCO Bluetooth Alternator Regulator for maximum control and lithium battery charging

• SAE J1171 certified for quality assurance and durability

• Proudly made in the USA to ensure high manufacturing standards
