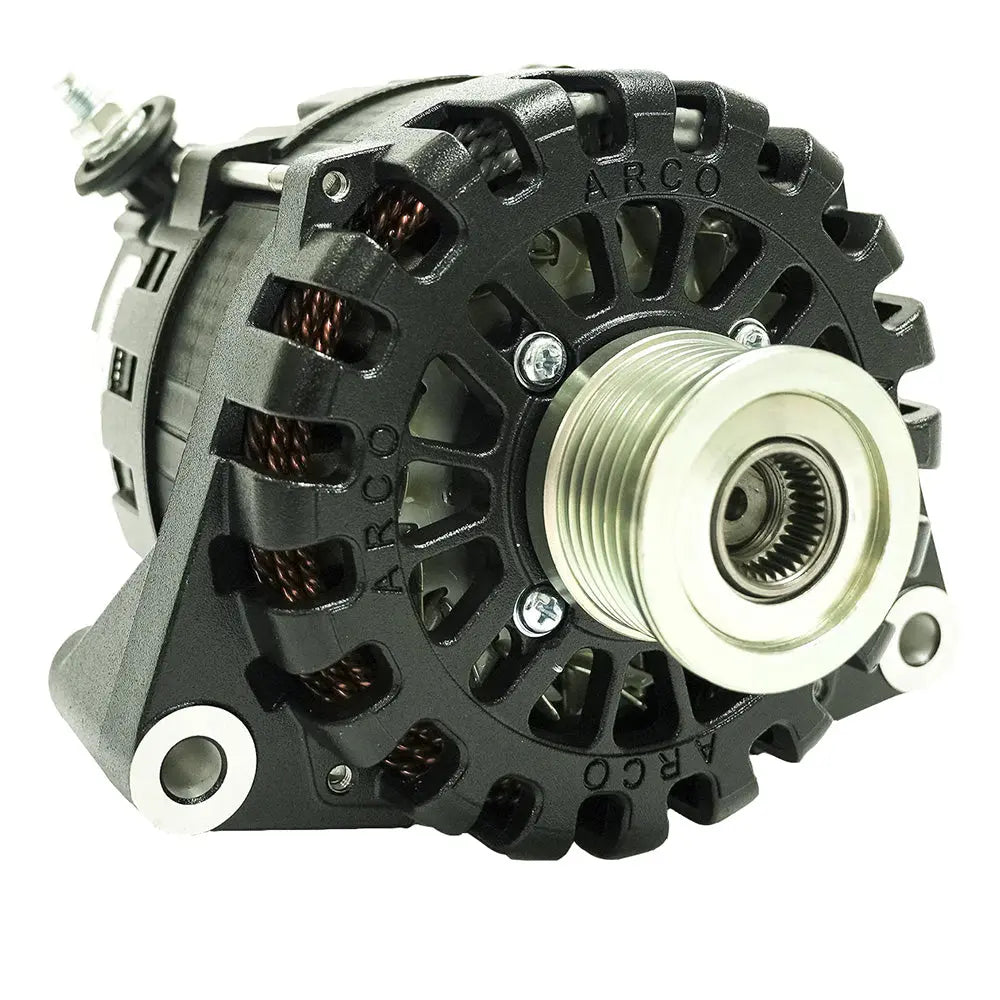

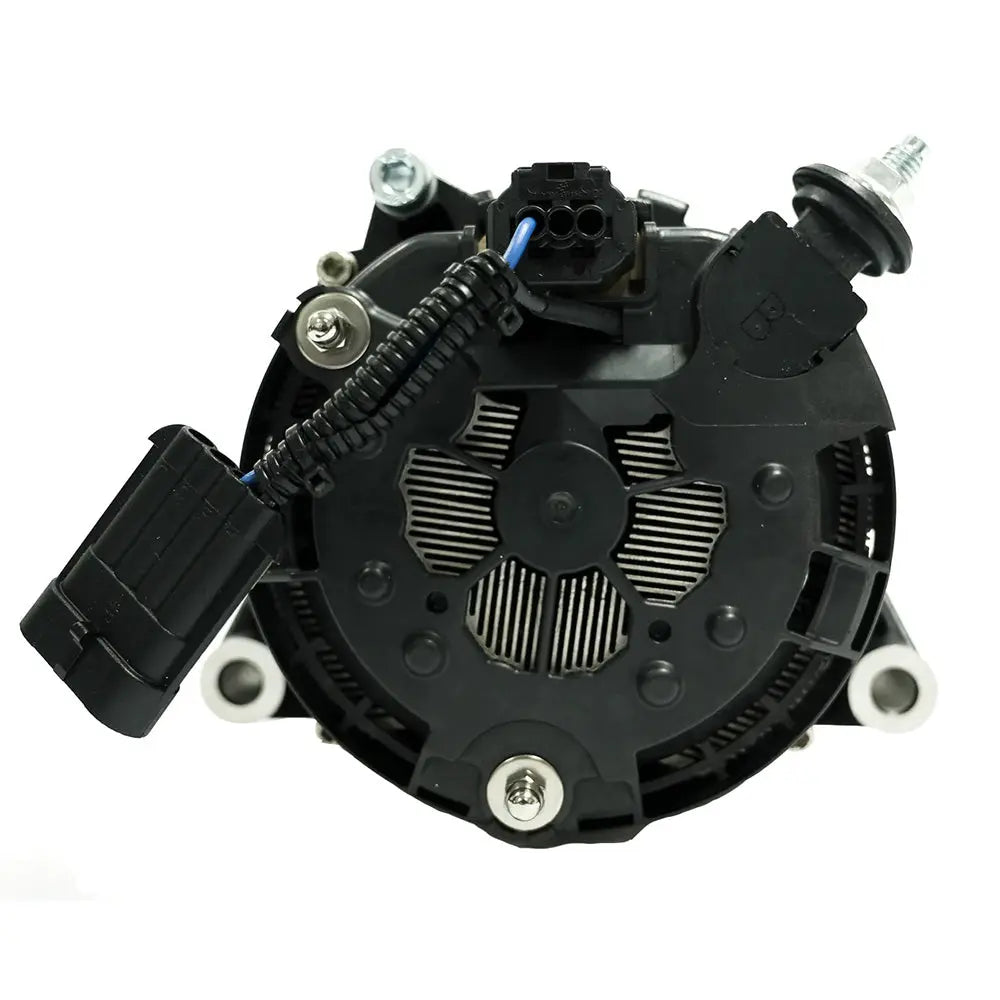

Zeus A8000-48V 8kW Ford Transit Alternator with Isolated Ground K6 Pulley
ARCO Zeus 48V Advantage. Better Technology = Better Performance. High Output/High Amperage Alternator: The Highest Power Output in Its Class.
A8000-48V Advantage
The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!
True 24V Alternators
Instead of using rotors designed for 48 volts, many competitors alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.
Features:
- Replace your noisy generator!
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat-shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
- For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
Technical Specifications:
- Voltage - 48V
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 15.89lbs/7.2kg
- Regulation - External Only (EX)
- Finish - (Black) E-coating
- Cut-In RPM - 1,920 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
- Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
- Max Continuous Operating Temperature - 100C / 212F
The ARCO Marine Zeus A8000-48V alternator is engineered to deliver exceptional power output for Ford Transit vehicles, marine, RV, military, and commercial applications. This high-performance unit is designed to operate efficiently at lower RPMs, generating over 3,000 watts (55 amps) at 2,500 RPM and approaching 6,000 watts (111 amps) at 4,000 RPM, providing reliable power for demanding applications. Its robust construction and advanced technology ensure superior performance and longevity, even under continuous operation. The alternator’s design reduces heat buildup and operates cooler than comparable models, thanks to heat-shedding coatings, exterior-mounted rectifiers, and dual cooling fans, which collectively extend its lifespan and maintain high output levels.
Features:
- Replace your noisy generator with a reliable high-output alternator
- Engineered for high energy production and efficient charging
- Suitable for marine, RV, military, and commercial applications
- Rapidly charges large battery banks to ensure consistent power supply
- Operates at the coolest temperatures for increased performance with heat-shedding coatings and exterior rectifiers
- Dual cooling fans enhance heat dissipation and durability
- Uses OEM components for quality and reliability
- Optimized for performance even at idle speeds, reducing engine load
- Reduces dependency on external generators by generating additional power from your engine
- s E-Coat technology for cooler operation and sustained high amperage output
- Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance and lithium battery charging
