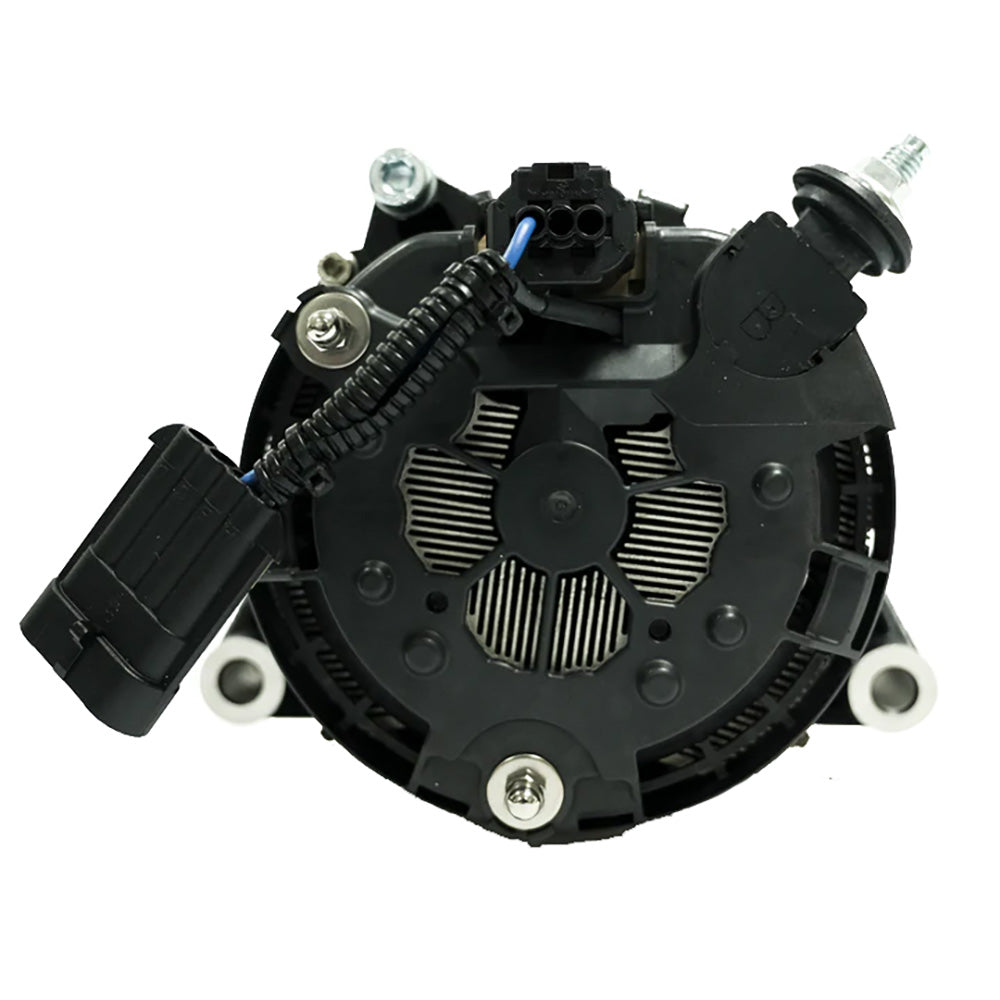

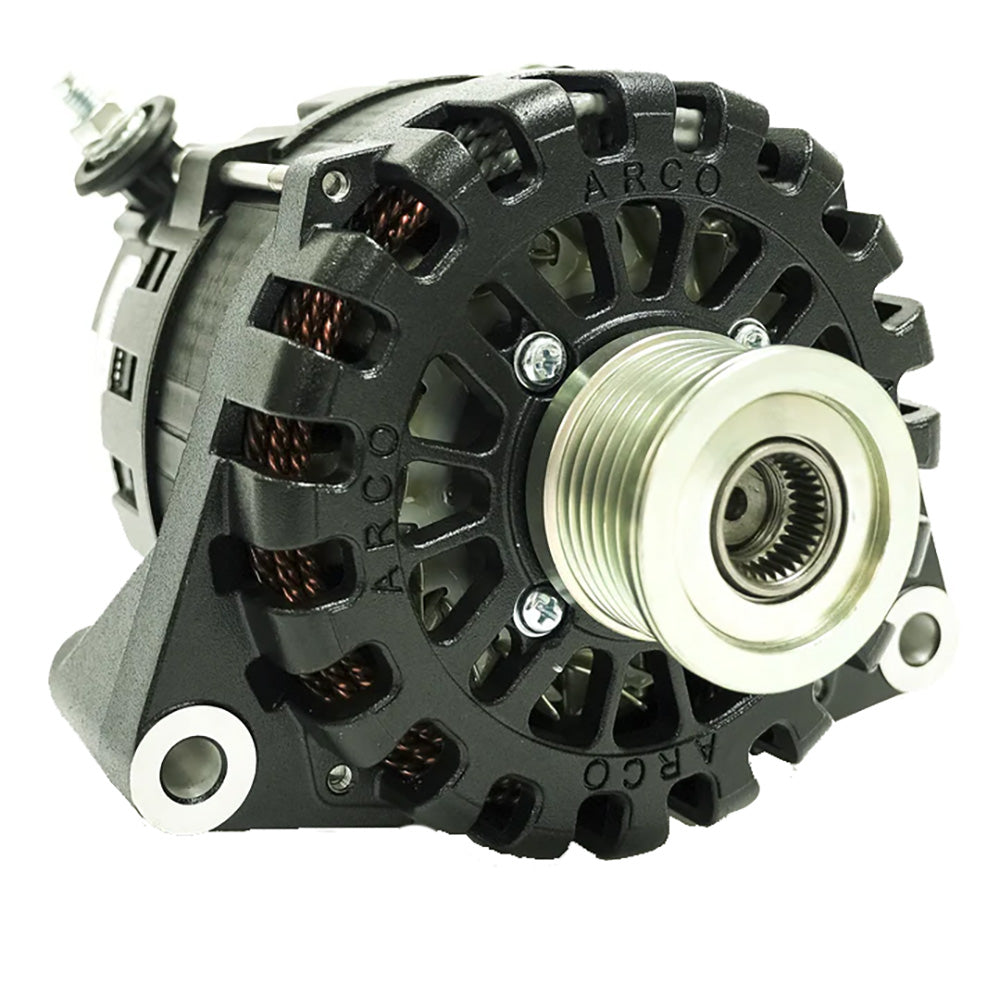

ARCO Marine Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley

Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

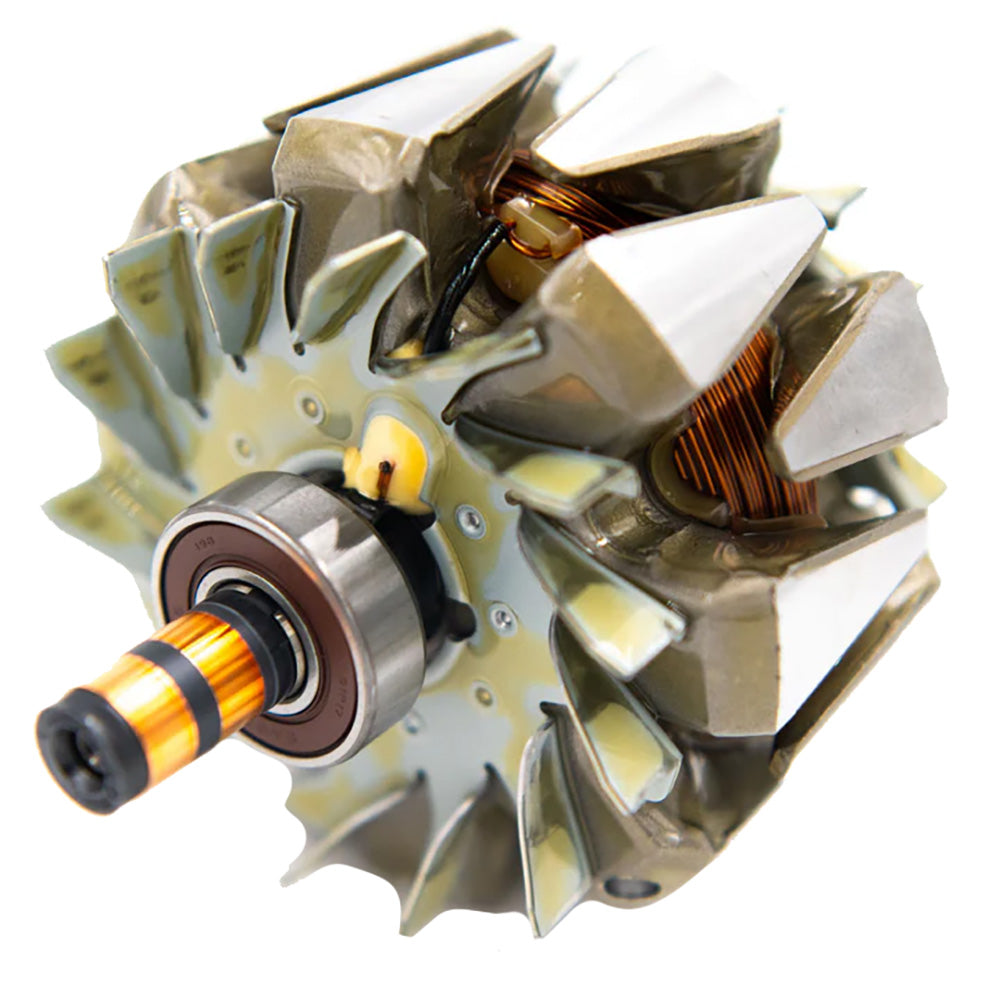

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:
• Heat shedding coatings
• Rectifier located on housing exterior
• Dual cooling fans
• OEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v
• Field Type - P
• Rotor Poles - 16

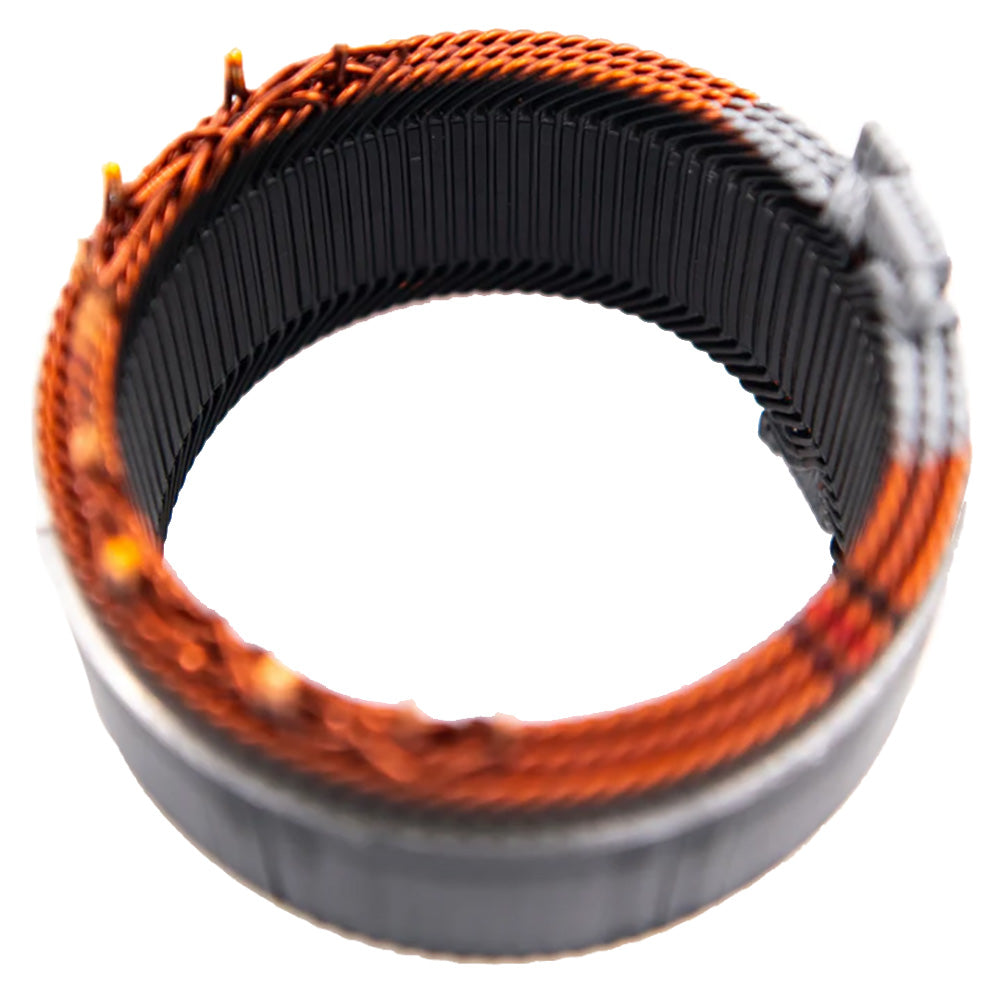

• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,920 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements.

The ARCO Marine Zeus A8000-48V alternator is engineered for high-performance energy generation in marine, RV, military, and commercial applications. It offers efficient power output at lower RPMs, producing over 3kW (55 Amps) at 2,500 RPM and nearly 6kW (111 Amps) at 4,000 RPM. This capability enables large battery banks to be charged rapidly, reducing reliance on generators and optimizing engine efficiency. The alternator is designed to operate cooler and longer, thanks to advanced heat shedding coatings, exterior-mounted rectifiers, and dual cooling fans, which help maintain peak performance even under demanding conditions. Its robust construction includes OEM components and an E-Coat/Cerakote finish, ensuring durability and sustained high amperage output. The unit's native 48V rotor field and intelligent regulation enhance efficiency and system safety, minimizing the risk of damage caused by improper regulator adjustments. Suitable for various engine setups, the Zeus A8000-48V can replace factory dual alternators on many Sprinter RVs, including models by Roadtrek, Thor, and Winnebago, meeting current Mercedes Upfitter weight and PTO standards. With its high power density, this alternator is ideal for applications where space and weight savings are critical. It features a 16-pole rotor, large stator, and a 49mm multi-groove pulley, optimized for high amperage output at idle and cruising speeds. The alternator is SAE J1171 certified and proudly manufactured in the USA, ensuring top-tier quality and regulatory compliance. The innovative design incorporates external regulation compatibility via Bluetooth for advanced performance tuning, making it a versatile choice for demanding power needs. Whether for marine, RV, or industrial use, the ARCO Zeus A8000-48V delivers reliable, efficient, and long-lasting power generation in a compact form factor.

Features:

• Engineered for high energy production and efficiency

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks with high amperage output

• Operates at cooler temperatures due to heat shedding coatings and dual cooling fans

• Exterior-mounted rectifier enhances durability and heat dissipation

• OEM components ensure reliability and longevity

• Optimized for high performance at idle speeds and variable RPMs

• Reduces the need for a separate generator by generating power directly from engine RPM

• Enhanced cooling with E-Coat/Cerakote technology for sustained high output

• Compatible with ARCO Bluetooth Alternator Regulator for advanced tuning and lithium battery charging

• SAE J1171 certified for safety and quality standards

• Made in the USA with high-quality materials and craftsmanship
