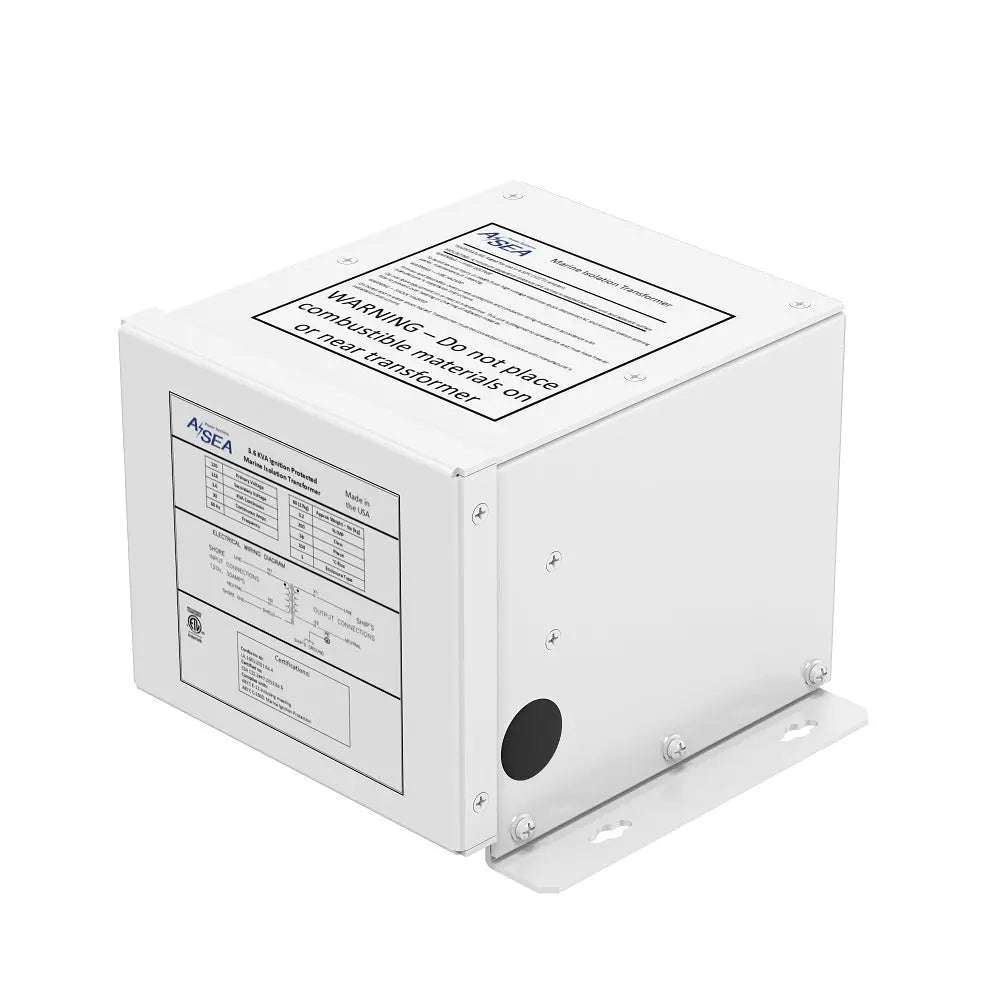

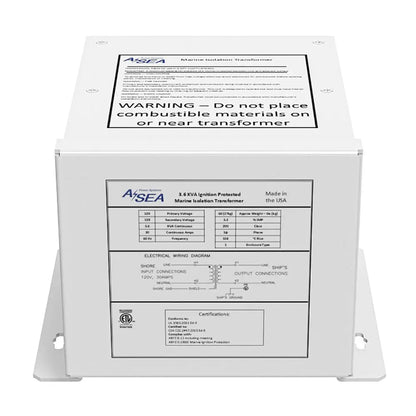

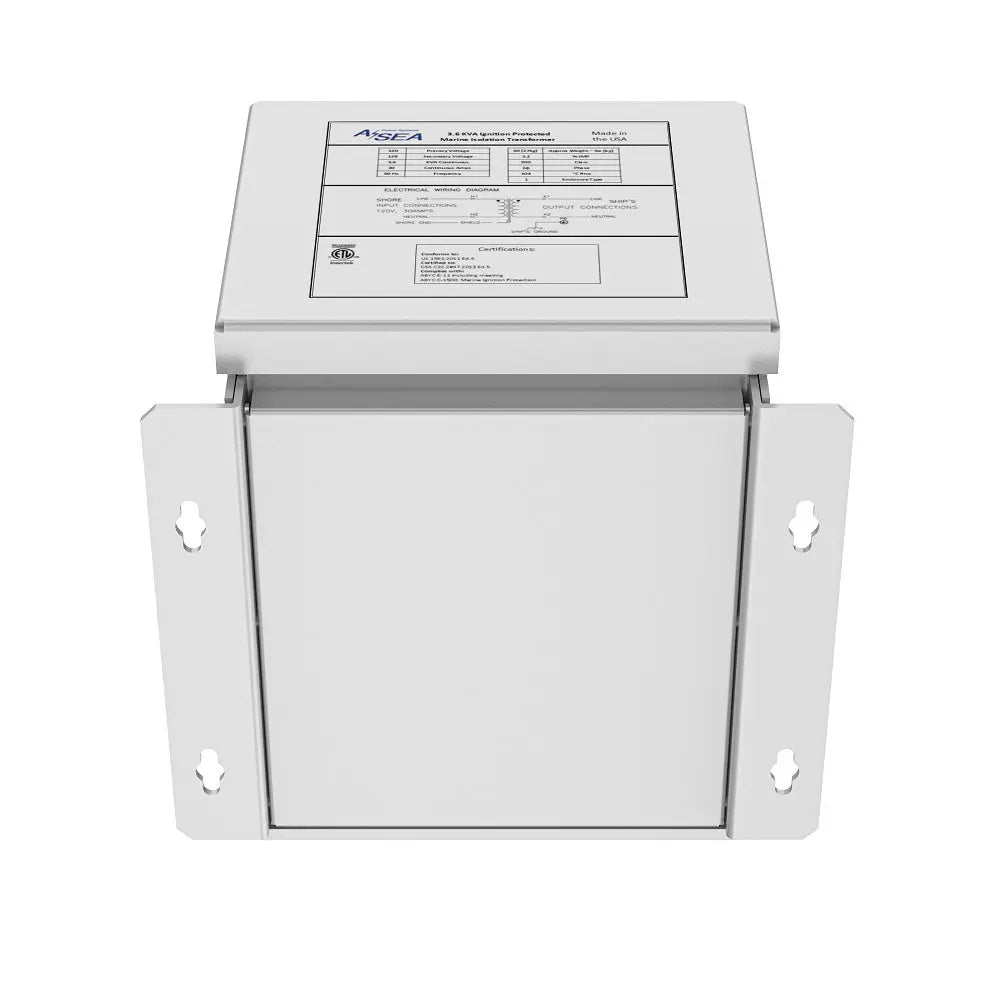

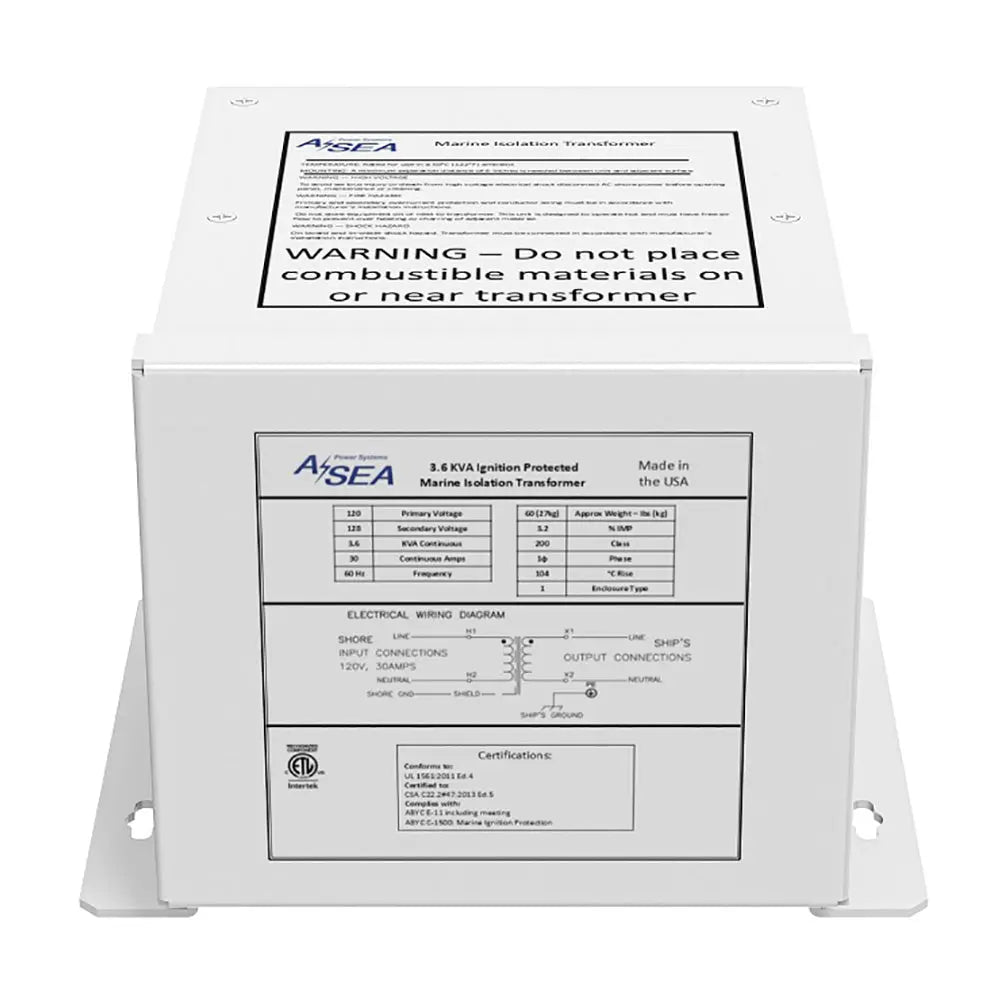

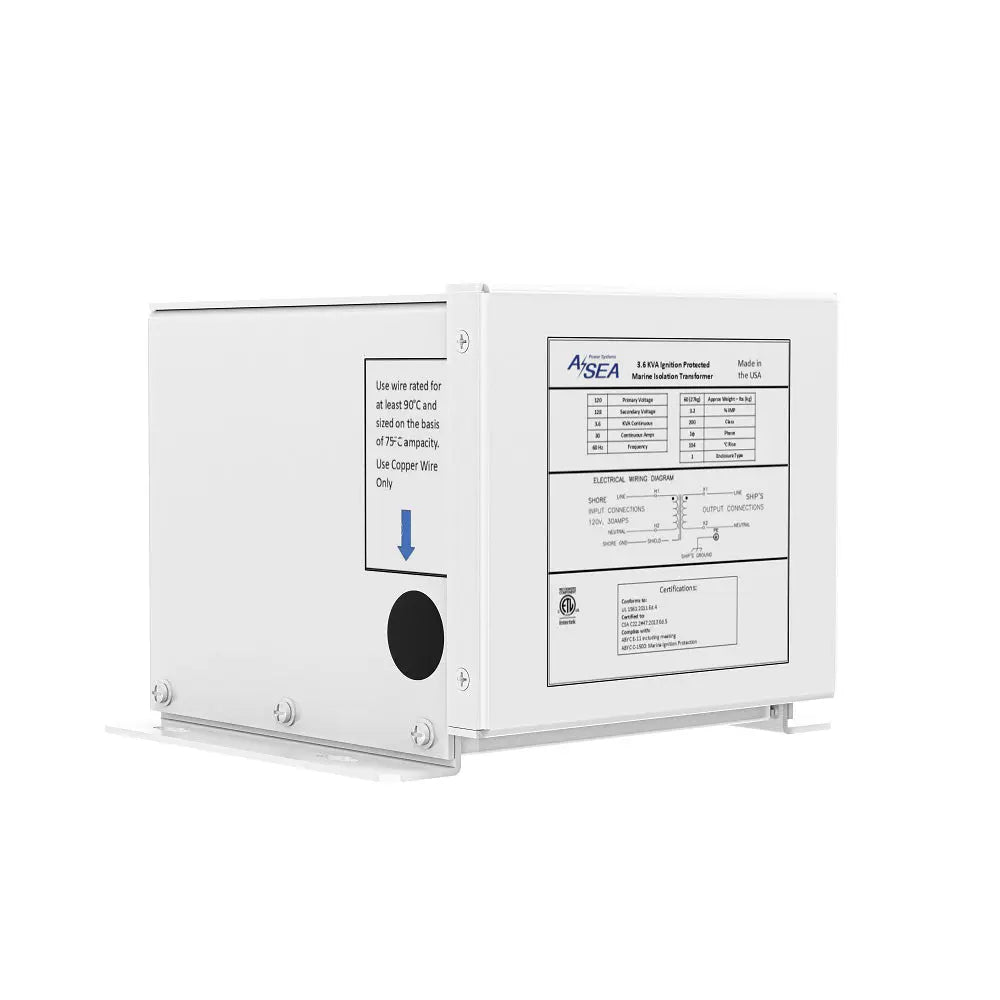

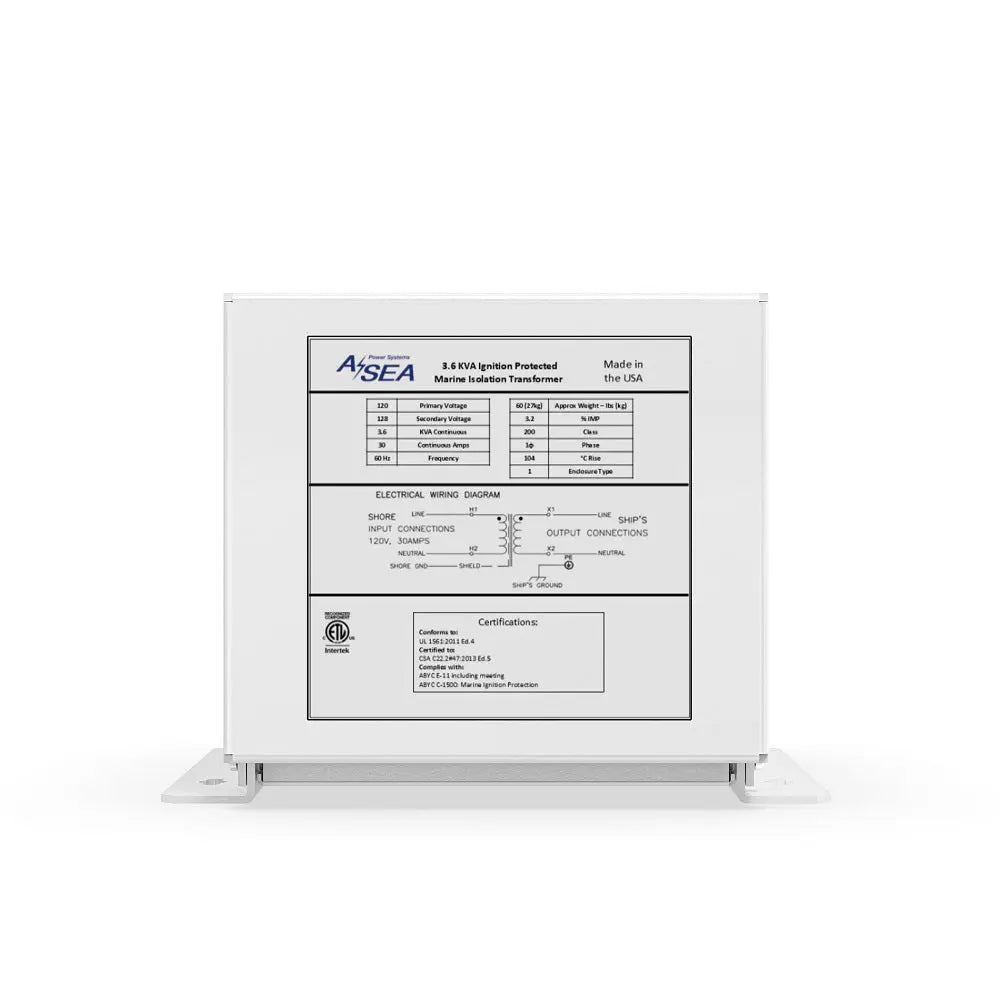

ASEA Power Systems 12 kVA Isolation Transformer for Marine Applications

12 kVA Isolation Transformer

ASEAs Isolation Transformer is a drop-in replacement for Charles IsoG2, designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.

Features:

• Ignition-protected, safe for gasoline-powered vessels
• Complete Electrical Isolation prevents dockside ELCI breaker trips
• Maintains a safer marine environment by mitigating the risk of ESD
• Ensures clean and stable AC power for on-board equipment
• Reduces galvanic corrosion
• Meets the latest NEC 555.35 marina code that ensures GFPE limits are not exceeded

Specifications:

• Input Voltage: 240VAC
• Input Current: 50 A
• Output Voltage: 240VAC
• Output Current: 50 A
• Output Frequency: 60 Hz
• Weight 160 lbs
• Height: 27cm / 10.6 in
• Width: 26cm / 10.2 in
• Width (with flange): 33 cm / 13 in
• Depth: 26.7 cm / 10.5 in

Certifications:

• ABYC E-11 Compliant
• ABYC C-1500 (for ignition protection)
• UL 1500 (for ignition protection)
• UL 1561

The ASEA Power Systems 12 kVA Isolation Transformer is a reliable and essential component for marine electrical systems, providing safe and stable power for vessels. Designed as a drop-in replacement for the Charles IsoG2, this transformer offers complete electrical isolation to protect onboard electronics from power fluctuations and shore power issues. Its ignition-protected design makes it suitable for gasoline-powered boats, ensuring safety in hazardous environments. By preventing galvanic corrosion and mitigating electrostatic discharge, this transformer helps maintain the integrity of vessel fittings and enhances overall safety. It also complies with the latest NEC 555.35 marina code, ensuring that GFPE limits are not exceeded for added safety and regulatory adherence.

Features:

• Ignition-protected, safe for gasoline-powered vessels

• Complete electrical isolation prevents dockside ELCI breaker trips

• Mitigates electrostatic discharge to promote a safer marine environment

• Provides clean and stable AC power for on-board equipment

• Reduces galvanic corrosion to protect vessel fittings

• Meets the latest NEC 555.35 marina code for safety compliance
