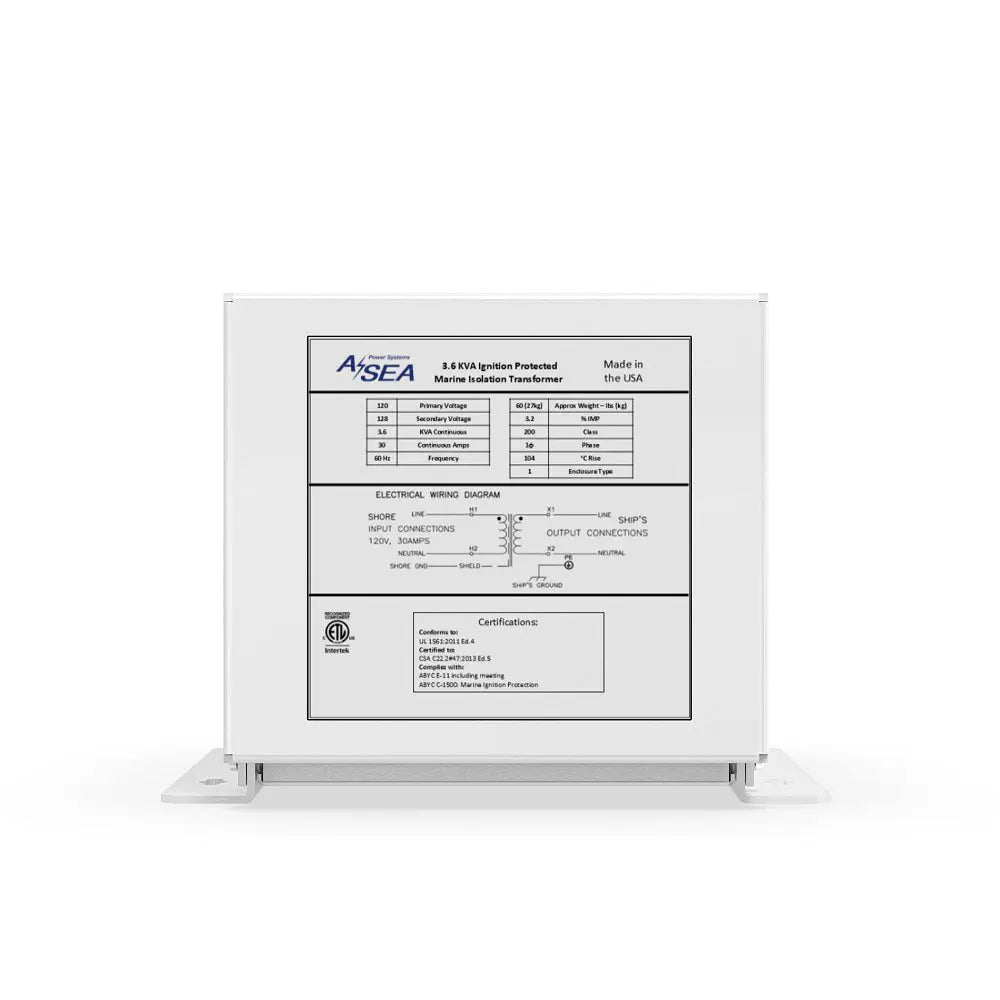

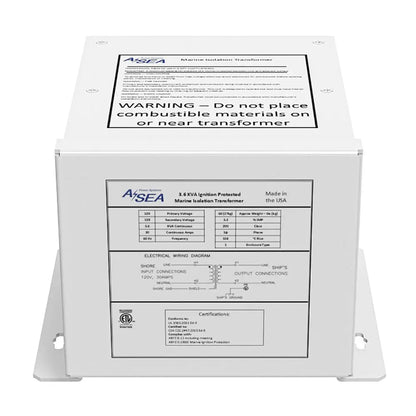

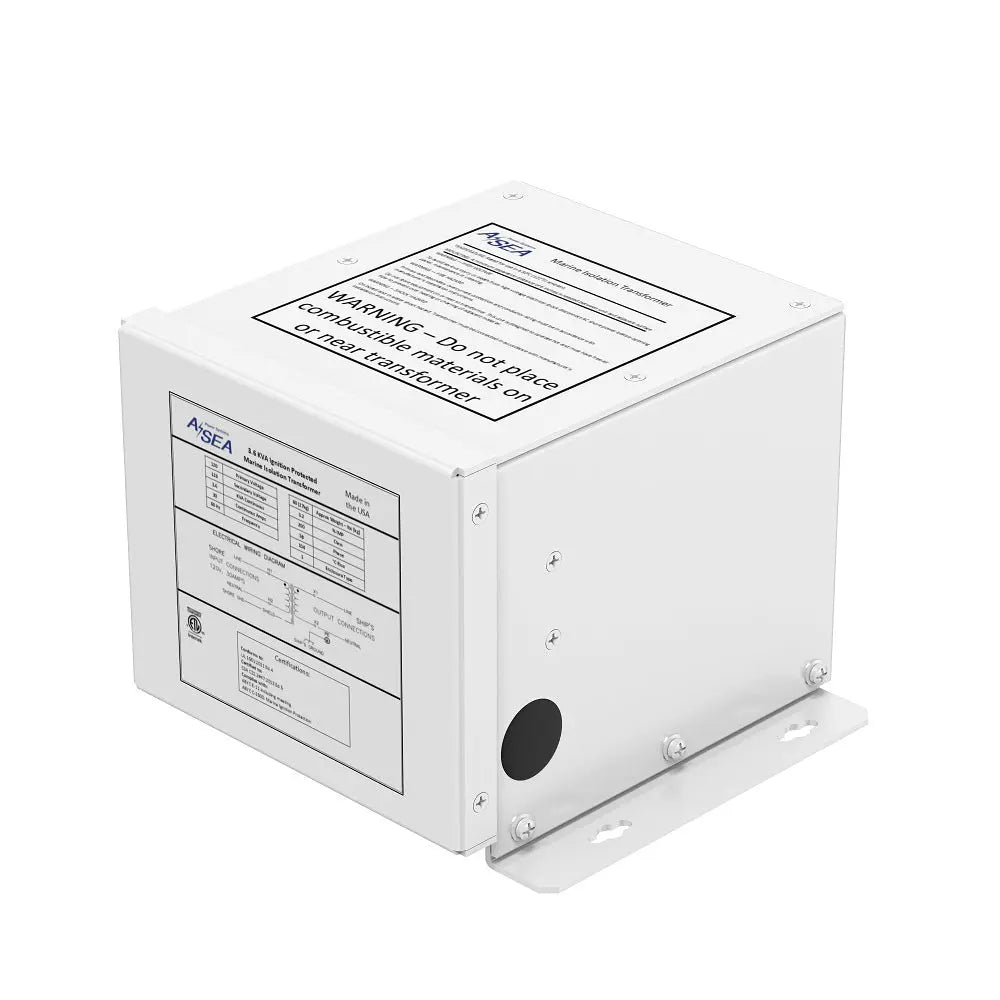

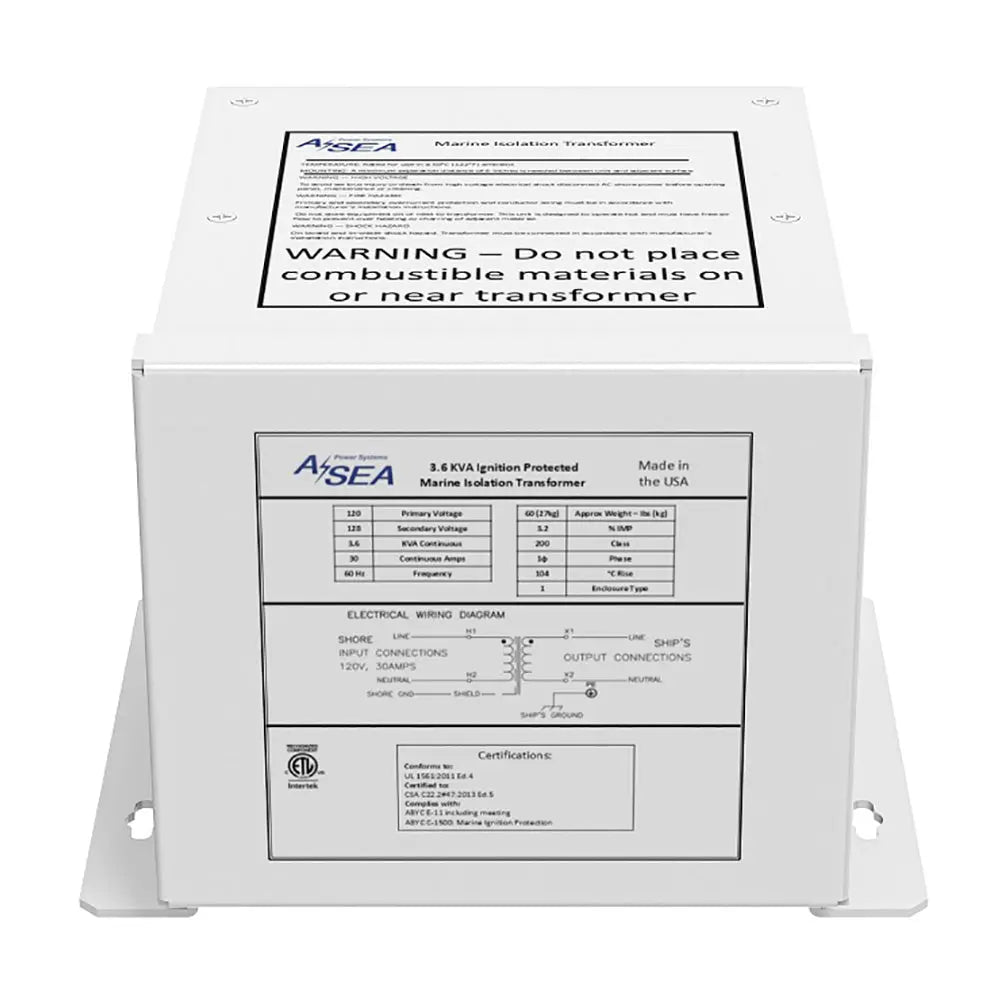

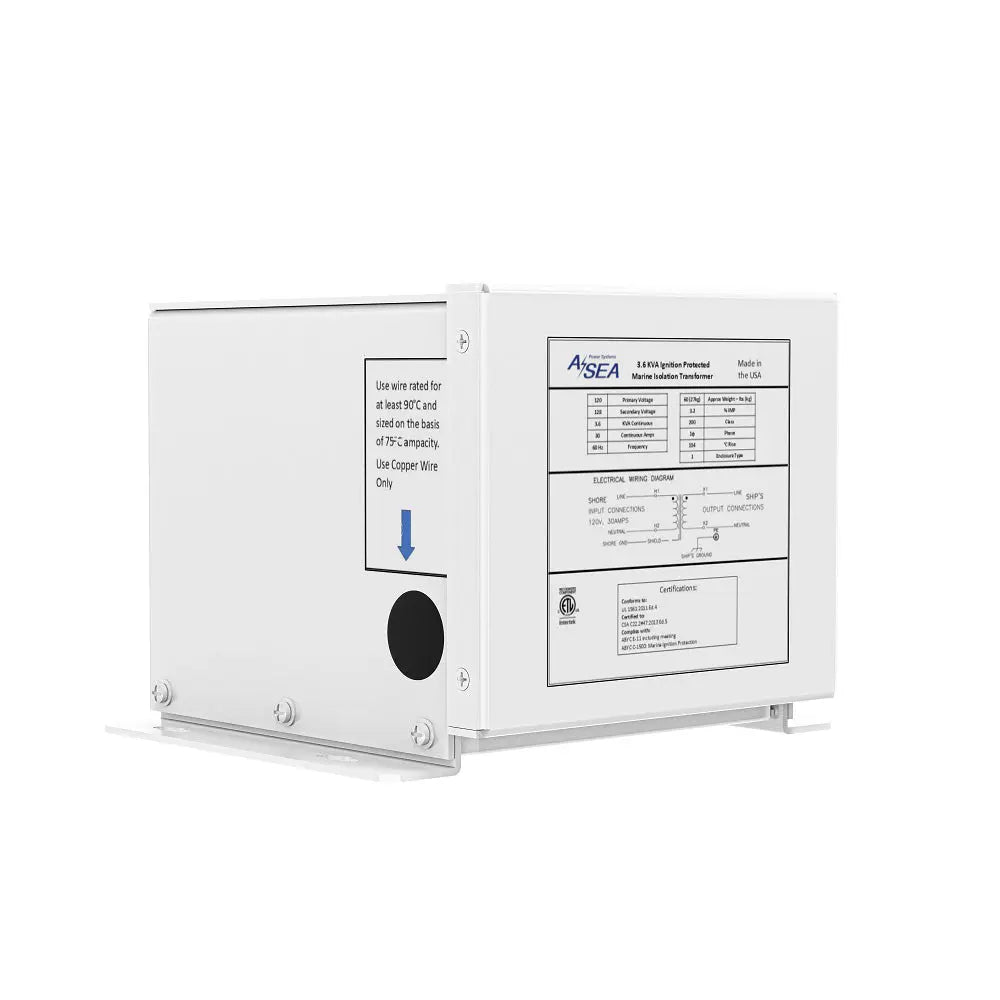

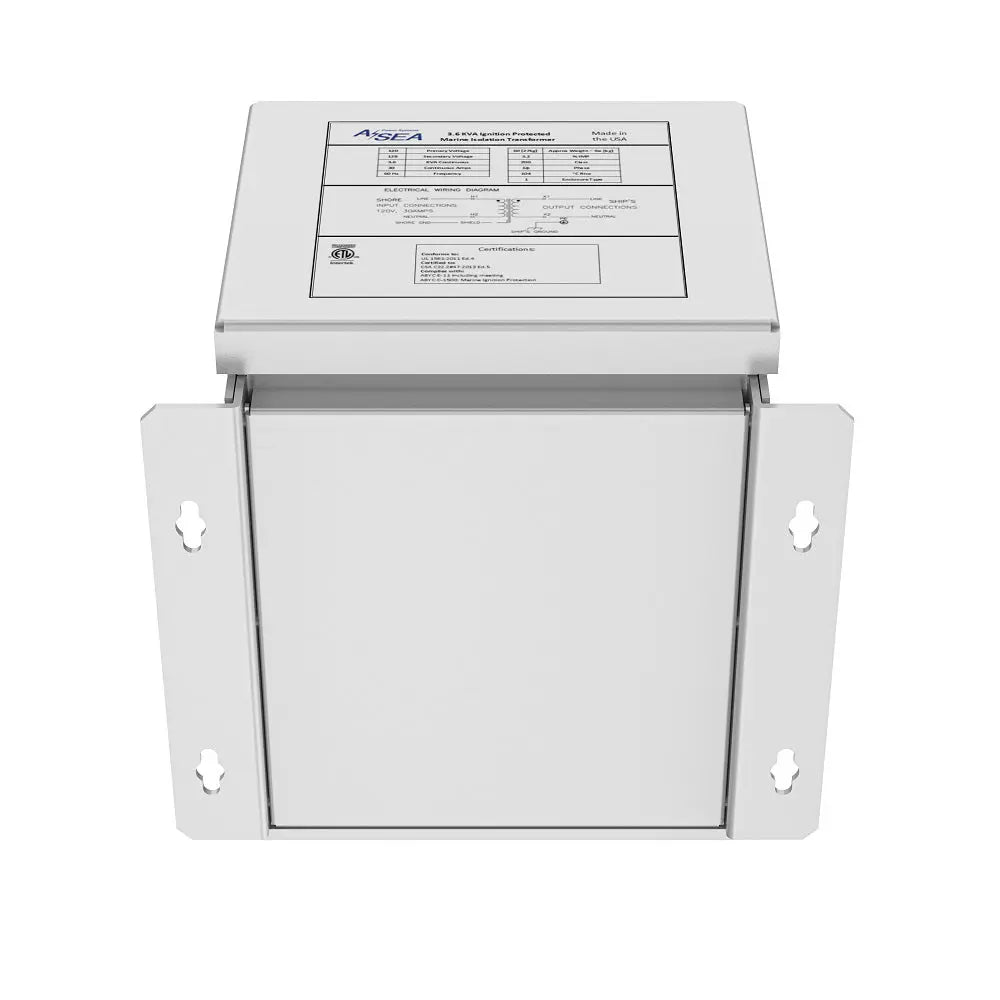

ASEA Power Systems 3.6 kVA Marine Isolation Transformer for Boat Safety and Galvanic Protection

3.6 kVA Isolation Transformer

ASEAs Isolation Transformer is a drop-in replacement for Charles IsoG2 designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.

Features:

• Ignition Protected: Certified to ABYC C-1500 requirements, making them safe and reliable to use in gasoline-powered marine vessels.
• Galvanic Corrosion Protection: By isolating AC shore power from the boats AC power system, the ASEA Isolation Transformer protects the boat from galvanic corrosion.
• Marina electrical leakage compliance: With NEC 555.35 becoming mandatory for marinas to check and limit the amount of leakage available per vessel, an isolation transformer doesnt allow any electrical leakage back to the power pedestal.
• Charles Isolation Transformer Replacement: ASEAs isolation transformers are designed as a direct and improved replacement for Charles IsoG2.
• GFPE Tripping Prevention: Eliminates false GFPE tripping by preventing current flow back into the dock, guaranteeing an uninterrupted power supply, even as a transient occupant.

Specifications:

• Input Voltage: 120 VAC
• Input Current: 30 A
• Output Voltage: 120 VAC
• Output Current: 30 A
• Output Frequency: 60 Hz
• Weight: 55 lbs
• Height: 21.6 cm / 8.5 in
• Width: 21.6 cm / 8.5 in
• Width (with flange): 27.4 cm / 10.8 in
• Depth: 26.7 cm / 10.5 in

Certifications:

• UL 1561
• Meets ABYC E-11.7.1
• ABYC C-1500 (for ignition protection)

The ASEA Power Systems 3.6 kVA Marine Isolation Transformer is a reliable solution designed to enhance safety and electrical protection on boats. This transformer acts as a drop-in replacement for the Charles IsoG2, providing galvanic corrosion protection by isolating shore power from the vessel’s electrical system. Its compact design ensures easy installation while maintaining robust performance, safeguarding onboard electronics from power fluctuations and reverse polarity issues. Certification to ABYC C-1500 standards confirms its suitability for gasoline-powered marine vessels, ensuring compliance and safety in marine environments. The transformer also addresses marina electrical leakage requirements by preventing any backflow of current to the power pedestal, which is crucial for adherence to NEC 555.35 regulations. By effectively eliminating false GFPE tripping, it ensures uninterrupted power supply even when transient electrical conditions occur, making it a dependable component for marine electrical systems. The transformer features a 120 VAC input and output with a 30-amp capacity, suitable for a wide range of marine applications. Its weight of approximately 55 pounds and compact dimensions facilitate installation and handling onboard. Certified under UL 1561 and meeting ABYC E-11.7.1 standards, the ASEA Power Systems transformer offers peace of mind and reliable performance. For detailed installation and maintenance instructions, refer to the owner’s manual available online. This product is intended for marine use and may require professional installation to ensure optimal safety and compliance.

Features:

• Ignition Protected: Certified to ABYC C-1500 requirements, ensuring safety in gasoline-powered vessels.

• Galvanic Corrosion Protection: Isolates shore power to prevent galvanic corrosion and protect vessel fittings.

• Marina Electrical Leakage Compliance: Prevents electrical leakage back to the power pedestal, meeting NEC 555.35 requirements.

• Charles Isolation Transformer Replacement: Designed as a direct replacement for Charles IsoG2 with improved features.

• GFPE Tripping Prevention: Eliminates false ground-fault protection trips, ensuring continuous power supply during transient events.
