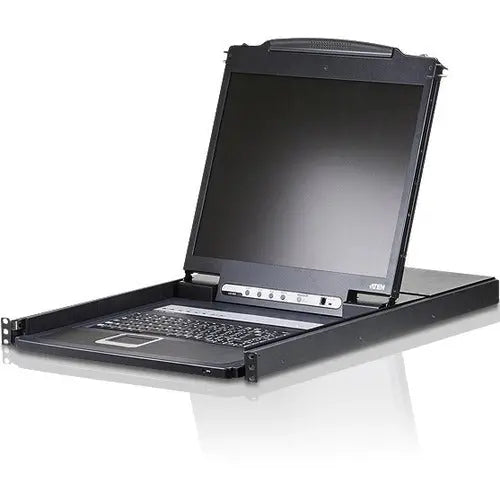

ATEN CL1316N 16-Port PS/2-USB VGA LCD KVM Switch with 19-Inch LED Backlit Console

The ATEN CL1316N is a high-performance 16-port KVM switch designed to optimize space and streamline server management in data centers and server rooms. Featuring an integrated 19-inch LED-backlit LCD panel, this switch allows seamless control of up to 16 computers from a single console, with cascading capabilities that expand control to a maximum of 256 computers across two levels. Its compact 1U rack-mountable design integrates a full keyboard, touchpad, and LCD display into a single sliding housing, reducing clutter and saving valuable rack space. The device supports both USB and PS/2 connections, providing flexibility for diverse hardware setups, and ensures quick setup by eliminating the need for software configuration through direct keyboard input interception. Switching between connected computers is intuitive, via front panel push buttons, hotkeys, or an on-screen display (OSD), facilitating efficient multi-server management. The CL1316N supports high-resolution video output up to 1280 x 1024 at 75 Hz with DDC2B support, ensuring sharp visuals for administrators. Additional features include dual interface support for PS/2 and USB keyboards and mice, auto interface detection, and multiplatform compatibility with Windows, Linux, Mac, and Sun systems. The device also offers enhanced security with two-level password protection, allowing only authorized users to access multiple servers. The built-in LED illumination light ensures visibility in low-light conditions, and an auto scan mode enables monitoring of selected servers. Packaged with custom cables, firmware upgrade options, and a power cord, the ATEN CL1316N delivers a comprehensive solution for centralized server management in a compact form factor.

Features:

• Auto Scan feature for monitoring user-selected computers

• Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each

• Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu

• Superior video quality - up to 1280 x 1024 @ 75 Hz; DDC2B support

• USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

• Auto PS/2 and USB interface detection

• Supports USB keyboards for PC, Mac, and Sun platforms

• Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun

• Dual Interface - supports computers with PS/2 or USB keyboards and mice

• Integrated KVM console with 19-inch LED-backlit LCD panel

• Control up to 256 computers by cascading up to two levels and connecting up to 16 switches

• Exclusive LED illumination light to optimize visibility in low-light environments
