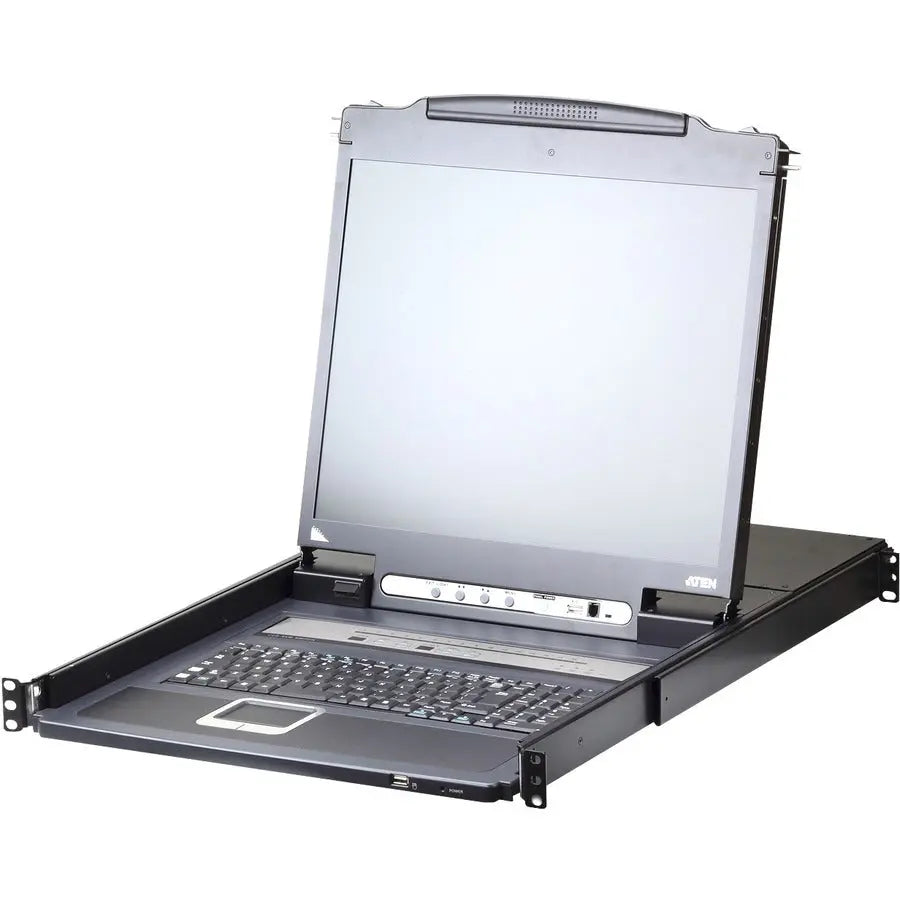

ATEN CL5716I LCD KVM Over IP Switch with 16-Computer Control and Rack Mount Kit

ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant

The ATEN CL5716I LCD KVM Over IP Switch offers a comprehensive solution for managing multiple servers and computers from a single console. Designed with a space-efficient 1U rack-mountable housing, this control unit integrates a 17-inch or 19-inch LED-backlit LCD monitor, keyboard, and touchpad, providing an all-in-one management station. Its modular design allows the KVM section to be detached for maintenance, while the Slideaway™ housing ensures a streamlined setup in data centers or server rooms. This switch supports daisy chaining of up to 15 additional units, enabling control of up to 256 computers from a single console, making it ideal for large-scale IT environments. Its high-quality video output supports resolutions up to 1280 x 1024 at 75Hz locally and 1920 x 1200 at 60Hz remotely, with DDC2B support for clear local display and 24-bit color depth for remote sessions. The switch also features an external console port for management via an additional monitor and peripherals, offering flexibility in setup and operation. Advanced security protocols, including TLS 1.2 encryption and RC4 128-bit encryption, ensure that remote and local data transmissions are secure. Compatibility with third-party authentication systems such as RADIUS, LDAP, LDAPS, and MS Active Directory simplifies user management and access control. The CL5716I supports hot-plugging, allowing users to add or remove computers without powering down, and features auto-sensing station positioning for easy setup in daisy chain configurations with no manual dip switch adjustments. An integrated LCD USB port enables connected computers to access USB peripherals, enhancing connectivity options. The device’s dual interface support for PS/2 and USB keyboards and mice ensures broad compatibility with existing hardware. Additional features include an extra console port for management from external devices, exclusive LED illumination for easy operation, and support for high-security protocols to meet enterprise security requirements. The ATEN CL5716I is designed for reliable, efficient, and secure management of large server installations, providing remote and local control with high-quality video and user-friendly features for seamless operation.

Features:

• Hot pluggable - add or remove computers without having to power down the switch

• Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position

• LCD module USB port allows connected computers to access USB peripherals

• Dual Interface - supports computers and console with PS/2 or USB keyboards and mice

• Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions

• Extra console port - manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)

• Daisy chain up to 15 additional units - control up to 256 computers from a single console

• Space saving technology - up to two consoles (one bus) control up to 16 computers

• Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing

• Exclusive LED illumination light for enhanced visibility
