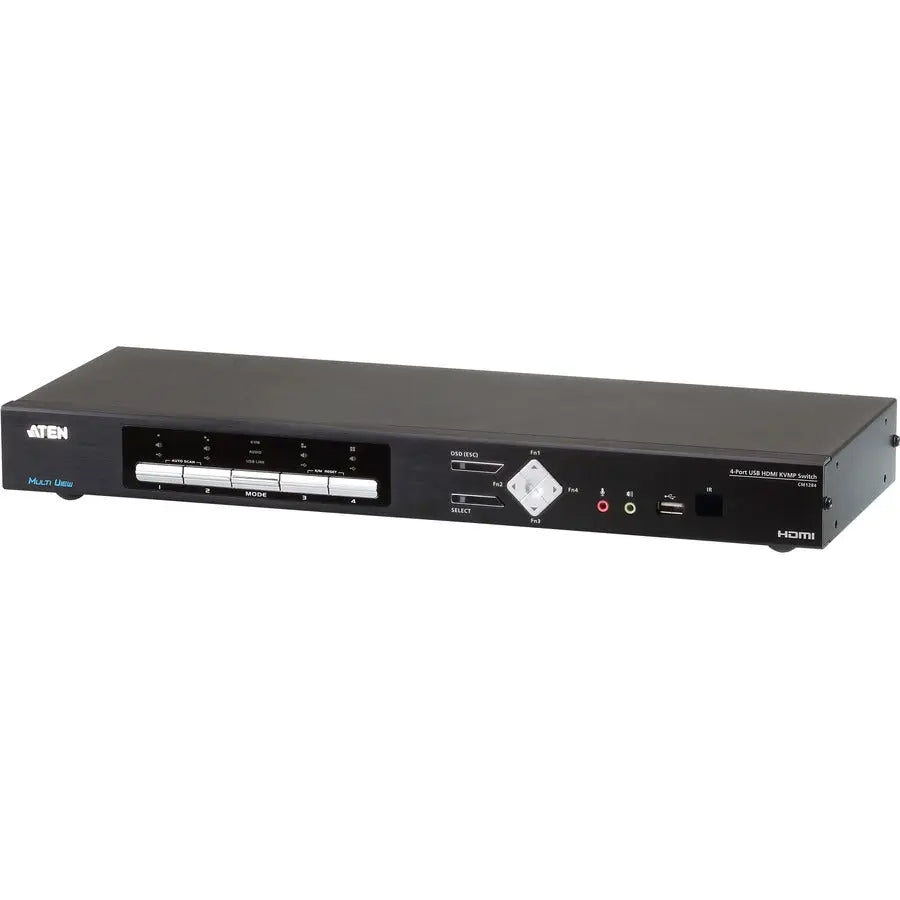

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch for Real-Time Monitoring

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant

The ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch is designed to enhance operational efficiency in environments requiring real-time monitoring, such as aviation, finance, and medical sectors. This advanced KVM switch enables users to manage multiple video sources simultaneously, offering seamless switching and display options to optimize workflow and situational awareness. With support for high-resolution HDMI output up to 4K (4096 x 2160 @ 30 Hz), it ensures crisp visuals and clear detail essential for precise monitoring tasks. The device features dual outputs on the console side: one dedicated to multi-view display modes like Quad View, PiP, PbP, and PoP, and another for full-screen viewing. Boundless Switching technology allows users to switch between sources effortlessly by simply moving the mouse cursor across windows, eliminating the need for manual controls and streamlining operations. The CM1284 also supports Daisy Chain Control (DCC), enabling control of up to three additional units from a single console, with cascading support up to two levels for a total of 16 sources. This scalability makes it suitable for complex multi-display setups requiring centralized management and quick source switching. Advanced features such as EDID Expert™ dynamically select optimal EDID settings for high-quality display performance, while Video DynaSync™ technology prevents boot-up display issues, ensuring smooth transitions between sources. The device supports multiple configuration methods, including front panel controls, on-screen display (OSD), IR remote, and RS-232 commands, offering flexible integration into existing systems. Users can easily resize or reposition PiP and PbP windows to customize their viewing experience, and the console provides dual output options: a multi-view display for monitoring multiple sources simultaneously and a full-screen mode for detailed focus. Package contents include the switch, USB HDMI cables, power cord, IR remote, rack mount kit, and user instructions, all backed by a three-year limited warranty. Compact and rack-mountable, the ATEN CM1284 combines high performance with ease of deployment, making it an ideal solution for demanding real-time monitoring applications requiring high-resolution video and efficient source management.

Features:

• EDID Expert™ - Selects optimum EDID settings for smooth power-up, high-quality display, and optimal video resolution across different screens

• Video DynaSync™ - Eliminates boot-up display problems and optimizes resolution when switching sources using exclusive ATEN technology

• Boundless Switching - Instantly switches video sources by moving the mouse cursor across windows for seamless control

• Multiple control options - Front panel pushbutton, hotkey, mouse, and serial commands for flexible system management

• On-screen display (OSD) - Edit display windows and configure settings via an intuitive drop-down menu

• Supports up to 4K resolution (4096 x 2160) at 30 Hz with YCbCr 4:2:2 color support for superior video quality

• Flexible system configuration - Control display modes and port selection through front panel, OSD, IR remote, and RS-232 commands

• Customizable viewing - Easily resize and reposition PiP and PbP windows to suit specific monitoring needs

• Dual console outputs - Multi-view for simultaneous source monitoring and full-screen mode for detailed focus

• Scalable control - Daisy Chain Control (DCC) supports up to 3 additional units, cascading up to 2 levels for a total of 16 sources
