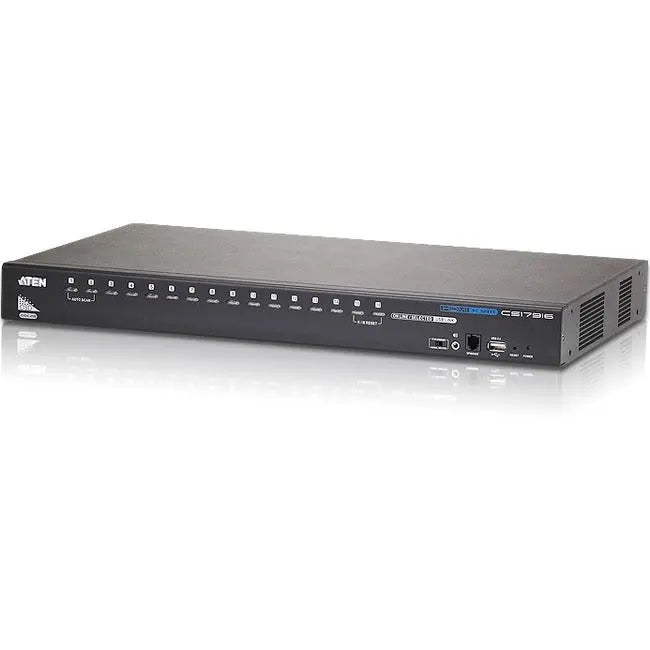

ATEN CS17916 16-Port USB HDMI KVM Switch with Multi-Display Support and Cascadable Design

The ATEN CS17916 16-Port USB HDMI KVM Switch offers a comprehensive solution for managing multiple computers from a single console. Designed with versatility in mind, this switch allows you to control up to 16 HDMI-enabled computers using one USB keyboard, mouse, and monitor. Its cascading capability enables expansion to control up to 256 computers across two levels, making it ideal for extensive server rooms, data centers, or complex workstation setups. The multi-display feature supports stacking up to eight units, providing the ability to display video from multiple sources simultaneously, which is particularly beneficial for monitoring, analysis, and multitasking environments. With HDMI compatibility and Video DynaSync™ technology, the switch ensures optimized resolution and eliminates display issues during port switching, delivering clear and stable video output. The device also includes a built-in 2-port USB 2.0 hub, facilitating connection of additional peripherals. The on-screen display (OSD) function provides intuitive access to connected computers, with configuration backup and restore options to streamline management and recovery. The CS17916 supports independent switching of KVM and USB focus, giving precise control over connected devices. Users can select computers via front panel pushbuttons, hotkeys, or multilingual OSD, offering flexible operation methods. Furthermore, the switch supports multimedia functionality, allowing audio output to be routed to two sets of speakers, enhancing multimedia management in professional environments. The package includes everything necessary for installation and operation, such as rack mounting hardware, custom cables, firmware upgrade cable, power adapter, and quick start guide. Built in Taiwan by ATEN Technology, Inc., the CS17916 is an environmentally friendly and reliable choice for high-demand control environments, combining advanced features with user-friendly operation for seamless multi-system management.

Features:

• Video DynaSync™ technology eliminates boot-up display problems and optimizes resolution when switching between ports

• Firmware upgradeable for future enhancements

• OSD Backup/Restore feature allows backing up and restoring configuration and user profiles

• Independent switching of KVM focus and USB focus for precise control

• Multiple computer selection options including front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)

• Built-in 2-port USB 2.0 hub for peripheral connectivity

• Cascadable to two levels, supporting control of up to 256 computers

• Multi-Display support to stack and display video from up to eight units for multi-monitor setups

• HDMI compatibility ensures high-quality video output

• USB console controls up to sixteen HDMI computers and two additional USB 2.0 devices
