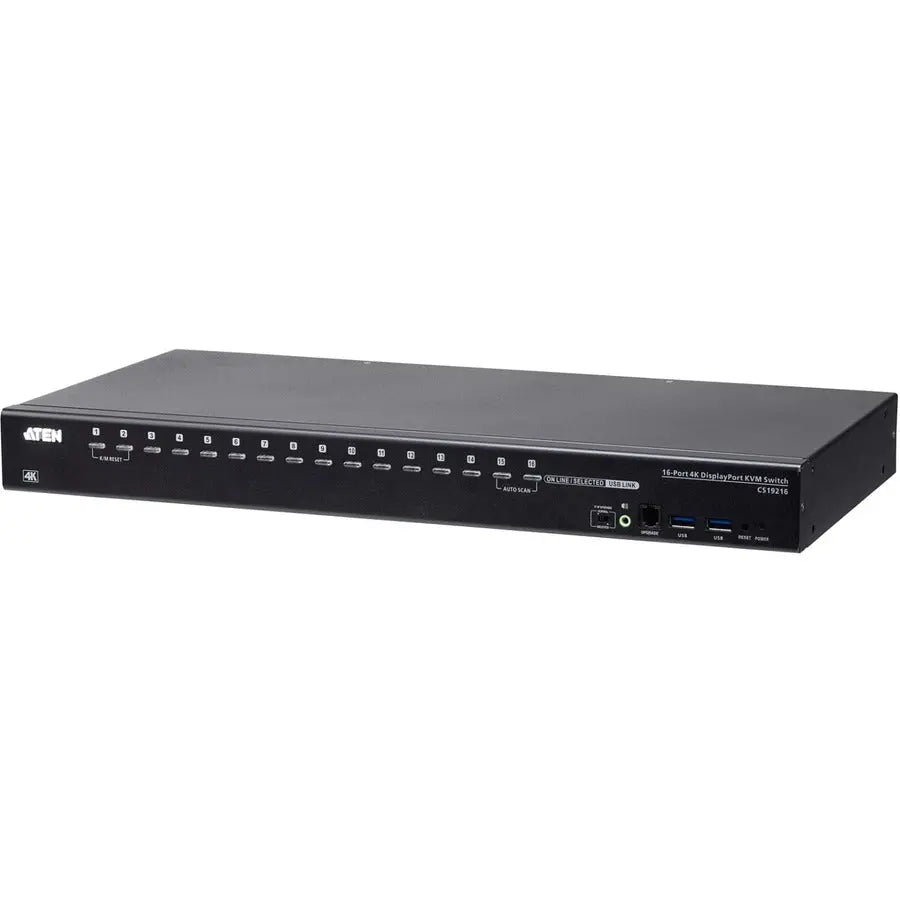

ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit

ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit

The ATEN CS19216 is a high-performance 16-port KVM switch designed for professional environments requiring reliable and high-quality control of multiple computers. It allows a single USB console — comprising a keyboard, mouse, and monitor — to manage up to 16 DisplayPort-enabled computers, simplifying complex setups in server rooms, control centers, and industrial automation facilities. Its rack-mountable form factor ensures easy integration into standard server racks, making it suitable for data centers and enterprise deployments.

This KVM switch supports high-resolution video output up to 4K DCI (4096 x 2160 @ 60Hz), delivering crystal-clear visuals essential for detailed monitoring, graphic design, and multimedia applications. The device can be cascaded to control up to 256 computers across two levels, providing substantial scalability for growing infrastructures. Its multi-display capability enables stacking up to eight units to display content from up to 8 monitors simultaneously, facilitating multitasking, comparison, and comprehensive monitoring across multiple screens.

ATEN's proprietary Video DynaSync™ technology eliminates boot-up display issues and ensures resolution stability when switching between sources, while EDID Expert™ optimizes display settings for maximum compatibility and high image quality. The switch supports both DisplayPort and HDMI outputs, offering flexibility to match various display setups. Additionally, the built-in USB 3.1 Gen 1 hub with data transfer rates up to 5 Gbps enables fast sharing of peripherals like external drives, webcams, and other USB devices. Audio support with full bass response and HD audio further enhances user experience, making the switch suitable for multimedia and communication tasks.

Operation is intuitive with multiple control options including pushbuttons, hotkeys, RS-232 commands, and a user-friendly On-Screen Display (OSD) interface. Security features such as a two-level password system provide enhanced protection for critical systems. The CS19216 is an ideal solution for industries with demanding requirements for high-quality visuals, multitasking, and secure access, including enterprise, government, healthcare, and industrial automation sectors.

Features:

• One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices

• Cascadable to two levels - controls up to 256 computers

• Multi-Display feature - stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)

• Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources

• EDID Expert™ - selects optimum EDID mode for smooth power-up and highest quality display

• Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility

• Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)

• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates

• Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound

• Supports HD audio
