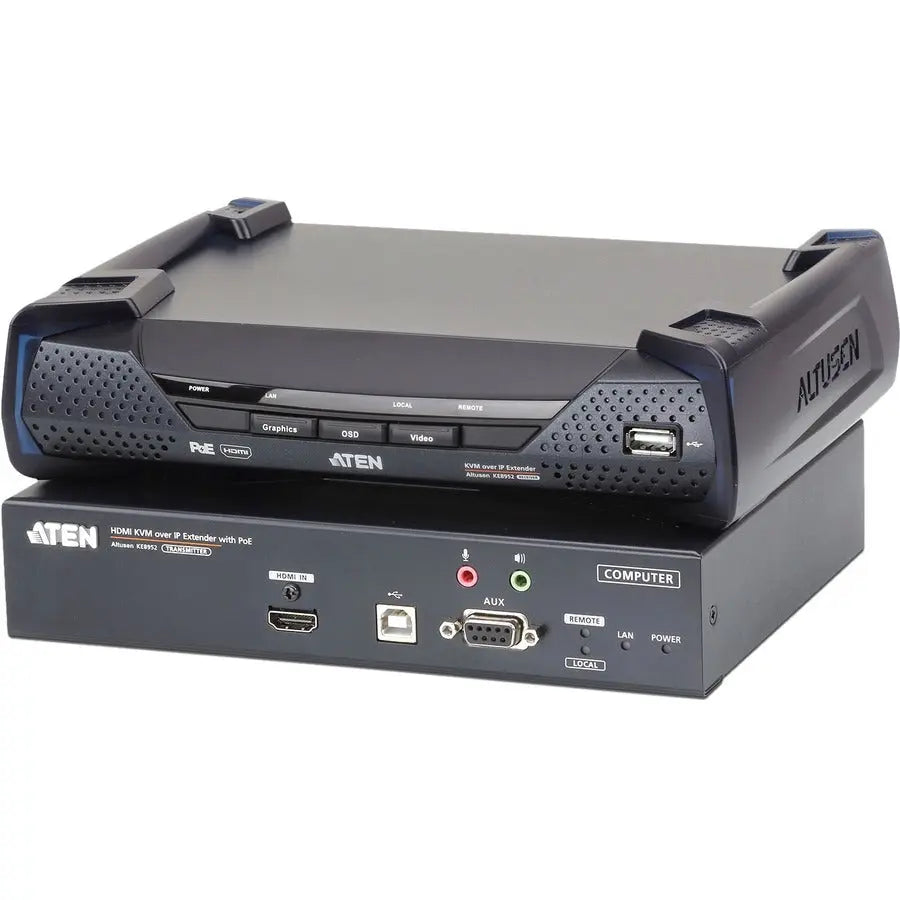

ATEN KE8952T 4K HDMI KVM over IP Extender with PoE and Rack-Mountable Design

ATEN 4K HDMI Single Display KVM over IP Transmitter with PoE-TAA Compliant

The ATEN KE8952T is a high-performance 4K HDMI KVM over IP extender designed for professional IT, broadcasting, and control environments. This rack-mountable device allows users to extend computer access over a standard IP network, supporting a single HDMI monitor at each end with ultra high-definition video quality up to 3840 x 2160 pixels at 30Hz. Its innovative design incorporates Power over Ethernet (PoE) functionality, enabling power supply directly through a PoE-enabled network switch, thereby eliminating the need for separate power adapters and reducing overall installation costs. The KE8952T supports various network configurations, including point-to-point, multipoint-to-multipoint, and multi-user setups, making it highly adaptable for diverse operational requirements. It also offers fiber optic expansion options using optional 1Gbps SFP modules, extending transmission distances over fiber networks for large-scale installations.

Features:

• Hot pluggable: Easily connect or disconnect without powering down the device

• Fanless design: Provides silent operation and energy efficiency

• Built-in ESD and surge protection: 8KV/15KV ESD and 1KV surge protection safeguard against electrical disturbances

• HDMI 1.4a and HDCP 1.4 compliance: Ensures compatibility with latest HDMI standards and protected content

• Auto-MDIX: Automatically detects cable type for simplified installation

• Supports stereo speakers and microphone: Facilitates multimedia applications

• USB Virtual Media Support: Allows remote access to USB devices for enhanced functionality

• Supports HDMI resolutions from 640 x 480 up to 3840 x 2160 at 30Hz: Ensures high-quality video output

• Supports interlaced video (1080i): Compatible with various video formats

• UHD video quality: Up to 3840 x 2160 @ 30Hz with 36-bit color depth for crisp, detailed images
