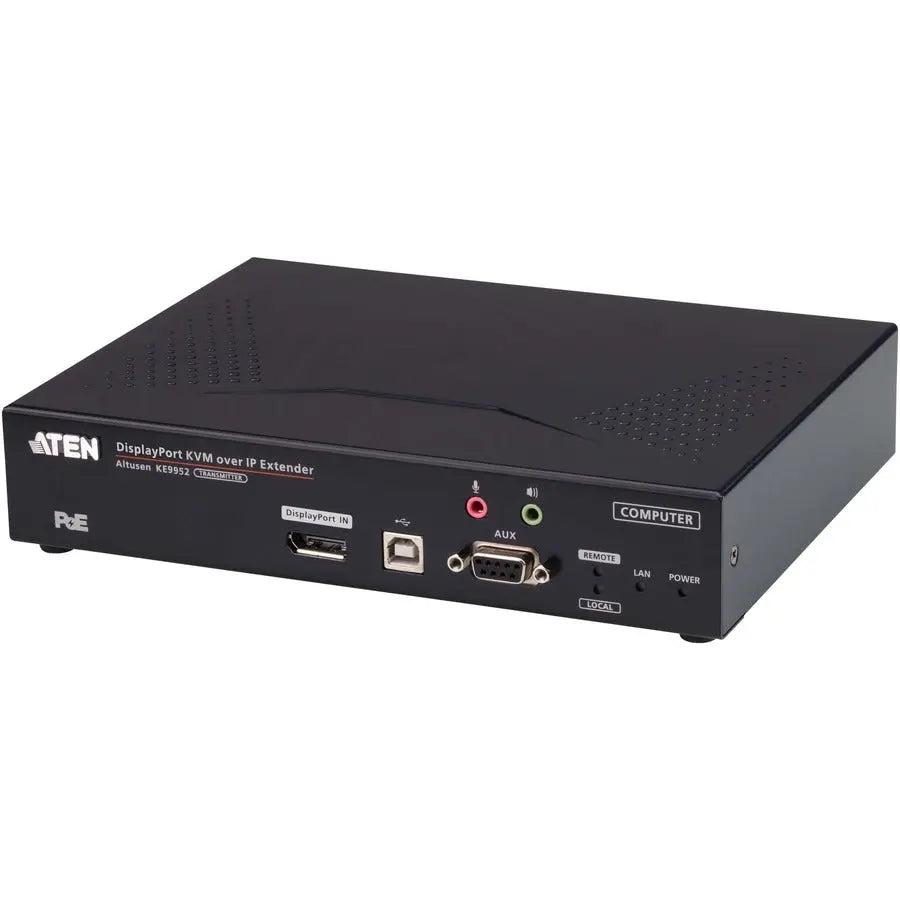

ATEN KE9952T 4K DisplayPort KVM over IP Transmitter with PoE and Rack-Mountable Design

ATEN 4K DisplayPort Single Display KVM over IP Transmitter with PoE

The ATEN KE9952T is a high-performance 4K DisplayPort KVM extender designed for remote server and workstation management. This transmitter connects to your computer via DisplayPort and transmits video, USB, audio, and serial data over an IP network, supporting resolutions up to 3840 x 2160 @30Hz with lossless compression and minimal latency. Its robust feature set enables secure, flexible, and seamless remote access for professional environments such as data centers, command centers, and broadcast facilities. The KE9952T's compact, rack-mountable form factor allows easy integration into existing infrastructure, saving space and simplifying deployment. With Power over Ethernet support, the device can be powered directly through a PoE-enabled network switch, eliminating the need for additional power supplies and reducing overall setup costs. The transmitter can be configured for point-to-point, point-to-multipoint, or advanced matrix setups, and when paired with ATEN’s management software, offers features like video walls, content sharing, and automated switching. Its auto-detection simplifies installation, while security features such as AES encryption and support for LDAP, RADIUS, Active Directory, and TACACS+ ensure data integrity and protected access. Designed for versatile applications, the KE9952T supports various mounting options—including wall and rack placement—making it suitable for a broad range of professional settings requiring reliable, high-resolution remote KVM access. The package includes essential cables, mounting hardware, and user instructions, backed by a three-year warranty for peace of mind. Whether used for remote server management or multi-display control, the KE9952T delivers high-quality video, secure data transmission, and flexible deployment options in an environmentally friendly, space-efficient package.

Features:

• Rx access control - users at the Tx local console can enable / disable Rx access by simply pressing a control button

• Tx grouping of up to 4 sets of KE transmitters to support multi-display applications

• Configurable user and group permissions for access and control of KE devices

• Advanced User Authorization Settings - administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users

• Support both internal and external authentication - external authentication supports LDAP, Active Directory, RADIUS and TACACS+

• Virtual Transmitter - independently streams video, audio, USB, and serial sources from different Tx

• Advanced Scheduling - improves efficiency and saves costs by allowing connections to be set based on time and date

• Video Walls - create multiple video walls with up to 8 x 8 (64 displays max.) in each layout

• "Push" and "Pull" - share content instantly to/from a single Rx or video wall by just one click

• Boundless Switching - simply move the mouse cursor between screens for seamless control
