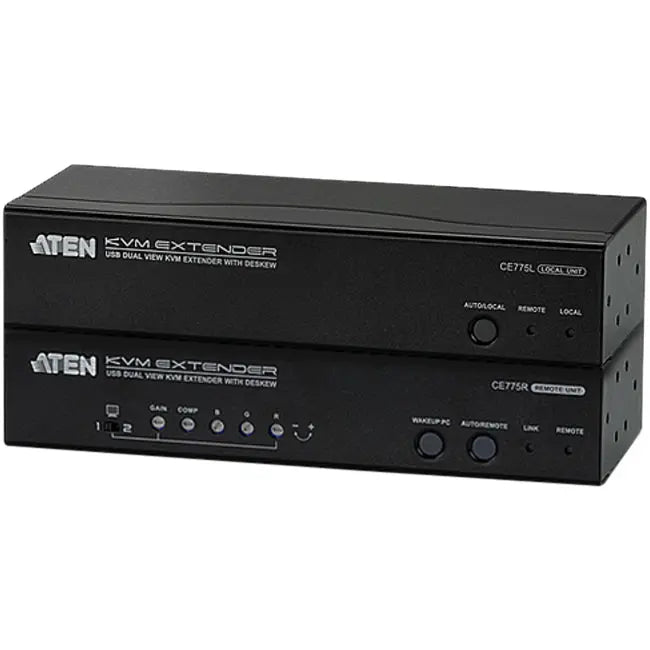

ATEN Technology CE775 USB Dual View KVM Extender with Deskew - Long-Range Dual Monitor Support up to 300 meters

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant

The ATEN CE775 USB Dual View KVM Extender with Deskew provides a reliable solution for accessing a computer system remotely from up to 300 meters away. Designed for professional environments, this device allows users to operate a local and remote console with dual monitor support, enabling seamless management of multiple displays via inexpensive Cat 5e/6 cables.

Equipped with advanced features such as dual view support, the CE775 transmits two video signals simultaneously at high resolutions, specifically 1920x1200@60Hz for distances up to 150 meters and 1280x1024@60Hz for distances up to 300 meters. Its built-in Deskew function automatically synchronizes RGB signals, compensating for signal delay caused by cable length, ensuring crystal-clear video quality without distortion. The device also offers gain and compensation controls, allowing users to fine-tune signal strength for optimal performance over long distances.

Additional features include support for Sun/Mac keyboard emulation, making it compatible with multiple systems, and an RS-232 channel that facilitates connection to serial devices such as touchscreens, barcode scanners, or serial terminals. The PC Wakeup feature allows users to power on a remote PC with a simple pushbutton from the console, reducing unnecessary travel to remote sites. The device's intuitive On Screen Display (OSD) menu simplifies video adjustments, providing a user-friendly interface to optimize display settings. Designed with reliability in mind, the CE775 incorporates built-in ESD protection (8KV contact, 15KV air), ensuring durability in demanding environments. This TAA-compliant device is ideal for data centers, control rooms, and any setup requiring long-distance, dual-monitor KVM access with high-quality video and versatile connectivity options.

Included in the package are local and remote units, VGA and USB KVM cables, power adapters, a mounting kit, and user instructions, making installation straightforward. The device's compact design and lightweight construction make it easy to deploy in various setups, providing flexible and efficient remote management for critical systems.

Features:

• Sun/Mac keyboard support and emulation

• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

• RS-232 Channel - connect to serial devices such as touchscreens and barcode scanners

• Gain/Compensation Control - adjusts signal strength for long-distance transmission

• On Screen Display - intuitive menu system for easy video quality adjustments

• Superior video quality - 1920x1200@60Hz for 150 meters, 1280x1024@60Hz for 300 meters

• PC Wakeup support - remotely power on PCs via pushbutton using RS-232

• Deskew Function - automatically synchronizes RGB signals to eliminate delays

• Dual Console operation - control system from both local and remote USB keyboard, monitor, and mouse

• Dual View Support - transmit two video signals to a remote site up to 300 meters
