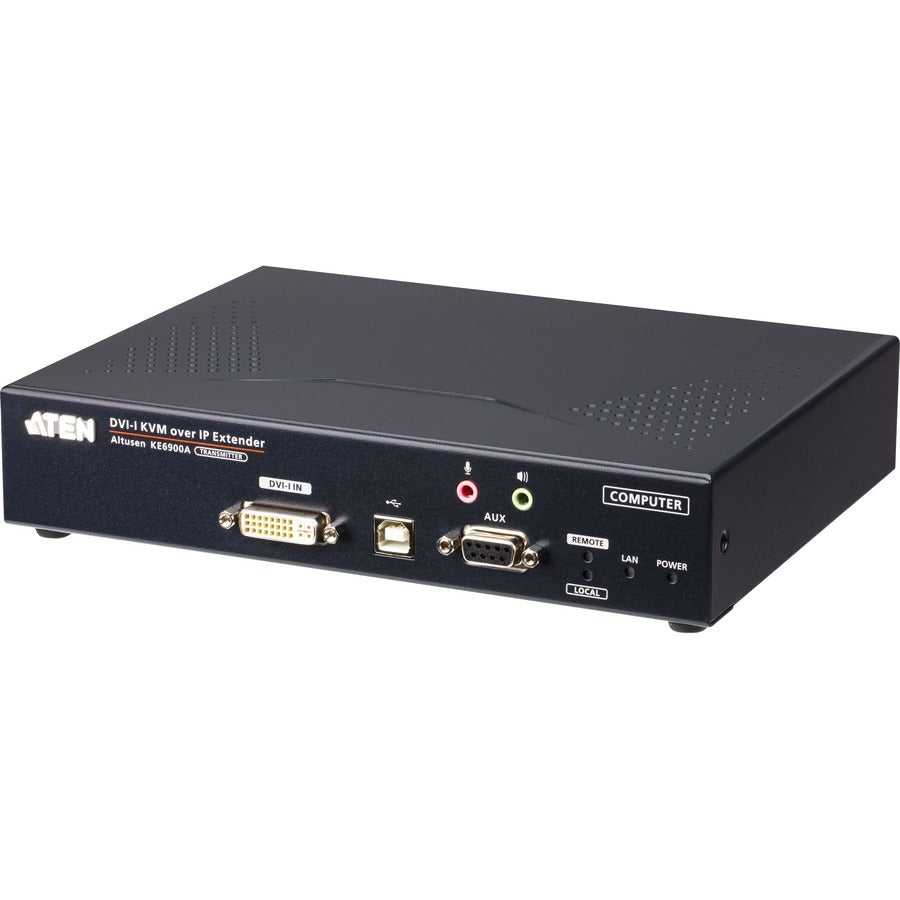

ATEN Technology KE6900AT DVI-I Single Display KVM over IP Extender Transmitter

ATEN DVI-I Single Display KVM over IP Transmitter

The ATEN KE6900AT is a high-performance KVM over IP transmitter designed for secure and flexible remote access to computer systems. This rack-mountable device enables users to control a computer environment from a separate location, connecting through an Ethernet network via an RJ-45 port or a fiber SFP slot. Supporting lossless video transmission at resolutions up to 1920 x 1200 @ 60Hz, it ensures crystal-clear image quality suitable for professional applications. The KE6900AT allows for seamless switching between multiple displays, creating dynamic video walls with up to 8 x 8 configurations, accommodating up to 64 screens simultaneously. Its virtual transmitter feature streams video, audio, USB, and serial data independently from different sources, providing versatile control options for complex setups. This device supports dual power supplies for redundancy, ensuring continuous operation in mission-critical environments. Integrated security features include AES-128 encryption, LDAP, RADIUS, LDAP, and Active Directory authentication, safeguarding sensitive data and access controls. The device is compatible with ATEN’s KE Matrix Management Software, which simplifies device management through auto detection, user permissions, and advanced scheduling. Additional features such as boundless switching, content sharing via push/pull functions, and Rx access control enhance operational efficiency. The KE6900AT is ideal for data centers, control rooms, and secure environments requiring remote console access and reliable video extension over local or fiber optic networks.

Features:

• Boundless Switching - move the mouse cursor across screen boundaries to switch between different receivers (Rx).

• "Push" and "Pull" - instantly share content to/from a single Rx or video wall with one click.

• Video Walls - create multiple video walls with up to 8 x 8 (64 displays maximum) in each layout.

• Advanced Scheduling - set connections based on time and date to improve efficiency and reduce costs.

• Virtual Transmitter - independently streams video, audio, USB, and serial sources from different transmitters.

• Authentication Support - includes LDAP, Active Directory, RADIUS, and TACACS+ for secure access control.

• Configurable Permissions - define user and group permissions for device access and management.

• Rx Access Control - local console users can enable or disable Rx access with a simple button press.

• Power/Network Failover - dual power inputs and network ports (RJ45 and SFP) for redundancy and continuous operation.
