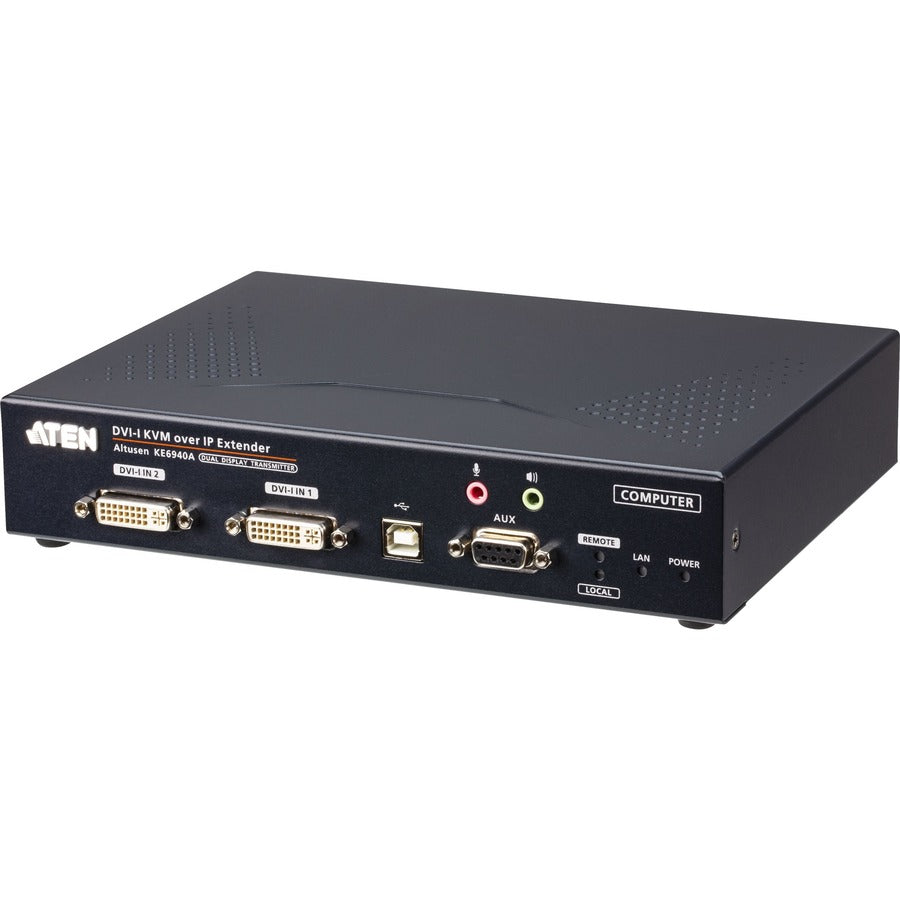

ATEN Technology KE6940AT DVI-I Dual Display KVM over IP Transmitter for Remote Access and Video Wall Creation

The ATEN KE6940AT is a high-performance KVM over IP transmitter designed to extend computer access over a network with dual DVI-I outputs supporting resolutions up to 1920 x 1200 @ 60Hz. This device enables secure, remote management of computer systems placed in controlled environments such as server rooms or isolated workspaces, providing users with reliable console access via USB keyboard, mouse, and DVI monitor. Its IP-based architecture offers flexible deployment options, including point-to-point, multipoint, or integration into a larger KVM matrix system with the ATEN KE Matrix Management Software, allowing for scalable and efficient management of multiple devices across the network.

Features:

• Supports 1Gbps SFP fiber module expansions up to 10 km for extended transmission distances

• Supports power/network failover with dual DC jacks, RJ45 and SFP fiber ports for high availability in mission-critical environments

• Rx access control allows local console users to enable or disable receiver access with a simple button press

• Configurable user and group permissions facilitate tailored access and control for multiple administrators

• Supports internal and external authentication methods including LDAP, Active Directory, RADIUS, and TACACS+ for enhanced security

• Virtual Transmitter feature streams video, audio, USB, and serial sources independently from different Tx units

• Advanced scheduling capabilities enable connection setup based on specific times and dates to improve operational efficiency

• Create and manage multiple video walls, supporting up to 8 x 8 configurations with a maximum of 64 displays

• Quick content sharing via 'Push' and 'Pull' features allow instant transmission to or from a single receiver or video wall with just one click

• Boundless Switching allows seamless mouse cursor movement across connected devices, simplifying navigation and control
