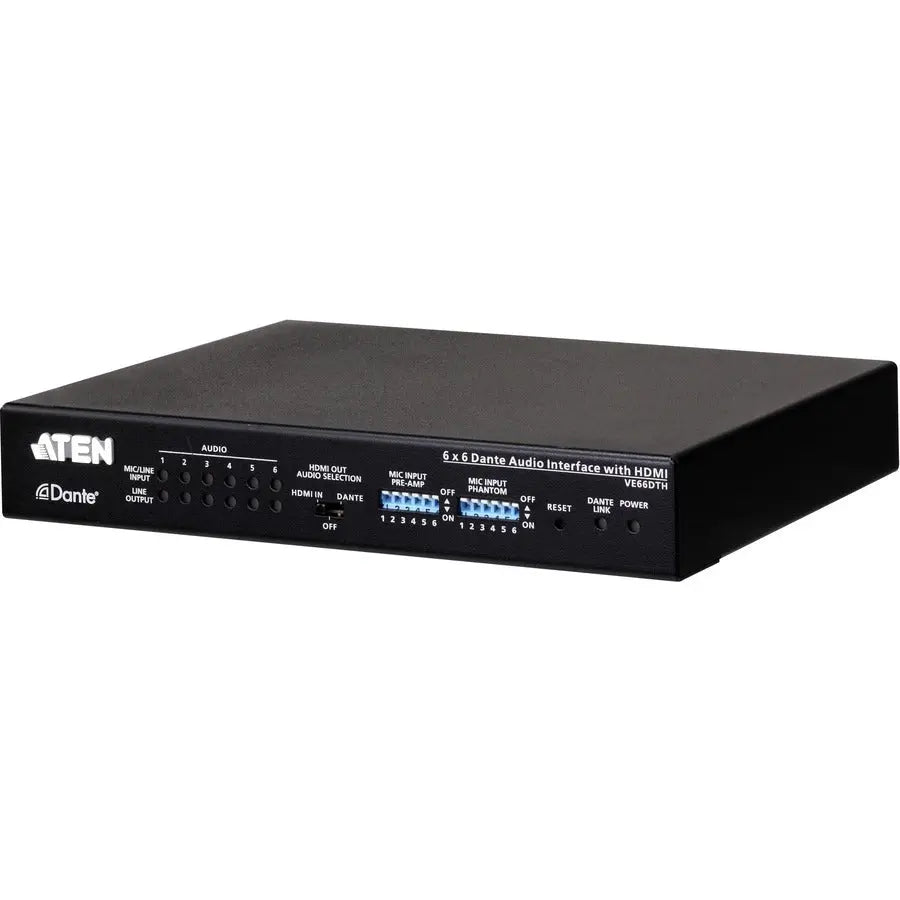

ATEN VE66DTH 6x6 Dante Audio Interface with HDMI – Networked Audio and HDMI Integration

The ATEN VE66DTH is a versatile Dante-enabled six-input and six-output audio interface designed for professional AV applications. It facilitates seamless digital audio transmission over standard IP networks, supporting uncompressed, near-zero latency multi-channel audio with perfect synchronization. Featuring six balanced mono line/mic inputs, the VE66DTH can handle dynamic and condenser microphones simultaneously, providing 48V phantom power to condenser microphones for versatile microphone connectivity. Its built-in Power over Ethernet (PoE) capability allows for simplified installation by powering the device through a compatible PSE Ethernet switch, reducing the need for additional power supplies. The device also supports HDMI 2.0 local output, enabling embedding of Dante audio signals into HDMI video streams, which is ideal for conference centers, live events, and entertainment environments. HDMI input with HDCP 2.2 compliance allows for de-embedding HDMI stereo audio signals to the Dante network, offering flexible audio routing options. The VE66DTH supports AES67 interoperability, ensuring compatibility with other networked audio systems, and can be easily configured using the Dante Controller software, streamlining setup and management. This robust interface is designed for high-performance AV installations, reducing cabling complexity and enhancing system scalability, making it suitable for venues requiring flexible, networked audio solutions and HDMI integration.

Features:

• Supports PoE - power can be supplied by a compatible PSE device through Ethernet cable

• Supports HDMI 2.0 local output - the VE66DTH can embed the Dante audio into HDMI output

• Supports HDMI 2.0 input with HDCP 2.2 compliant - the HDMI input can de-embed HDMI stereo audio to the Dante network

• Delivers up to 6-channel balanced mono audio Line outputs from the Dante network to the audio system

• AES67 support for interoperability with other professional audio systems

• Easy to use and set up - user can configure via Dante Controller software

• Provides 48V Phantom power supply to condenser microphones

• Integrates up to 6-channel balanced mono audio Line/Mic input signals onto a Dante-enabled audio system supporting both dynamic and condenser microphones

• s Dante networked audio interface - distributes uncompressed, multi-channel audio with near-zero latency and perfect synchronization
