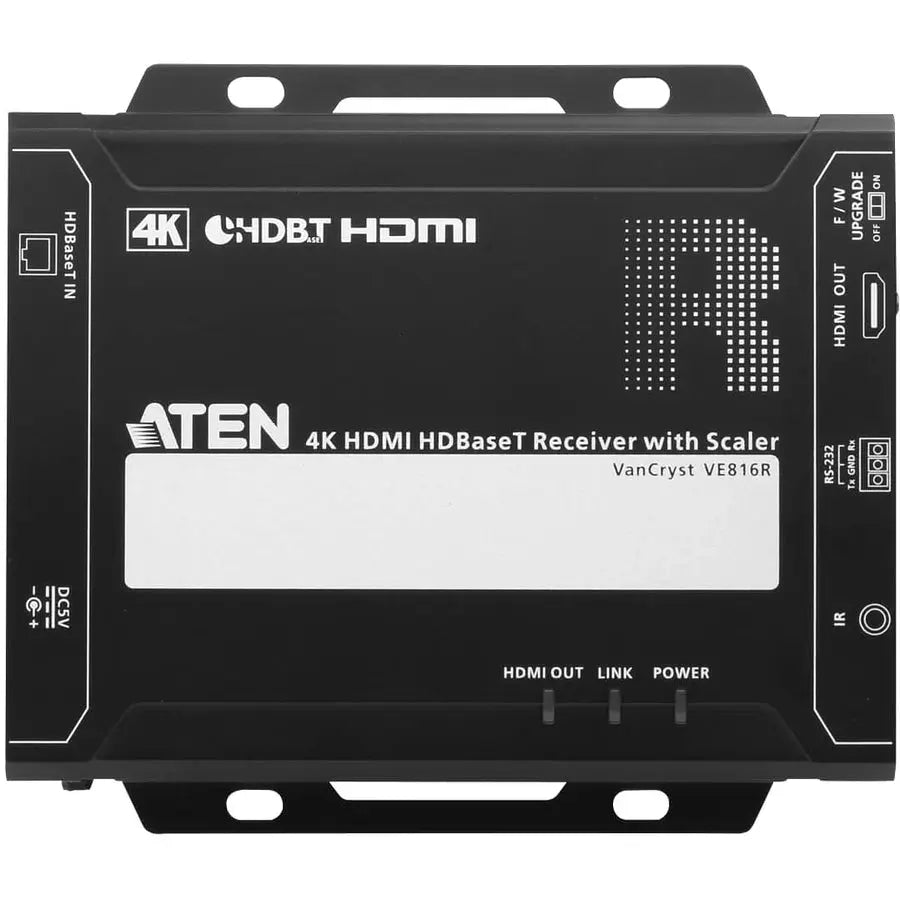

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler and Video Wall Support

ATEN 4K HDMI HDBaseT Receiver with Scaler-TAA Compliant

The ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is a versatile solution designed to extend high-resolution HDMI signals over long distances while maintaining optimal image quality. Compatible with ATEN HDBaseT Matrix Switches and Modular Matrix Switches, this receiver can transmit 4K video up to 100 meters and 1080p signals up to 150 meters over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Its advanced video scaling feature ensures that videos of different resolutions are converted to their best possible display output, preventing black screens and ensuring seamless visuals. The device supports HDCP 2.2, making it suitable for high-definition content distribution in professional AV installations.

The VE816R includes bi-directional RS-232 and IR pass-through channels, enabling remote control of connected devices, which is ideal for integrated AV environments. Its Frame Sync technology synchronizes video frames, ensuring smooth playback even when sources have varying refresh rates. The Long Reach Mode feature, activated via RS-232 commands, extends signals up to 150 meters at 1080p resolution, making it suitable for large venues or extensive installations. Additionally, the device supports video wall configurations through an intuitive web GUI, allowing custom screen layouts for dynamic display setups. The rack-mountable form factor and environmentally friendly design make it suitable for professional settings that require reliable, high-quality video extension solutions.

With a comprehensive package that includes IR transmitters, receivers, terminal blocks, and a power adapter, the VE816R is a complete solution for extending and controlling HDMI signals over long distances. Its robust build, along with a two-year limited warranty, ensures durability and long-term performance in demanding AV environments. Whether used for corporate presentations, digital signage, or home theater systems, the ATEN VE816R provides seamless switching, high-resolution scaling, and reliable signal extension to enhance your audio-visual experience.

Features:

• Seamless Switch™ - close-to-zero second switching for continuous video streams and real-time signal stability

• Video Wall - supports custom screen layouts via an intuitive web GUI

• Scaler - adjusts videos of varying resolutions to optimal display output

• Extends HDMI, RS-232, and IR signals up to 100 meters at 4K resolution

• HDBaseT Long Reach Mode - extends signals up to 150 meters at 1080p resolution via RS-232 activation

• Supports high-quality video up to 4K at 100 meters

• HDCP 2.2 compatible for secure high-definition content transmission

• Rack-mountable design suitable for professional AV installations

• Includes IR transmitters and receivers for remote device control

• Environmentally friendly with WEEE compliance and durable build for professional use
