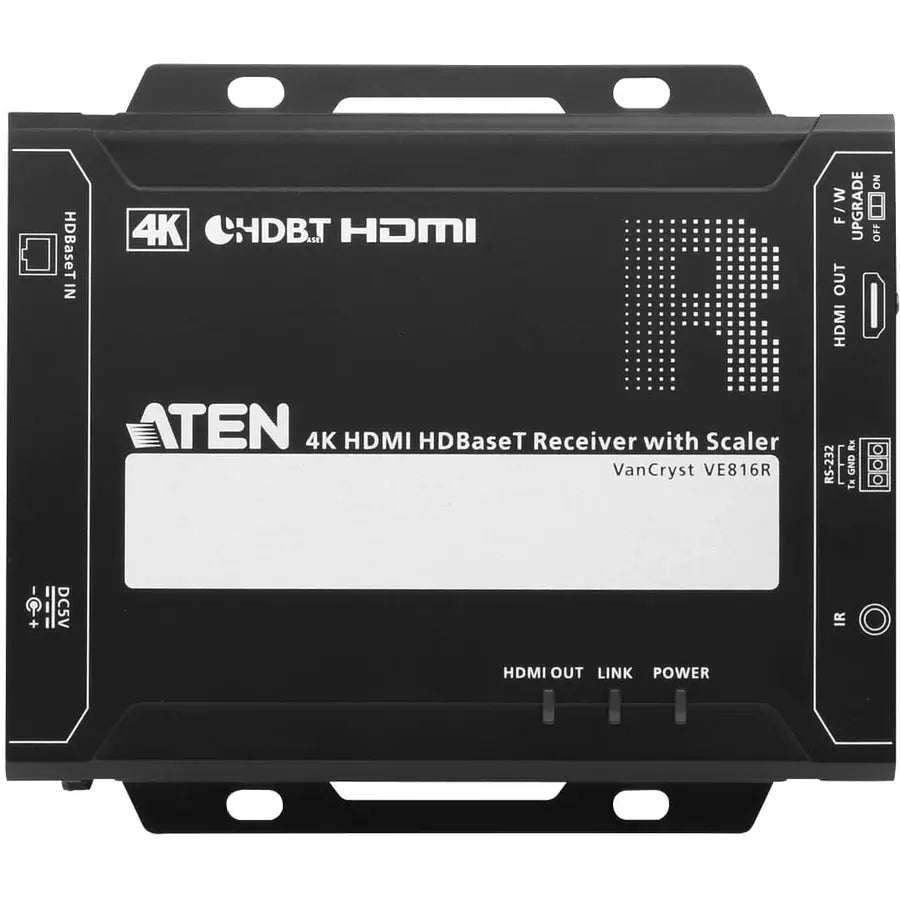

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler for Long-Distance Signal Extension and Video Wall Integration

ATEN 4K HDMI HDBaseT Receiver with Scaler-TAA Compliant

The ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is a versatile solution designed to extend high-quality 4K HDMI signals up to 100 meters over a single Cat 5e/6/6a cable, making it ideal for professional AV installations and digital signage. This rack-mountable device seamlessly integrates with ATEN HDBaseT Matrix Switches, providing reliable video transmission with support for resolutions up to 4K (3840x2160) at 60Hz. Its advanced scaling feature ensures videos of varying resolutions are displayed optimally, preventing black screens and ensuring consistent image quality across different display devices. Supporting HDCP 2.2, the VE816R guarantees compatibility with protected content, maintaining high security standards for digital media content.

Built with user convenience in mind, the VE816R offers bi-directional RS-232 and IR pass-through, allowing remote control of connected devices. The inclusion of Frame Sync technology ensures smooth video playback with minimal latency, even when switching between sources. Its Video Wall profile functionality enables custom multi-screen layouts via an intuitive web GUI, perfect for digital signage or large control rooms. The device also features HDBaseT Long Reach Mode, activated via RS-232 commands, extending signals up to 150 meters at 1080p resolution, making it suitable for large-scale installations where long cable runs are necessary.

Designed for professional environments, the VE816R supports seamless switching with near-instantaneous response times, ensuring continuous video streams during source transitions. Its superior video quality, combined with environmentally friendly design and compliance with WEEE standards, makes it both a reliable and eco-conscious choice. The package includes a power adapter, IR transmitters and receivers, terminal block, and user instructions, providing a complete setup for integrating high-definition AV signals into complex systems with ease. Whether used for conference rooms, digital signage, or broadcast environments, the ATEN VE816R delivers exceptional performance for demanding AV applications.

Features:

• Seamless Switch™ - close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmission

• Video Wall - customizable screen layouts via an intuitive web GUI

• Scaler - adjusts videos of different resolutions to optimal display output

• HDBaseT Long Reach Mode - extends signals up to 150 meters at 1080p, activated via RS-232 commands

• Supports 4K resolution up to 100 meters

• Supports 1080p resolution up to 150 meters

• Superior video quality with HDCP 2.2 compatibility

• Extends HDMI, RS-232, and IR signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable

• Rack-mountable form factor for professional AV installations

• Includes IR transmitters and receivers, terminal block, power adapter, and user instructions
