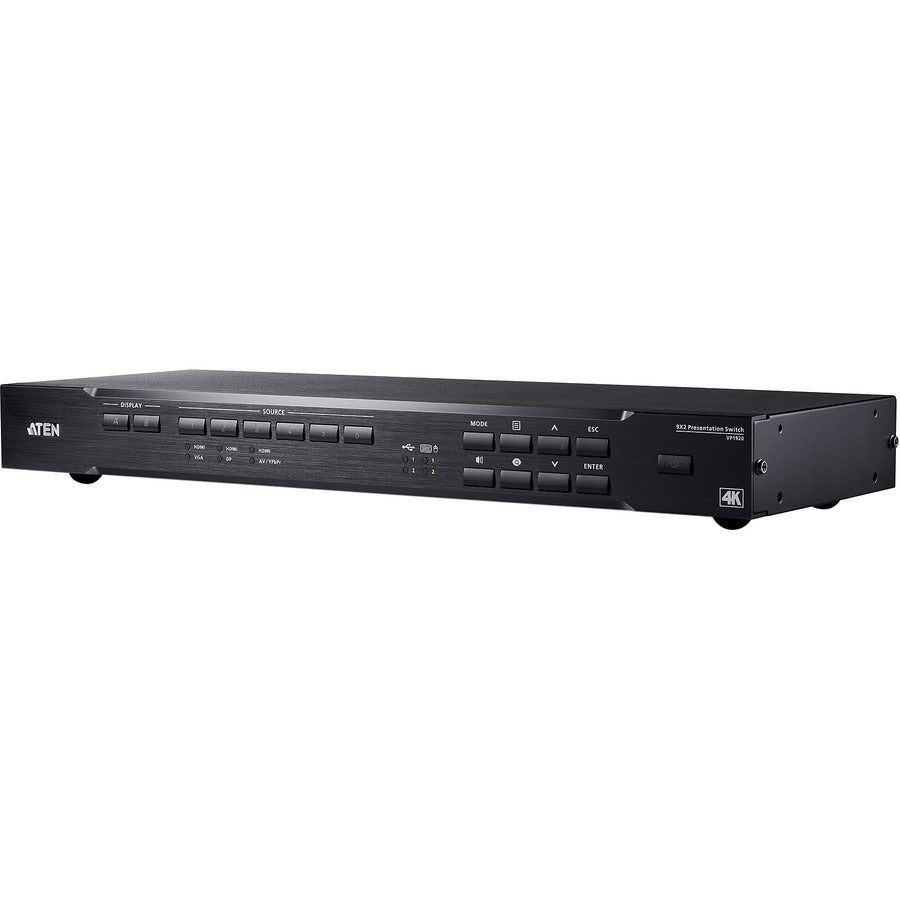

ATEN VP1920 9x2 4K Presentation Matrix Switch for Professional AV Environments

Aten 9 x 2 4K Presentation Matrix Switch-TAA Compliant

The ATEN VP1920 is a versatile 3-in-1 presentation switch designed to elevate your audiovisual presentations. It combines a video matrix switch, an audio processor, and an analog-to-digital converter, providing nine multi-format inputs and two HDMI 4K outputs to support high-resolution content. Ideal for small to medium-sized corporate, educational, and hospitality environments, this switch simplifies complex AV setups by consolidating multiple functions into a single desktop unit. Its intuitive control options include front panel pushbuttons, an IR remote, on-screen display (OSD), and RS-232, enabling flexible operation tailored to your preferences and existing infrastructure.

This device supports auto switching, which automatically detects and switches to a new source upon connection, saving time and reducing user intervention. It features multiple display modes—Matrix, Mirror, and Picture-in-Picture (PiP)—to meet various presentation needs. The source preview function allows quick identification and seamless switching between content sources, enhancing presentation flow. Built with HDMI (including 3D, Deep Color, 4K) and DisplayPort inputs, the VP1920 ensures compatibility with modern high-definition displays and supports HDCP 1.4 for secure content transmission.

The VP1920's EDID Expert™ technology intelligently selects the optimal EDID settings, ensuring high-quality video output and smooth power-up across all connected devices. It delivers exceptional video quality, supporting resolutions up to 4096 x 2160 at 60Hz (4:2:0) or 4096 x 2160 at 30Hz (4:4:4) via HDMI and DisplayPort. The switch also offers advanced audio features—embedding or de-embedding audio signals from HDMI and DisplayPort, including digital, analog, stereo, and composite/component formats—allowing comprehensive audio management within your presentation setup. Its VGA port supports various universal analog input formats such as RGBHV, RGBs, YCbCr, and YPbPr, ensuring compatibility with legacy equipment.

The package includes the VP1920 switch, power cord, IR receiver, remote control, and user instructions, all housed in a compact desktop form factor. With an approximate weight of 5.2 pounds, this device is suitable for desktop installation and easy integration into existing AV systems. Designed with environmental considerations, it complies with RoHS regulations, making it a responsible choice for professional AV applications. For more information, visit ATEN's website at http://www.aten.com/us/en/.

Features:

• Auto switching: automatically detects and switches to a new source upon connection, streamlining operation

• Selectable display modes: Matrix, Mirror, or PiP to adapt to different presentation formats

• Source preview: quickly identify and switch to target content with ease

• Multiple control methods: front-panel pushbuttons, RS-232, OSD, and IR remote for flexible operation

• High-definition support: HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant for secure high-quality video transmission

• EDID Expert™ technology: automatically optimizes EDID settings for superior display quality

• Exceptional video resolution: supports up to 4096 x 2160 at 60Hz (4:2:0) and 4096 x 2160 at 30Hz (4:4:4) via HDMI/DisplayPort

• Audio management: embed and de-embed HDMI/DisplayPort audio signals, including digital and analog formats

• VGA compatibility: supports universal analog input formats such as RGBHV, RGBs, YCbCr, and YPbPr

• Multi-format inputs and outputs: nine multi-format inputs and two HDMI outputs, including HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr combinations
