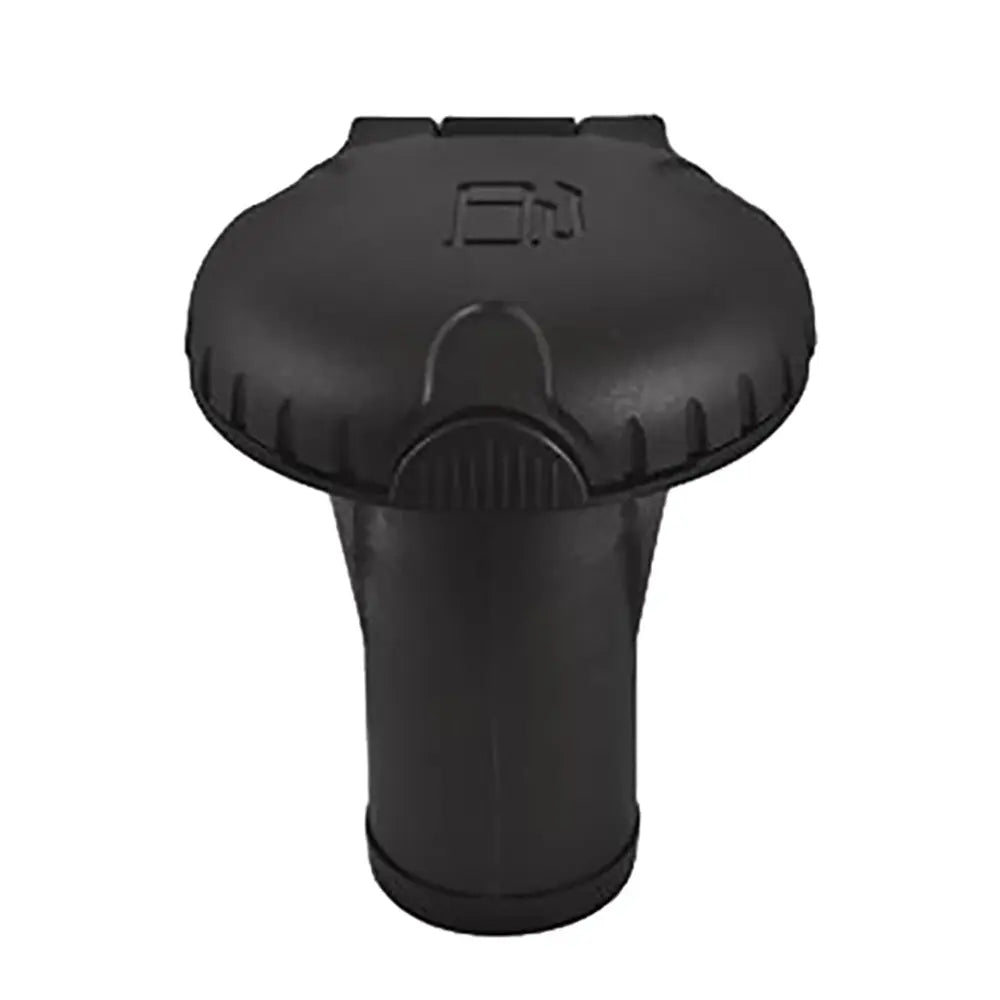

Attwood Marine 99DFPVSB1S Deck Fill for Pressure Relief Systems with Black Plastic Cap

Deck Fills for Pressure Relief Systems - Straight Body - Scalloped Black Plastic Cap

Attwood's Pressure Relief Systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Sold as a single unit
• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff 4-18 gpm
• Black Composite finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine 99DFPVSB1S deck fill is a vital component for pressure relief systems on boats, featuring a straight body design with a durable scalloped black plastic cap. Engineered for reliable performance, this deck fill fits 1-1/2 inch fill hoses and 5/8 inch vent hoses, ensuring seamless integration with your marine fuel system. Its robust construction and precise engineering help maintain proper fuel levels while preventing water ingress, which is critical for engine safety and efficiency. The high-flow vacuum valves facilitate optimal airflow, supporting high horsepower applications and preventing fuel spit-back or well-back during refueling. Safety features include dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap, which automatically release excess pressure to guard against overpressure situations. The design also incorporates an automatic nozzle shutoff capable of delivering 4-18 gallons per minute, making refueling safer and more efficient. The black composite finish provides durability and resistance to marine environments, ensuring longevity even in harsh conditions. This deck fill is an essential component of VaporTec and SecureStop systems, confirming its compatibility with advanced vapor management solutions. Certified by EPA and CARB, it meets strict emission standards, and its hinged audible click cap complies with EPA regulations, providing an audible confirmation during fueling. Additionally, the part is designed and tested to prevent water from entering the fuel system, safeguarding your boat’s engine and fuel integrity. Whether refueling with ethanol-blended fuels or standard gasoline, the Attwood Marine deck fill guarantees safety, performance, and compliance in marine fueling applications.

Features:

• Sold as a single unit for easy installation

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose for versatility

• Triple high-flow vacuum valves ensure maximum make-up airflow, suitable for high horsepower applications

• Dual 1 psi diurnal emission control and overpressure relief safety valves integrated into the cap

• Automatic nozzle shutoff capable of delivering 4-18 gallons per minute for efficient fueling

• Black composite finish enhances durability and resistance to marine conditions

• Compatible with VaporTec and SecureStop vapor management systems

• Designed and tested to prevent water from entering the fuel system, maintaining fuel integrity

• EPA and CARB certified to meet strict environmental standards

• Hinged audible click cap ensures compliance with EPA fueling regulations

• Meets ISO 13331 nozzle mating and retention standards for secure fueling
