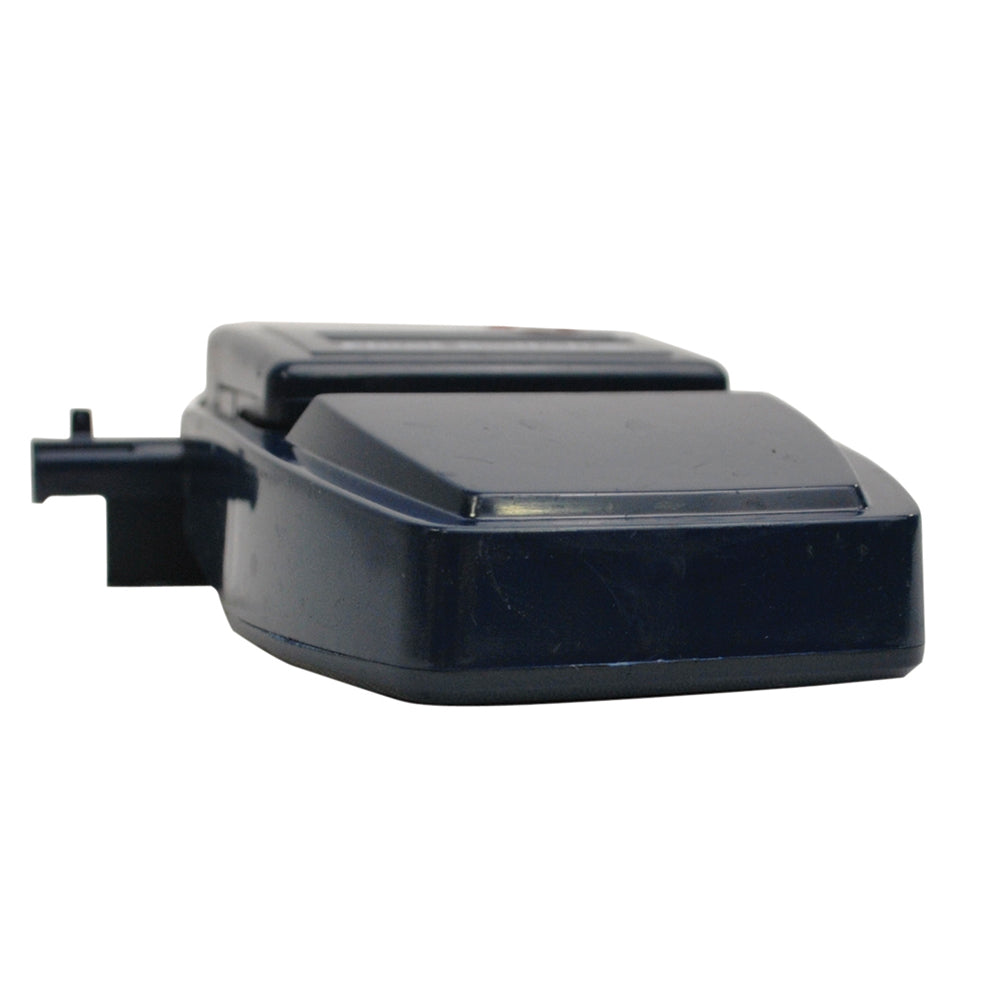

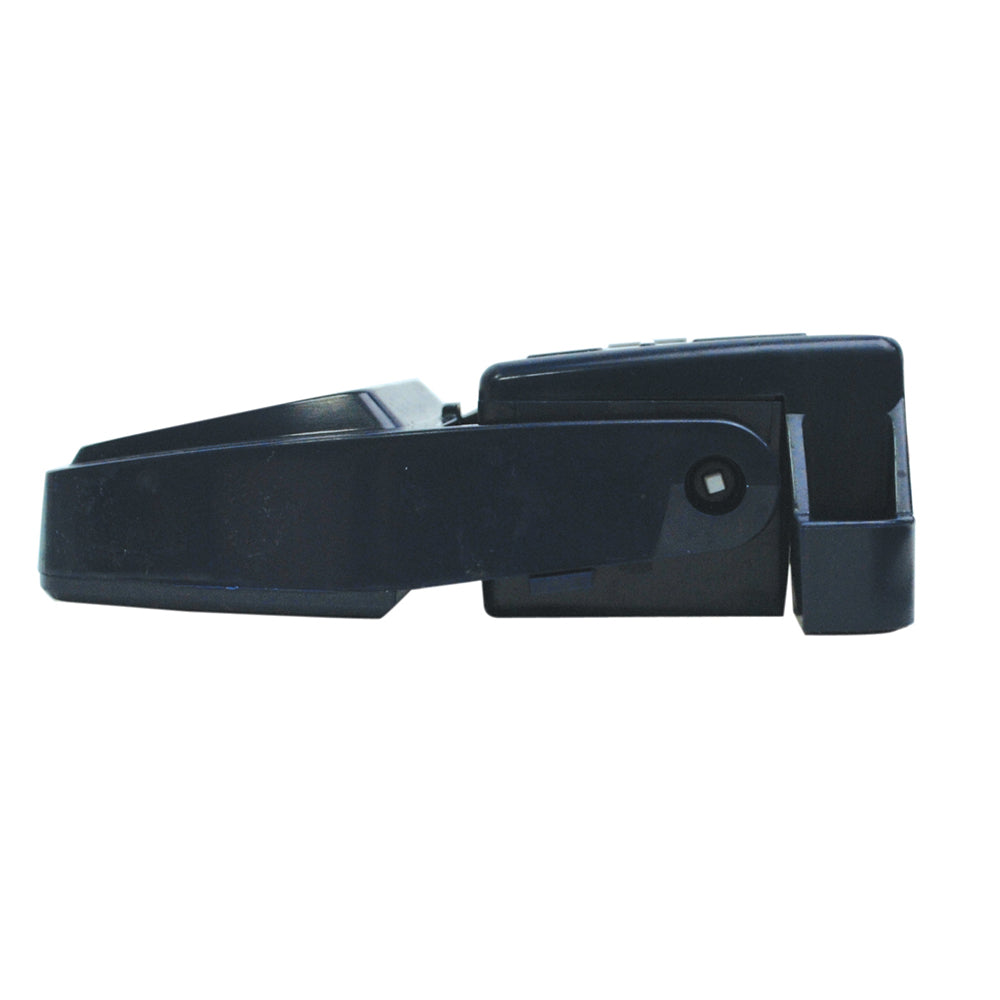

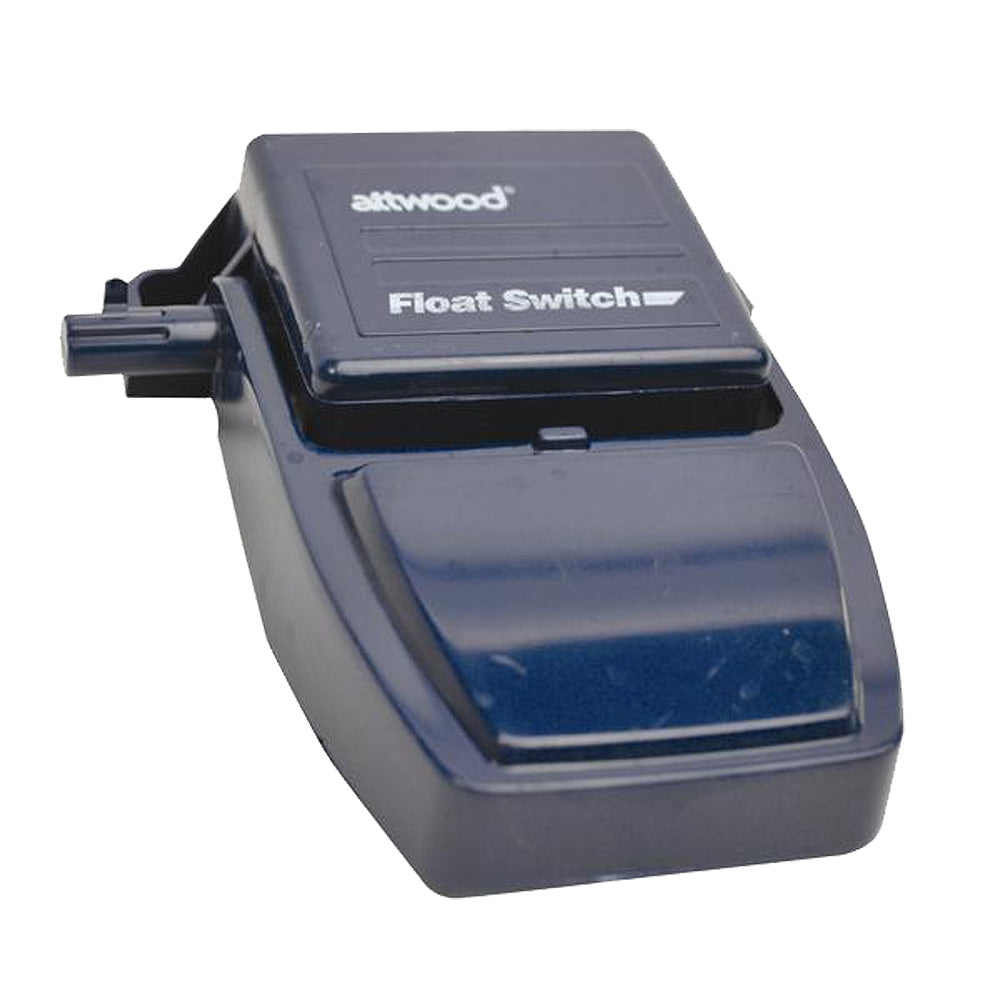

Attwood Marine Automatic Float Switch for 12V & 24V Bilge Pumps (Part #4202-7)

Float Switch
Part #: 4202-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

Float switch installs directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

• 36" Wire

• 12V & 24V

• CE Rated

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Attwood Marine Automatic Float Switch (Part #4202-7) is an essential component for converting your bilge pump into a fully automatic system. Designed with a compact and low-profile form factor, this switch can be mounted on any surface at angles up to 24 degrees, providing versatile installation options. It features a reliable mechanical switch that activates the pump at a 2-inch water level, ensuring effective bilge management. The switch's sealed mechanism resists moisture, fumes, and electrical shocks, making it suitable for marine environments. Wire leads are designed to remain flexible without hinge stress, contributing to long-term durability. An integral cover minimizes bilge sloshing, reducing unnecessary pump cycling and debris interference, which enhances overall pump performance. This switch supports both 12-volt and 24-volt systems with a maximum current draw of 12 amps at 12 volts and 6 amps at 24 volts, making it compatible with a variety of bilge pumps. The inclusion of a test knob allows for straightforward testing of pump operation, facilitating maintenance and troubleshooting. Constructed without mercury, it adheres to health and environmental safety standards, and is CE rated for quality assurance. Suitable for marine applications, this float switch is an economical and reliable solution for automatic bilge pump control, helping to prevent flooding and maintain vessel safety.

Features:

• 36-inch wire leads for flexible installation

• Compatible with 12V and 24V electrical systems

• CE rated for safety and quality
