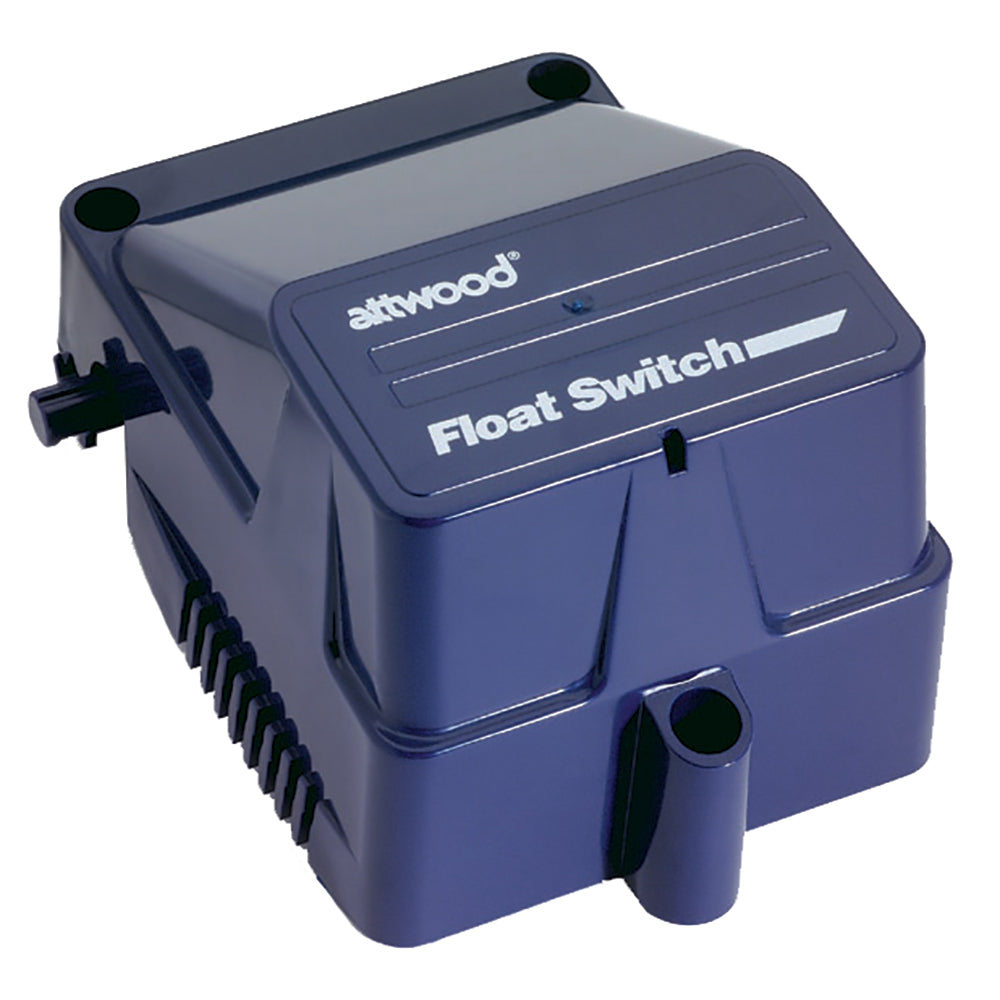

Attwood Marine Automatic Float Switch with Cover for 12V & 24V Systems

Float Switch w/Cover
Part #: 4201-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24" angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

Float switch installs independently or directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

• 36" Wire

• 12V and 24V

• CE Rated

• Includes Cover

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Attwood Marine Automatic Float Switch Part #: 4201-7 provides a reliable and convenient solution for converting bilge pumps to fully automatic operation. Designed with a compact, low-profile form factor, this switch can be mounted on any surface at an angle up to 24 degrees, making installation versatile and straightforward. The mechanical switch inside is engineered for durability and consistent performance, activating the pump motor at a water level of approximately 2 inches to prevent flooding or water damage. Its sealed mechanism ensures resistance to moisture, fumes, and electrical shocks, enhancing safety and longevity in marine environments. The integral cover helps dampen bilge sloshing, reducing unnecessary pump cycling and debris interference, which can prolong the lifespan of your bilge pump system. Featuring a 36-inch wire lead, this switch supports both 12V and 24V systems, making it suitable for a wide range of marine applications. The inclusion of a test knob allows for easy verification of pump operation, providing peace of mind during maintenance or troubleshooting. The switch is CE rated, ensuring compliance with European safety standards, and is free of mercury, aligning with health and environmental safety regulations. Installation can be performed independently or directly onto the rear slots of V-Series pump brackets, offering flexibility to suit your setup. Whether for new installations or upgrades, this float switch offers dependable performance with minimal maintenance, safeguarding your vessel against water-related issues.

Features:

• 36-inch wire lead for flexible installation

• Operates on 12V and 24V DC systems

• CE rated for safety compliance

• Includes a protective cover to reduce debris interference

• Sealed switch mechanism resists moisture and electrical shocks

• Reliable mechanical switch activates at 2-inch water level

• Compact low-profile design for versatile mounting options

• Convenient test knob for easy pump operation verification

• Mounts on surfaces angled up to 24 degrees

• Mercury-free design for safety and environmental compliance
