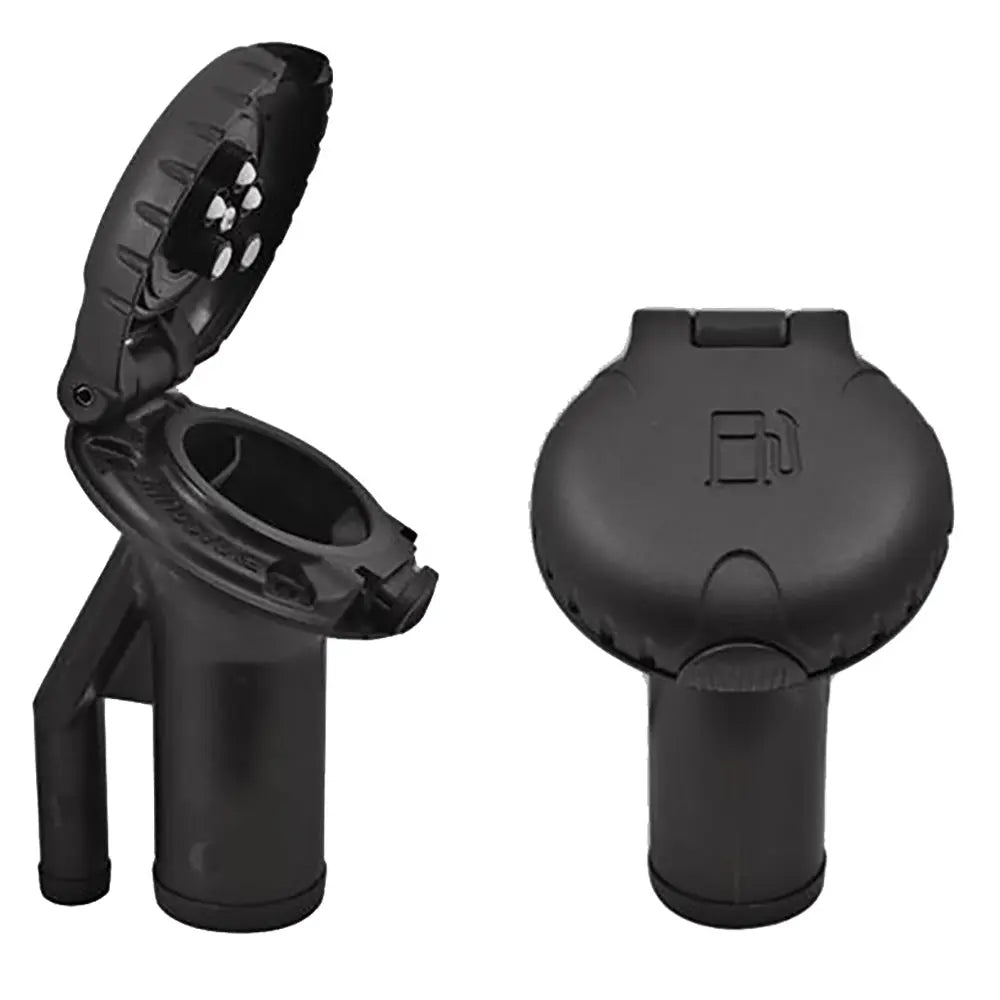

Attwood Marine Deck Fill for Pressure Relief Systems - Angled Body with Scalloped Black Plastic Cap

Deck Fill for Pressure Relief Systems - Angled Body Scalloped Black Plastic Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff 4-18 gpm
• Black Composite finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine Deck Fill with angled body and scalloped black plastic cap is an essential component for pressure relief systems on fuel tanks. Designed to ensure safe and efficient operation, this fill is compatible with 1-1/2 inch fill hoses and 5/8 inch vent hoses. Its high-flow vacuum valves facilitate maximum airflow, which is particularly beneficial for high horsepower applications, helping to maintain proper fuel system pressure and prevent vapor lock. The dual 1 psi diurnal emission control and overpressure relief safety valves integrated into the cap provide reliable pressure regulation, releasing excess pressure above 1 psi to safeguard the system. This feature ensures compliance with safety standards and prevents potential overpressure damage while maintaining environmental compliance.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves ensure maximum make-up airflow

• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap

• Automatic nozzle shutoff from 4 to 18 gallons per minute

• Black composite finish for durability and corrosion resistance

• An essential component of VaporTec and SecureStop systems

• Designed and tested to prevent water from entering the fuel system

• EPA and CARB certified for environmental compliance

• Hinged audible click cap meets EPA requirements

• Meets CARB 13 CCR 2235 and ISO 13331 standards for nozzle mating and retention

• Compatible with ethanol-blended fuels for versatile use
