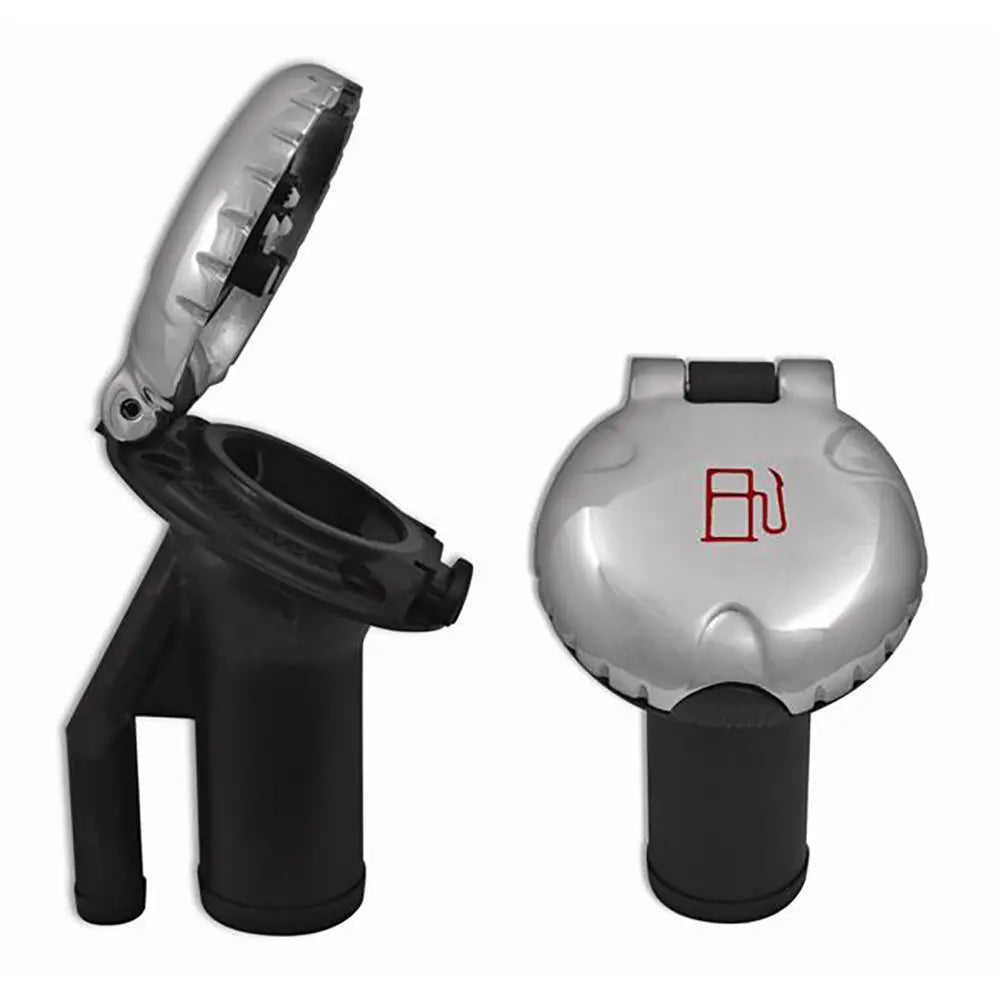

Attwood Marine Deck Fill for Pressure Relief Systems with Angled Body & Scalloped Stainless Steel Cap

Deck Fill for Pressure Relief Systems - Angled Body Scalloped Stainless Steel Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
• Automatic nozzle shutoff 4-18 gpm
• Stainless Steel finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine Deck Fill (Part Number: 99DFPVAS1S) is a critical component designed to ensure safe and efficient fueling for marine applications. Crafted with a durable stainless steel finish, this deck fill features an angled body and a scalloped cap, providing a reliable seal and ease of use in tight spaces. Its robust construction and precise engineering make it suitable for high-performance environments where safety and functionality are paramount. The deck fill is compatible with 1-1/2 inch fill hoses and 5/8 inch vent hoses, making it versatile for various marine fuel systems. Its design incorporates triple high-flow vacuum valves that maximize airflow, accommodating high horsepower engines while preventing fuel spit-back and well-back during refueling. The dual 1 psi diurnal emission control and overpressure relief safety valves integrated into the cap are engineered to release pressure above 1 psi, ensuring safety during fuel transfer. This system is built to prevent water entry into the fuel tank, maintaining fuel integrity and preventing contamination. The automatic nozzle shutoff, capable of handling flow rates between 4-18 gallons per minute, simplifies the fueling process and minimizes overfilling risks. Certified by EPA and CARB, this deck fill meets strict environmental standards, including CARB 13 CCR 2235 and ISO 13331 standards, making it compliant with regulatory requirements. The hinged audible click cap not only meets EPA regulations but also provides a secure closure, reducing the risk of fuel spills. Designed for compatibility with ethanol-blended fuels, the Attwood Marine deck fill is an essential upgrade for ensuring safe, compliant, and efficient marine fueling operations, especially in applications requiring vapor control and overpressure safety measures.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)

• Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap

• Automatic nozzle shutoff with flow rate between 4-18 gallons per minute

• Stainless steel finish for durability and corrosion resistance

• Part of VaporTec and SecureStop systems for vapor and safety control

• Designed to prevent water entry into the fuel system

• EPA and CARB certified for environmental compliance

• Hinged audible click cap meets EPA requirements

• Meets CARB 13 CCR 2235 and ISO 13331 standards for nozzle mating and retention

• Compatible with ethanol blended fuels
