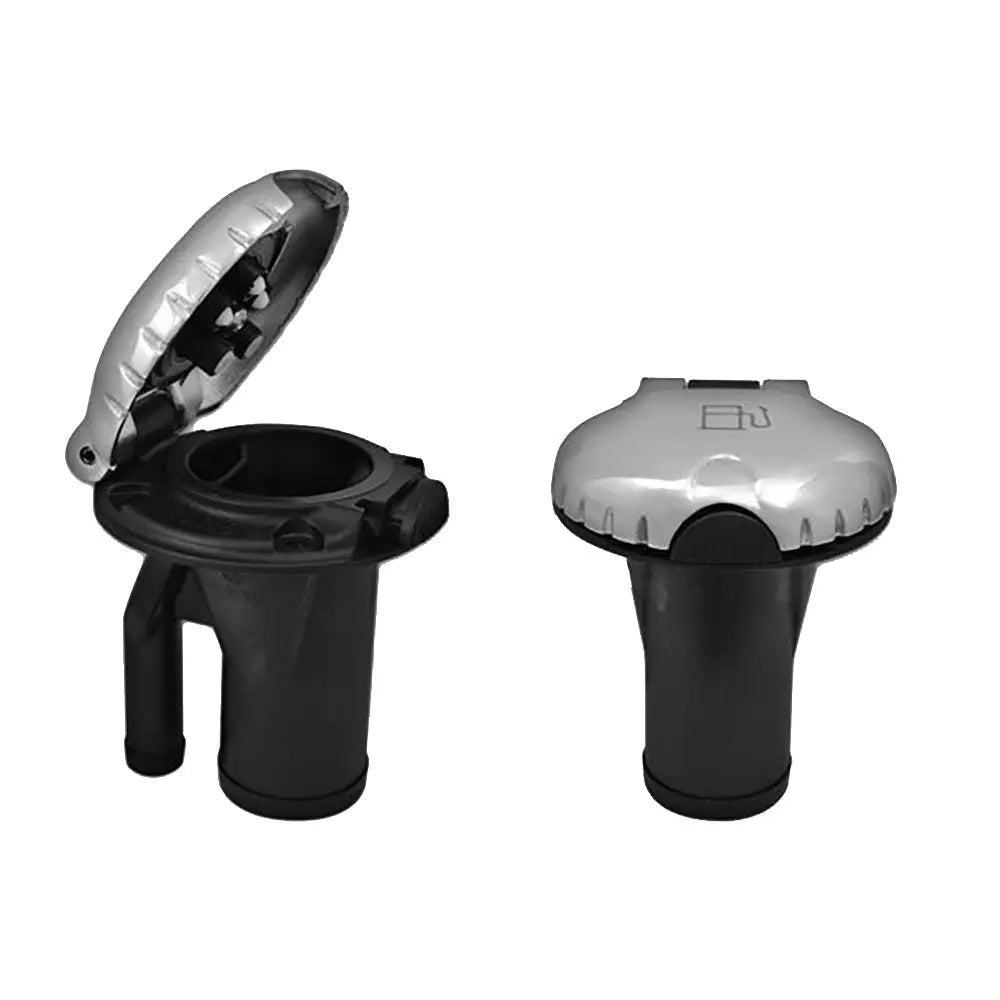

Attwood Marine Deck Fill for Pressure Relief Systems with Straight Body and Stainless Steel Cap (Part 99DFPVSS1S)

Deck Fill for Pressure Relief Systems - Straight Body Scalloped Stainless Steel Cap

Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.

Features:

• Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
• Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
• Automatic nozzle shutoff 4-18 gpm
• Stainless Steel finish
• An essential component of VaporTec and SecureStop
• Designed and tested to prevent water from entering the fuel system
• EPA / CARB Certified
• Hinged audible click cap meets EPA requirements
• Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards

*Compatible with Ethanol blended fuels

The Attwood Marine Deck Fill for Pressure Relief Systems features a straight body design with a scalloped stainless steel cap, ensuring durability and corrosion resistance in marine environments. This deck fill assembly is engineered to integrate seamlessly with pressure relief systems, providing a reliable seal that prevents water ingress and maintains proper fuel tank ventilation. Designed for easy installation, it fits standard 1-1/2 inch fill hoses and 5/8 inch vent hoses. The high-flow vacuum valves, capable of handling high horsepower applications, ensure maximum airflow to the fuel tank, promoting efficient fuel consumption and preventing spit-back or well-back during refueling. The unit's automatic nozzle shutoff with a flow rate of 4-18 gallons per minute enhances safety and reduces spills during fueling operations. The stainless steel finish not only offers excellent corrosion resistance but also ensures long-term performance in harsh marine conditions. This component is a critical part of VaporTec and SecureStop systems, contributing to safe and efficient fuel management for boats and other marine vessels. It is designed and tested to prevent water entry into the fuel system, helping to preserve fuel quality and system integrity. The deck fill meets EPA and CARB certification standards, including CARB 13 CCR 2235 and ISO 13331, ensuring compliance with environmental and safety regulations. The hinged audible click cap meets EPA requirements, providing visual and auditory confirmation of proper closure. Compatible with ethanol-blended fuels, this deck fill enhances versatility and environmental compliance. Whether used for new installations or replacements, it offers a durable, high-performance solution for marine fuel systems.

Features:

• Fits 1-1/2 inch fill hose and 5/8 inch vent hose

• Triple high-flow vacuum valves ensure maximum make-up airflow for high horsepower applications

• Automatic nozzle shutoff with flow rate of 4-18 gallons per minute

• Stainless steel finish providing corrosion resistance and durability

• Essential component of VaporTec and SecureStop systems

• Designed and tested to prevent water from entering the fuel system

• EPA and CARB certified for environmental compliance

• Hinged audible click cap meets EPA requirements

• Meets CARB 13 CCR 2235 and ISO 13331 standards for nozzle mating and retention

• Compatible with ethanol-blended fuels for versatile use
